Sigfox Smart Building COMFORT - Guide utilisateur / User guide version V1.0.1

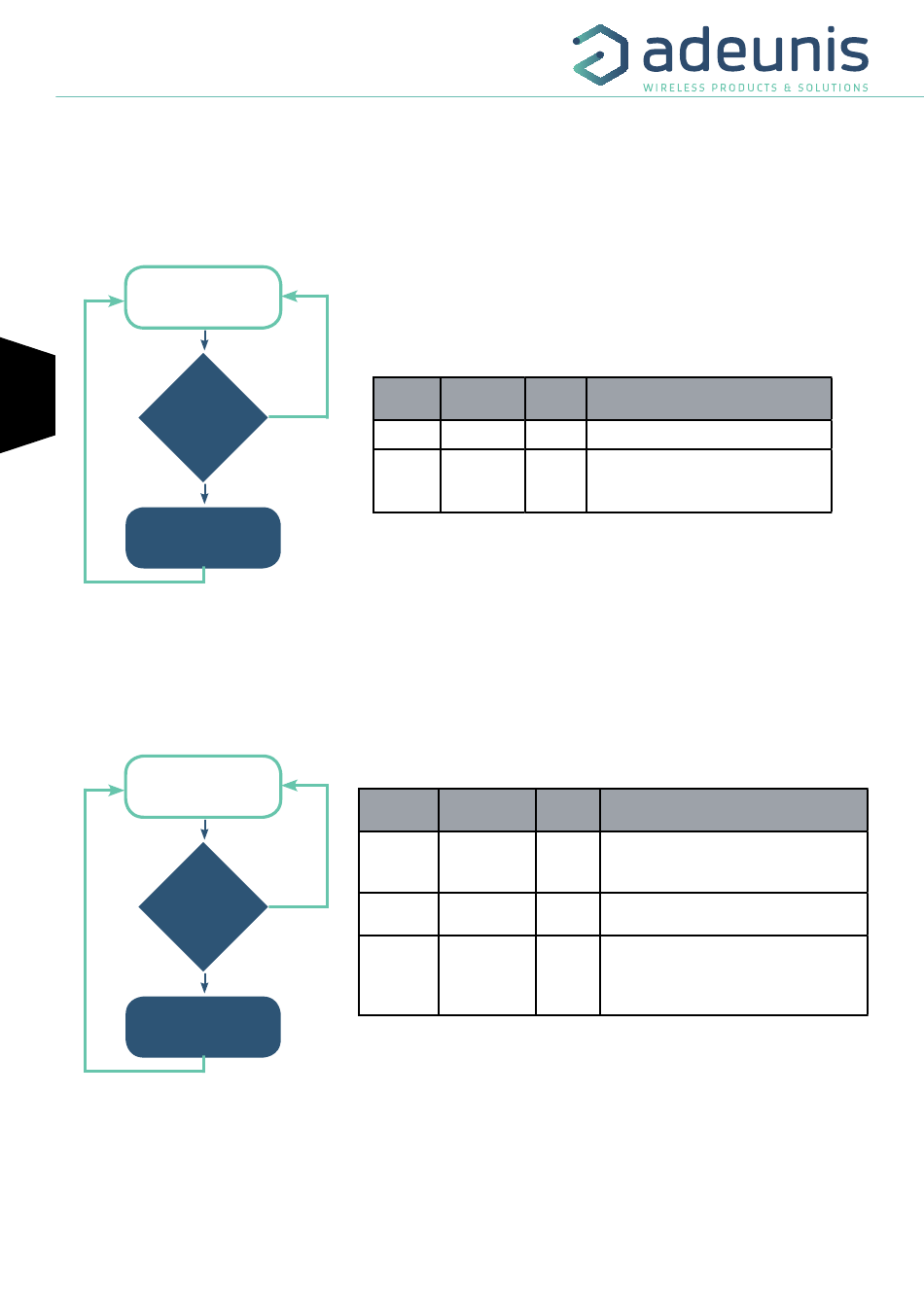

2.1.6 Transmitting the Keep Alive frame

If the device does not have periodic data configured, and no threshold is exceeded, it may not transmit data for a long time. So, to be sure that
the device is working properly, it transmits a Keep Alive frame (0x30) according to a determined frequency (S300)
The parameters associated with this operating mode is the setting of the transmission period of the Keep Alive frame (register 300). The com-
plete list of registers can be found in paragraph 3.4.
FR
Product in standby
EN
Period
reached?
Sen frame 0x30

2.1.7 Digital Input alarm(s)

The device incorporates two digital inputs, one through the connected button and one via the terminal block, both for detecting a change in up
and down state.
The device allows the sending of a frame following a change of state on one of its inputs according to the following diagram:
Product in standby
State
change on
digital input
Send frame 0x51
or 0x52
No
Yes
Example :
S380
No
S381
(s)?
S382
Yes
* Debounce time: minimum time to take account of a change of state. For example, if this period is
10 ms all pulses (high or low level) whose duration is less than 10 ms will not be considered. This
technique avoids potential rebounds during a change of state.
In this example the device:
• The device has a debounce time of 100ms and the button press alarm is enabled (regis-
ter 380).
• The device sends a frame for each button press (register 381)
• The alarm via the terminal block is disabled (register 382)
DISTRIBUTED BY TEXIM EUROPE
The complete list of registers can be found in paragraph 3.4..
E.g.: I want a Keep Alive frame sent to me every 24 hours
Register Value Value
encoding
S301 Decimal 0
S300 Decimal 8640
Register Value encod-
ing
Hexadecimal 0x41
Decimal 1
Hexadecimal 0x0
Result
Disabling periodic sending
8640x10 = 86 400 seconds or 1440
minutes or 24 hours
Value Result
Configuration of the Digital Input 1 (button):
• Detection of high edges
• Debounce time* 100ms
The device sends a frame every time the
button is enabled
Configuration of the Digital Input 2 input
(terminal block):
• Disabled
• No debounce time
Page 60 of 85
