2.1.5.02 Sending on exceeding threshold

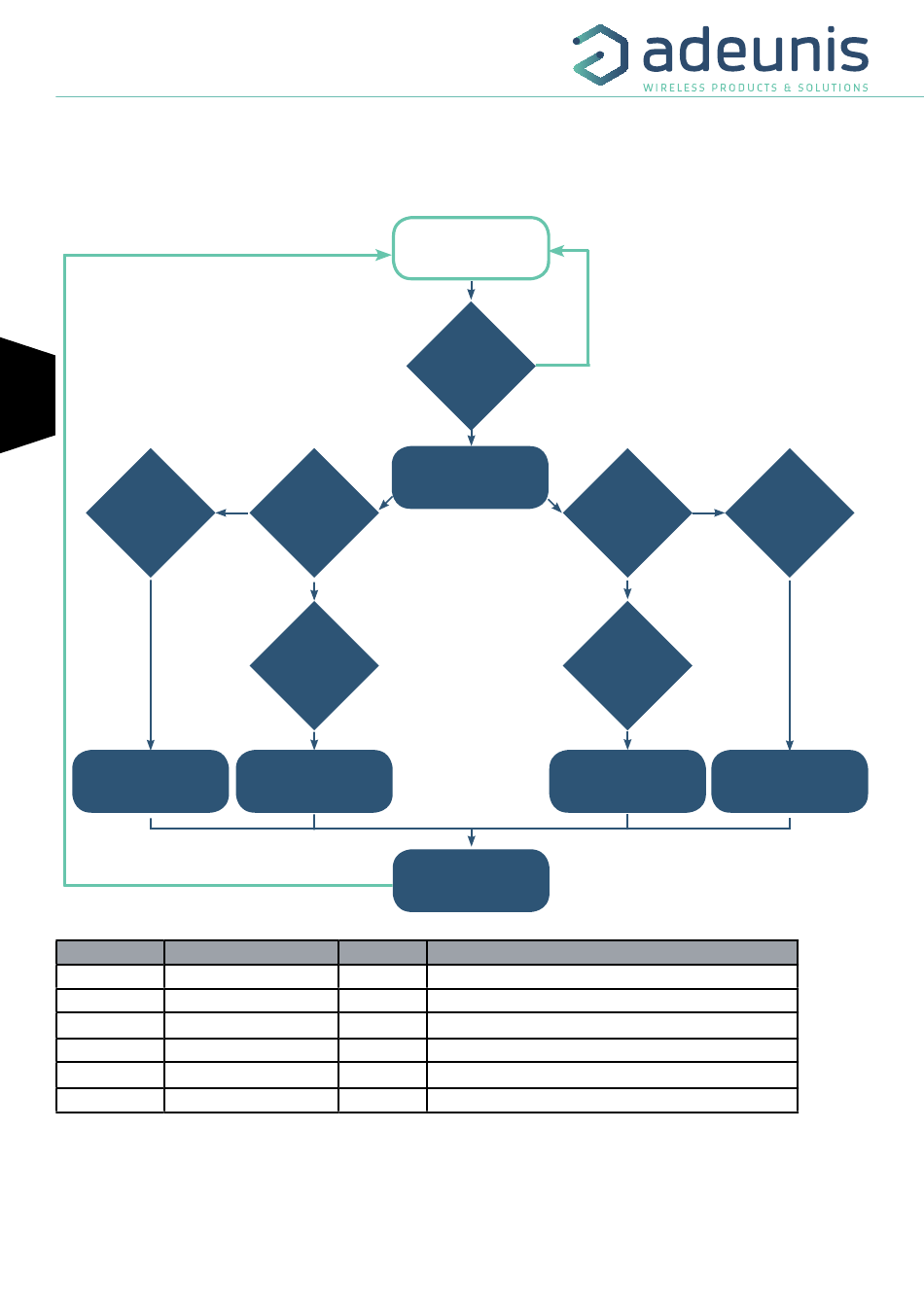

The device allows detection of exceeding threshold (high and low) for each sensor according to the following schema: The device sends a data
frame when a threshold is exceeded but also when returning to normal.
E.g.:
FR
EN
Value
< (high
threshold -)
YES
High alarm off
Register Value encoding
S301 Decimal
S321 Decimal
S330 Decimal
S331 Decimal
S332 Decimal
S340 Decimal
In this example:
• The device takes temperature and humidity every 10 minutes
• The device will trigger an alarm if the temperature is above 24°C, no alarm indicated for humidity
• The alarm will be disabled if the temperature drops below 22°C
NOTE: As described in 2.1.5 it is possible to combine the periodic mode and the alarm mode.
NO
High alarm
off?
YES
Value >
High thresh-
old
YES
High alarm on
Value
0
300
2
240
20
0
