9 Maintenance and cleaning
9.1 iSTM Cleaning the ABIROB
1 Covering ring
2 2 set screws

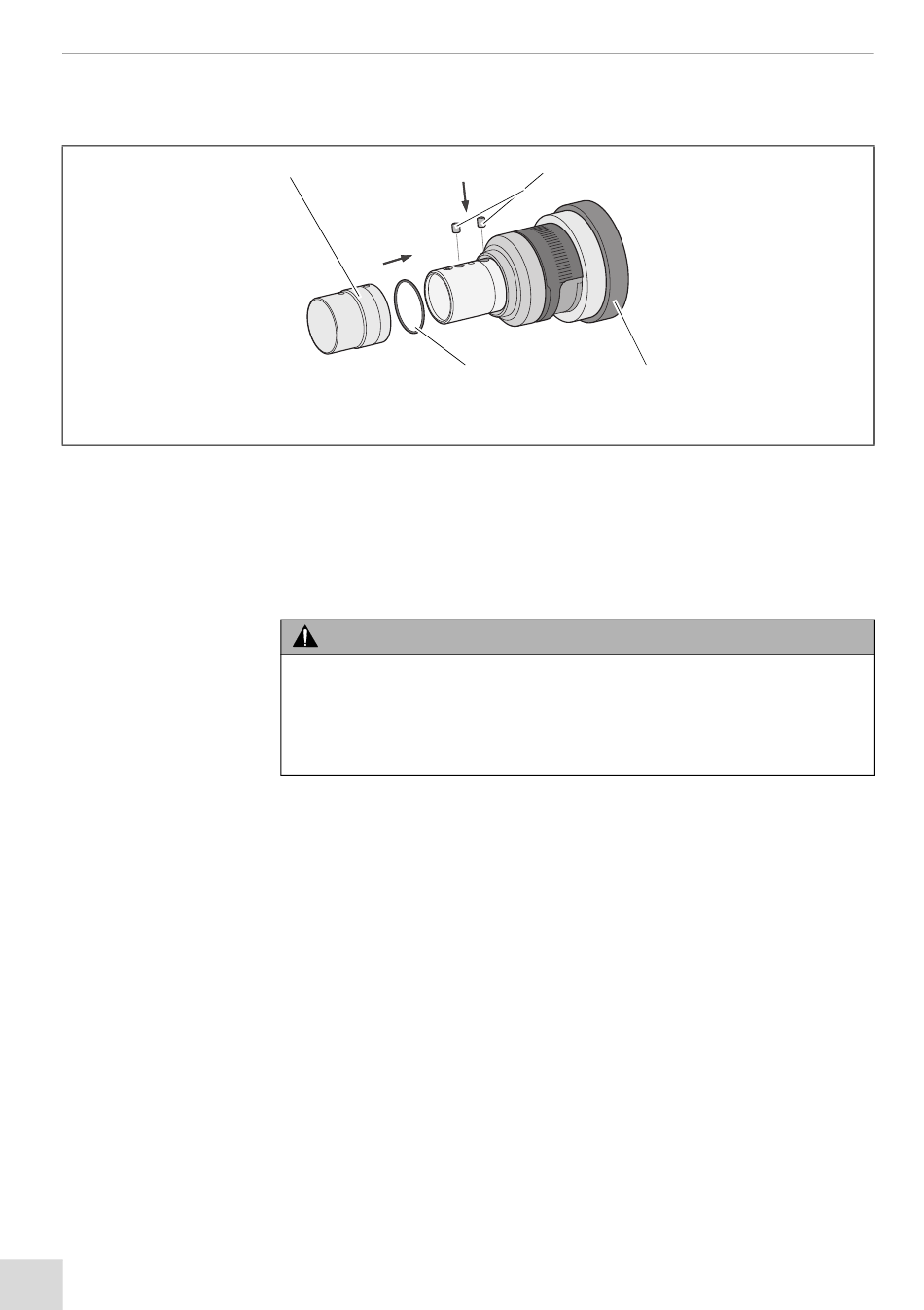

Abb. 10 iSTM Cleaning the ABIROB
EN - 18
®
A
1
®
3 ABIROB A iSTM mount
®
A
1 Clean the ABIROB
2 Turn the covering ring (1) to the right as far as it will go and remove it.
3 Check the O-ring (4) for wear and replace it if necessary.
WARNING
Risk of injury
Serious injuries caused by parts swirling around.
• When cleaning with compressed air, wear suitable protective clothing, in
particular safety goggles.
4 Clean the bores of the set screws (2) with compressed air.
5 Check the set screws (2) for wear and replace them if necessary.
6 Grease the O-rings (4) with sealing grease (included in the scope of
delivery).
7 Mount the set screws (2), O-ring (4) and covering ring (1).
2
4
4
®
A (3)iSTM mount with compressed air.
3
O-ring
iSTM
