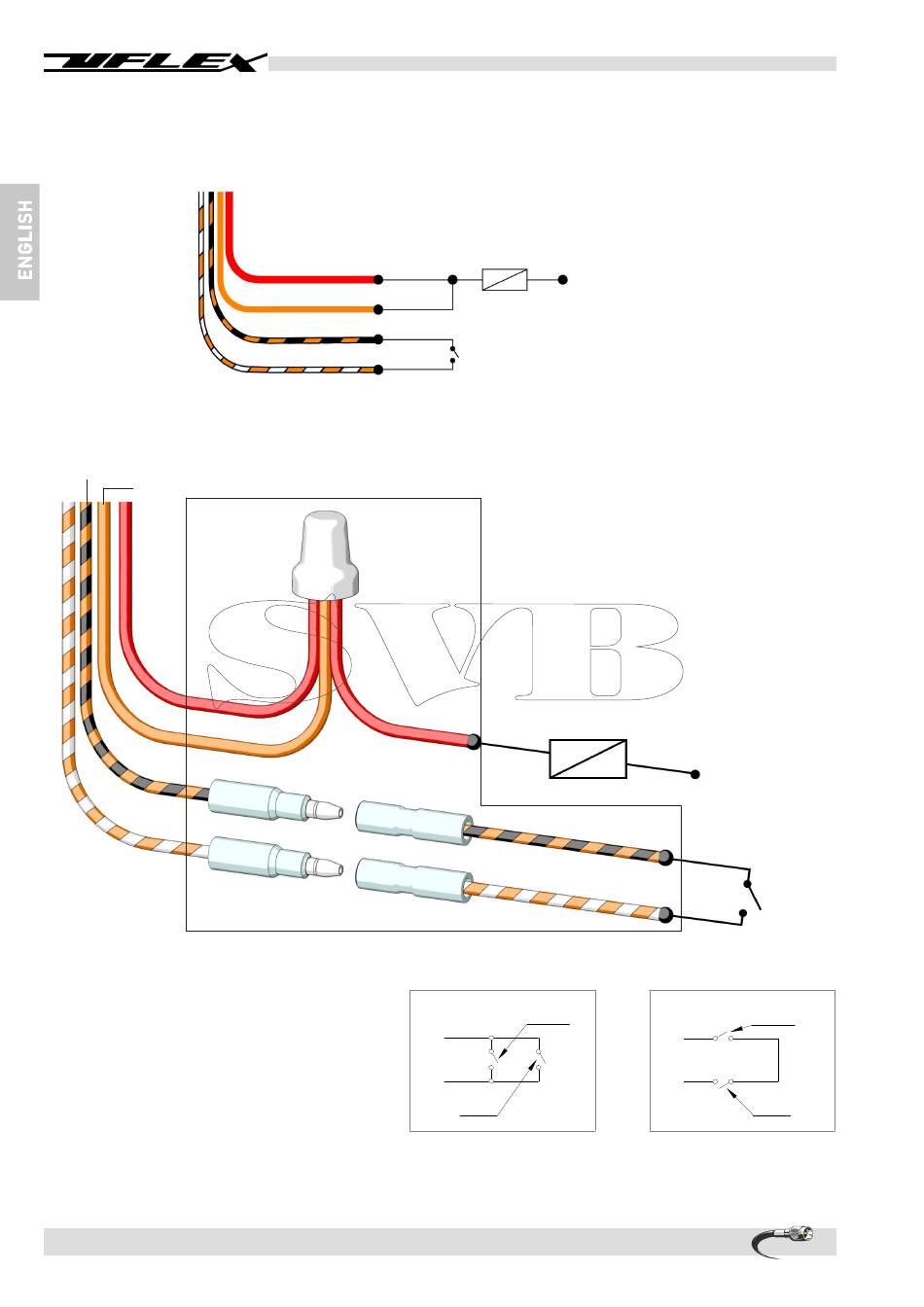

Neutral safety switch:
Single engine
THE FOLLOWING WIRING KIT CAN BE USED
Single engine
BLACK/ORANGE - AWG 18
ORANGE - AWG 18
RED
- AWG 14
WHITE/ORANGE - AWG 18
In case of twin engine boats with two different
neutral safety switches, the auto line-up can be
enabled in two different ways:
A. The auto line-up is enabled when at least
one of the two engines has not been put
into gear
B. The auto line-up is enabled when both
engines have not been put into gear
If the neutral safety switch has already been
enabled, please contact the technical assistance
service.
page 20
of 79 -
ELECTROMECHANICAL TRIM TABS
RED - AWG 14
ORANGE- AWG 18
BLACK/ORANGE - AWG 18
WHITE/ORANGE - AWG 18
A
Installation and maintenance manual
15A MAGNETO-THERMAL SWITCH
WHICH CAN BE MANUALLY RESET
(NOT SUPPLIED)
è
+12V (POWER POSITIVE WIRE)
NEUTRAL SAFETY SWITCH
KIT 42377N
(OPTIONAL)
15A MAGNETO-THERMAL SWITCH
WHICH CAN BE MANUALLY RESET
(NOT SUPPLIED)
Twin engine
NSAF
Port NSAF
Sinistro
Starboard
NSAF
NSAF
Destro
+12V (POWER POSITIVE WIRE)
NEUTRAL
SAFETY
SWITCH
B
NSAF
Port NSAF
Sinistro
Starboard
NSAF
Destro NSAF
