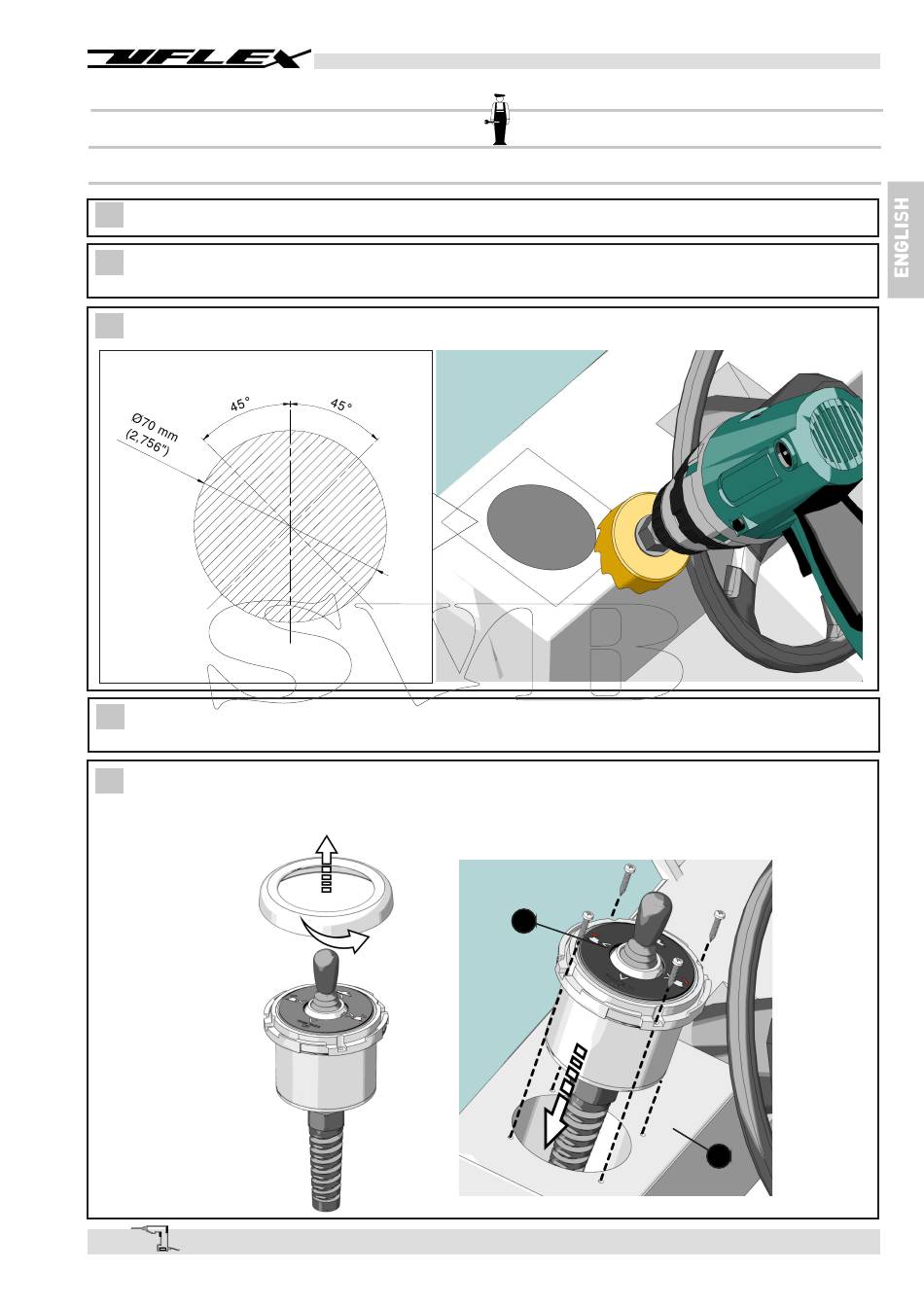

3.3 Easy-Joy control installation

3.3 .1 Easy-Joy control positioning

1 Position the control panel so that it does not hinder other controls or that it is not hindered by them.
2 Refer to the overall dimensions indicated in paragraph 1.4 to make sure the Easy-Joy
installed in the chosen position.
3 After choosing the right position, make the hole to insert the control panel with the suitable template.
4 Before fixing the Easy-joy Easy-joy Easy-joy Easy-joy to the dashboard, connect the electric cables following the instructions of Easy-joy
chapter 5.
5 Unscrew the chromium plated ring nut counterclockwise, insert the joystick in its seat on the
dashboard and, by means of the four self-tapping screws (I I I I I ), insert the chromium plated ring nut
completely and turn it clockwise until it is properly locked.
PRUA
BOW
POPPA
STERN
Installation and maintenance manual
1 1 1 1 1
ELECTROMECHANICAL TRIM TABS
Easy-Joy Easy-Joy panel can be Easy-Joy
Easy-Joy
2 2 2 2 2
