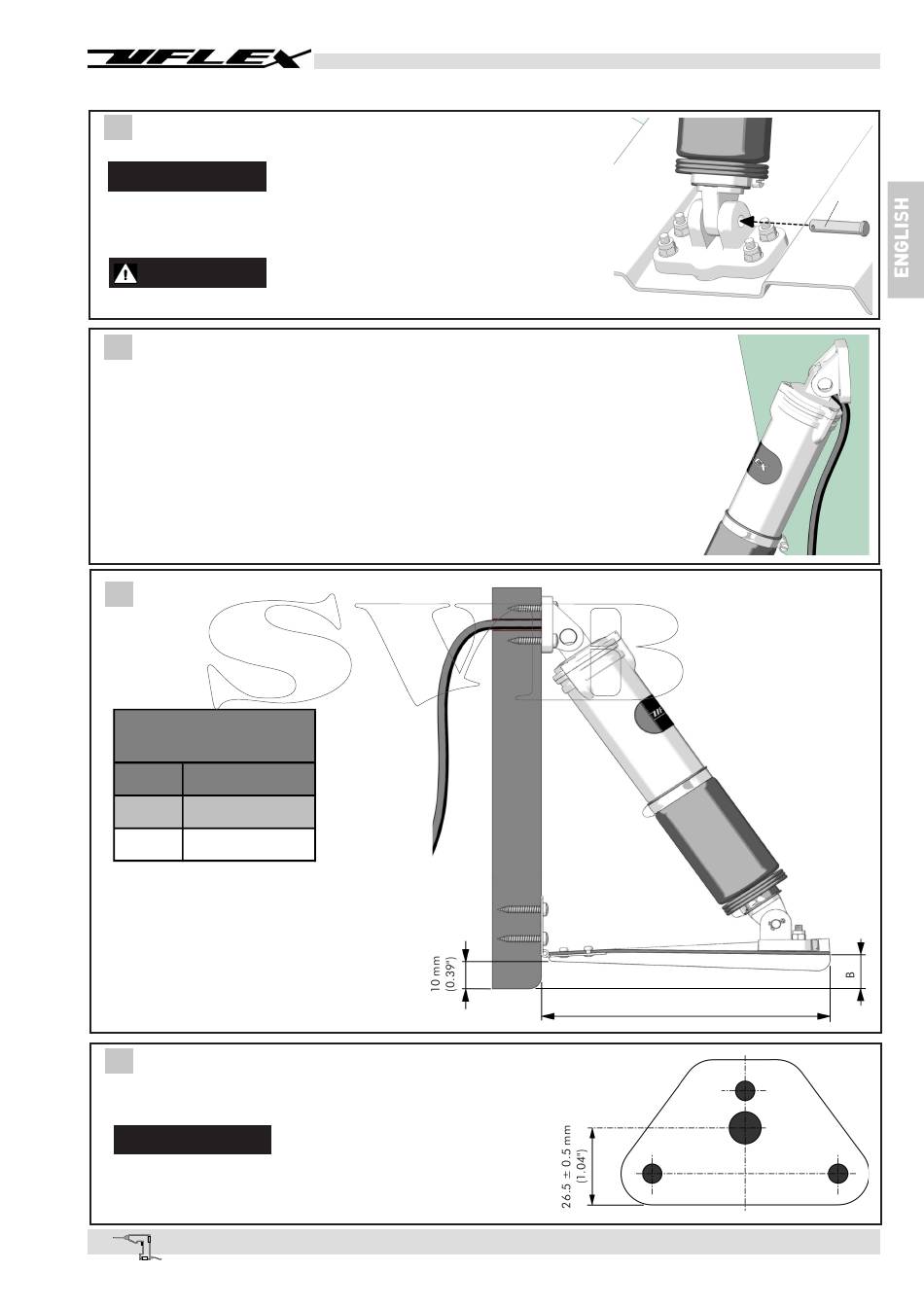

6 Fix the actuator end fitting to bracket (C C C C C ) inserting pin (G G G G G )
and locking it by means of the split pin (H H H H H ).
NOTICE
The actuator (A1 A1 A1) is supplied in 0 mm stroke position in order to A1 A1
be installed properly. Do not power it since this would cause
the actuator to change its position.
WARNING
The bracket must be installed exactly as shown in the picture.
Insert the upper bracket (A A A A A ) on actuator (A1
7
cable through the bracket in order to mark its perimeter.
8 Place the upper bracket (A A A A A ) on the
transom.
For a correct installation, lift the outer
edge of the tab according to the measures
which are shown in the following table.
INSTALLATION
DISTANCE
A B
9" 19,5 mm (0.77")
12" 21 mm (0.83")
9 Remove the upper bracket (A A A A A ) from actuator (A1
place it on the transom in order to mark the hole position
and the bracket outline by using a pencil or a pen.
NOTICE
Make sure the cable hole is properly positioned.
