4. Mounting instruction
Method 1.
Pass mounting bolts through mounting slots (shown below)
Screw locknut supplied into recess on the underside of base.
The Pan & Tilt can now be mounted on the bracket and secured with washers and nyloc nuts.

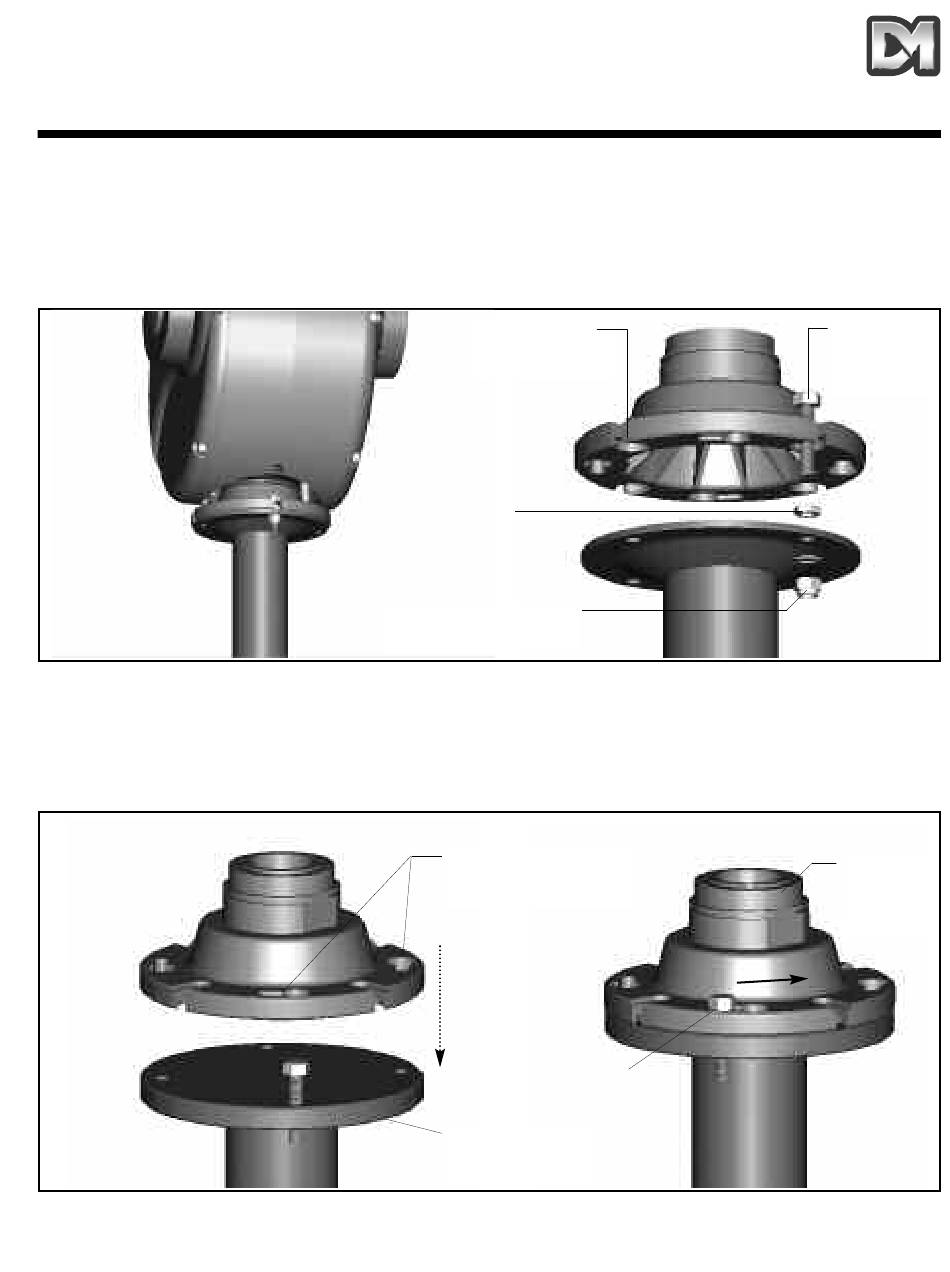

Fig.2 Unit mounting
(method 1)
Method 2.
Screw bolts supplied into mounting surface leaving at least 12mm of thread beneath head showing.
Position base over bolts in keyhole slots & rotate anti-clockwise until shank of bolt is locked in slot.
Mounting bolts can now be tightened.
Fig.3 Unit mounting
(method 2)
2000/2006 Installation Manual
Mounting slots
M6 locknut
M6 Nyloc nut & washer.
Keyhole slots
M6 x 30 Hex.hd.
Mounting surface
M6 x 30
Hex.hd.
Rotate
Page. 3
