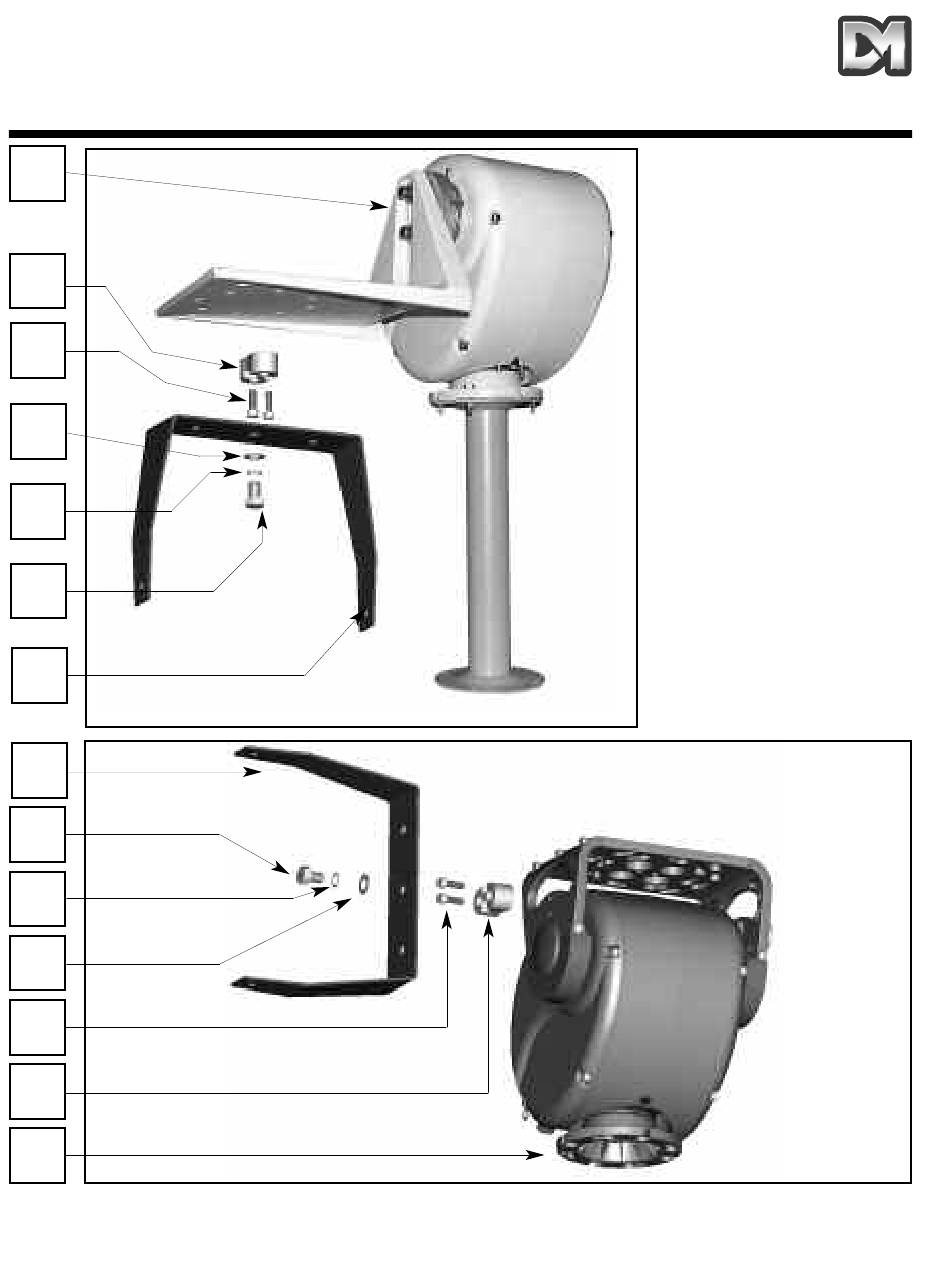

11. Infra red lamp mounting positions
A
B
C
D
E
F
G
Fig.14 Side platform mounting
G
F
E
D
C
B
A
2000/2006 Installation Manual
Components
A. Pan & Tilt
B. Mounting spacer
C. M6x20 screws
D. M10 plain washer
E. M10 spring washer
F. M10x16 screw
G. Infra red lamp cradle
Fig.15 Standard platform mounting
Page. 10
