9. Type 2000: Motor Capacitor replacement
A
B
C
D
E

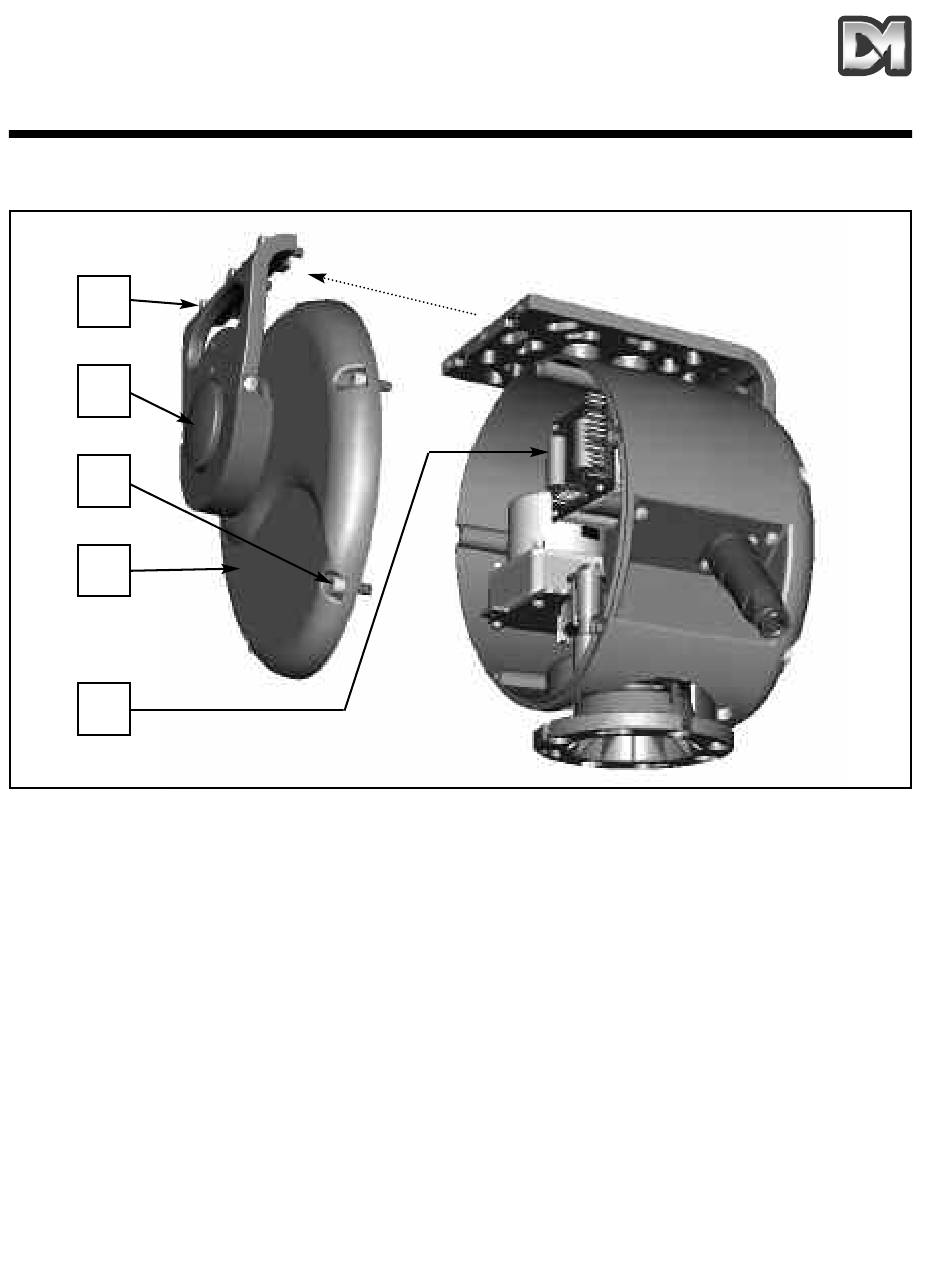

Fig.12 Type 2000 Capacitor replacement
1. Remove the 3 idler side plate fixings (A) and withdraw side plate (B)
2. Remove the 5 cover fixings (C) retaining the idler side cover.
3. Withdraw the idler side cover (D) to expose the internal components of the Pan & Tilt.
4. The Capacitor board (E) is mounted on the end of the tilt motor and can be readily removed
without the use of tools.
5. Replacement capacitors can be fitted as required. Component idents are screened on the p.c.b.
