Preparation
(continued)

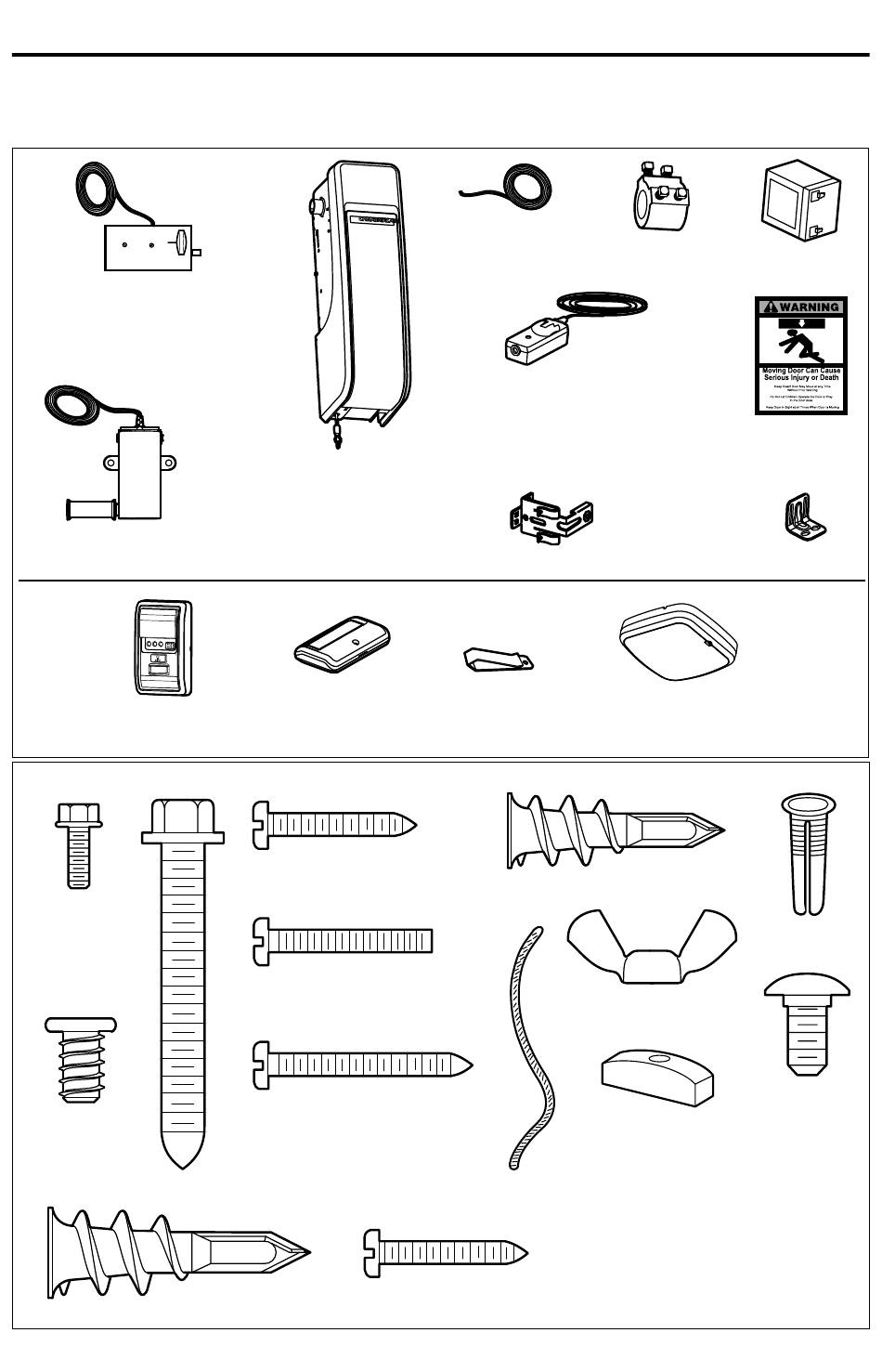

Carton Inventory

Save the carton and packing material until the installation and adjustment is complete. The images throughout this manual
are for reference only and your product may look different.
Automatic Garage Door Lock
with Wire and Connector
NOTE: Older model 24V door locks
are incompatible
Cable Tension Monitor with
2-Conductor Green/White Wires
ACCESSORIES
Motion-Detecting
Control Panel
INCLUDED HARDWARE
Screw
#10-32 (2)
Screw
14-10x2" (4)
Screw #10-32 (2)
Screw
Screw 14-10x2" (4)
1/4"-20x1/2" (2)
Handle
Rope
REMOTE LIGHT HARDWARE
Screw 1/4"-20x1/2" (2)
Drywall Anchor (Screw-In) (2)
Drywall Anchor (screw-in) (2)
Garage Door Opener
1-Button Premium
Remote Control
Model 950ESTD (1)
#8 Hex Head Screw (2)
#8 Hex Head Screw (2)
Screw
#8-32x1" (2)
Screw #6 (2)
Screw #6 (2)
Screw 6-32x1"
(pre-wired) (2)
Lag Screw
Lag Screw
Screw 6ABx1-1/4" Screw 8-32x1" (2)
5/16"-9x2"
5/16"-9x2"
(Standard installation) (2)
Screw 6ABx1-1/4" (2)
Drywall Anchor (2)
Screw 6-32x1" (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
Screw 1/4-20 (2)
Screw 1/4-20 (2)
Screw #6x1" (2)
2 Conductor Wire
White and White/Red
The Protector System
(2) Safety Reversing Sensors
(1 Sending Sensor and
1 Receiving Sensor) with
2-Conductor White and
White/Black Wire attached
Safety Reversing Sensor Bracket (2)
Remote Control
Visor Clip
Drywall Anchor (screw-in) (2)
Wall Anchor (2)
Wall Anchor (2)
Rope
Wall Anchor (2)
Wall Anchor (2)
7
Collar with
Set Screws
®
Safety Labels
and Literature
Mounting Bracket
Smart LED Light myQLED1
(Garage Door Opener Light)
with Hardware Bag
Staples
Staples
Anchors (2)
Wing Nut
1/4"-20 (2)
Carriage Bolt
REMOTE LIGHT HARDWARE: 1/4"-20x1/2" (2)
Handle
Staples
Staples
myQ Remote LED Light Model myQLED1
Drywall Anchor (Screw-In) (2)
Screw #6x1" (2)
Battery
Drywall
