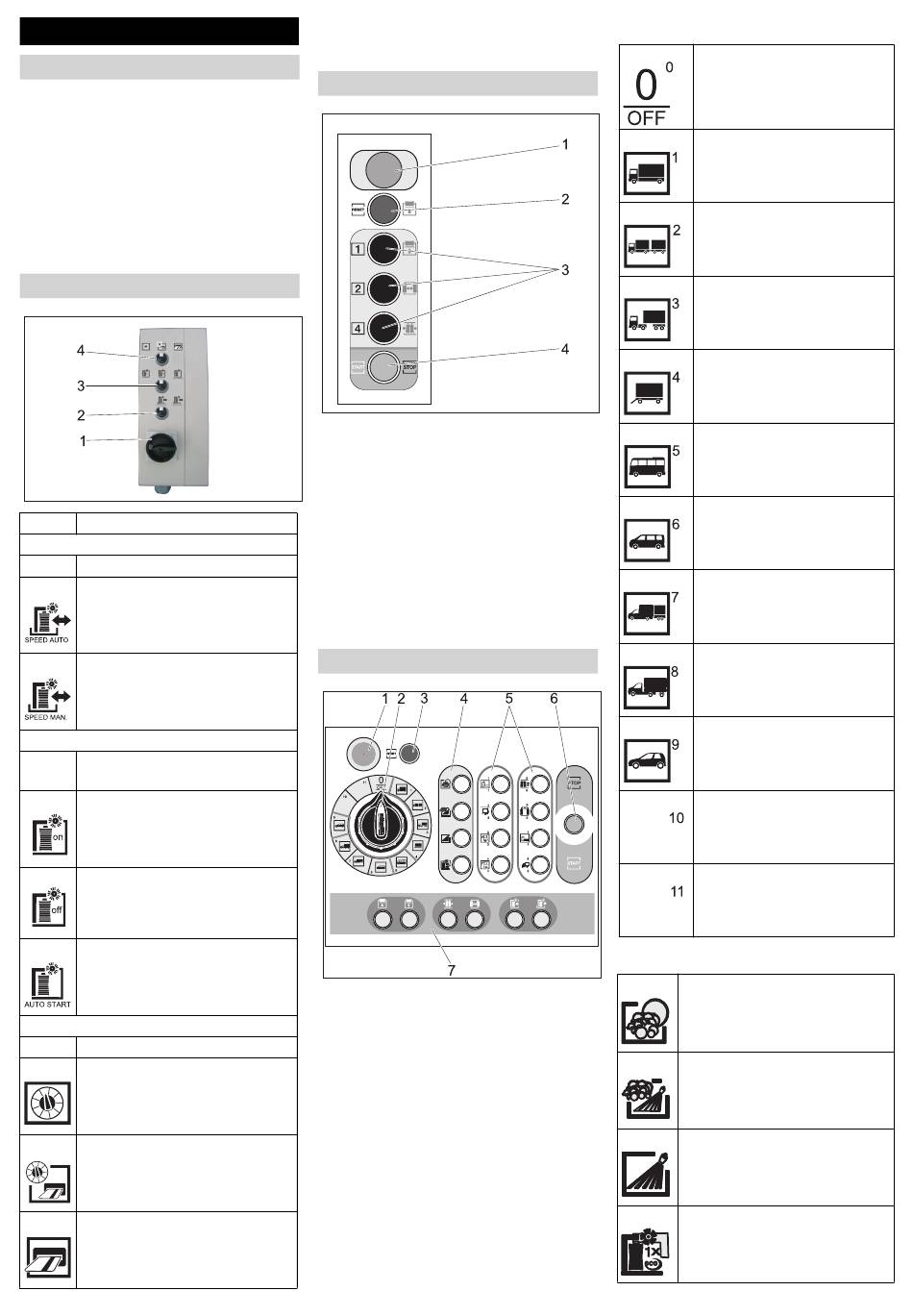

Control elements

Emergency-stop
In the event of danger to persons, property
and animals, the plant must be switched off
immediately by pressing the emergency-
stop button. Emergency stop buttons are
located aI the
wash card/code reader
–
at the control panels
–
at the entrance to the wash hall, if a
–
control panel or wash card/code reader
(option) is located there.
Feed distributor (option)
1 Main switch
2 Switch for speed preselection
Drive speed portal, roof brush/
high pressure bar normal
Drive speed portal, 30...120%.
3 Switch for operating mode prese-
lection
The system can only be started
during the set operating time.
Plant out of order
A washing programme prede-
fined by the operator is started.
4 Switch for control panel preselection
Washing programmes can only
be started from the control panel.
Washing programmes can be
started from the control panel
and from the wash card/code
reader.
Washing programmes can only
be started from the wash card/
code reader.
30
The system is switched on and off at the
feed distributor and different operating
modes are preselected.
Basic control panel (option)
1 Emergency-stop button
2 "Reset" key/manual intervention
3 Programme selection switch/manual in-
tervention
4 "Start/stop" key
The control panel is suitable for the execu-
tion of the following functions:
Starting washing programmes.
–
Execution of manual interventions.
–
Execution of manual functions for serv-
–
ice work.
Advanced control panel (option)
1 Emergency-stop button
2 Program selection switch
3 Key "Reset"
4 Keys for additional programme
5 Keys for programme options
6 "Start/stop" key
7 Keys for manual intervention
The control panel is suitable for the execu-
tion of the following functions:
Starting washing programmes.
–
Execution of manual interventions.
–
Execution of manual functions for serv-
–
ice work.
Selection and deselection of additional
–
programmes and options
4
-
EN
Program selection switch
No washing programme se-
lected, system out of order.
Truck
Lorry with trailer
Artic. truck
Trailer
Bus
Small lorry
Small lorry with trailer
Mini lorry
Small vehicle
Freely assignable
Freely assignable
Keys for additional or single programmes
Foam wash
Intensive wash
High-pressure wash
Single wash
