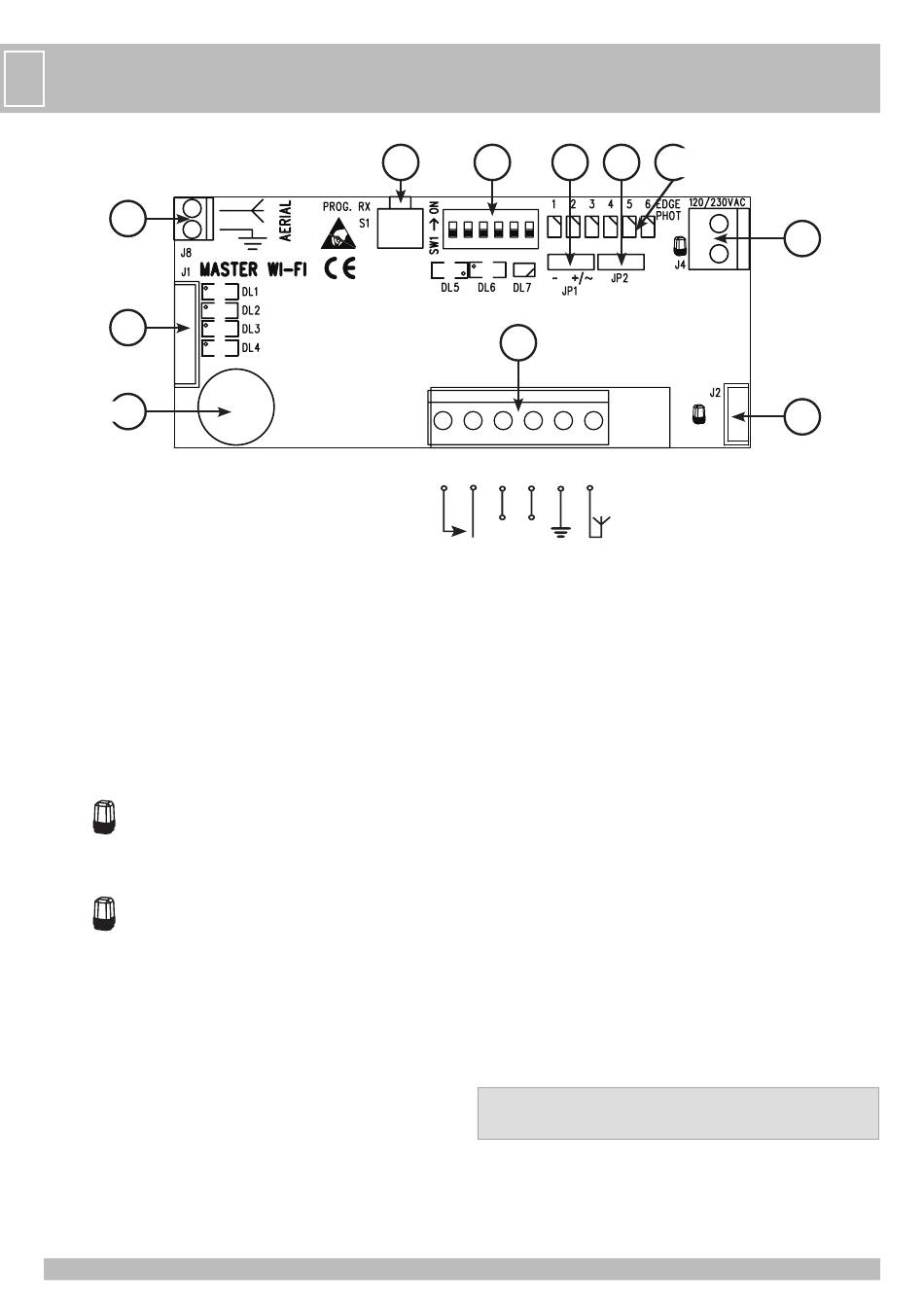

- LAYOUT
J8
J1
BUZZER
10 9 6 5
+ -
J1 => CONNECTOR FOR CONNECTIONS TO THE CONTROL PANEL SAFETY INPUTS
Green wire => safety strip EDGE 2
NOTE: this output is enabled from the safety strips stored in 4-5-6 positions
Gray wire => contact common COM
Yellow wire => safety strip EDGE 1
NOTE: this output is enabled from the safety strips stored in 1-2-3 positions
Black wire => photocell PHOT N.C.
White wire => terminal for connecting the wire coming from the system control
button N.O.
Brown wire => auto test power feed A+ TEST.
J2 =>
CONNECTOR FOR CONNECTIONS TO THE 12/24V ac/dc BLINKER OUTPUT
OF CONTROL PANEL (CHECK POLARITY)
Red wire => positive (connects to the positive pole of the blinker output)
Black wire => negative (connects to the negative pole of the blinker output)
J4 => TERMINALS FOR CONNECTIONS TO THE 120/230V BLINKER OUTPUT OF
CONTROL PANEL
J5 => TERMINAL FOR CONNECTIONS TO RIB CRX OR OTHER BRANDS CONTROL
PANELS
J8 => TERMINAL FOR CONNECTION TO THE ANTENNA 868,3 MHz
JP1 => A+ TEST
- Jumper selection AUTOTEST mode for control panels with negative power feed for
AUTOTEST
+/~
Jumper selection AUTOTEST mode for control panels with positive/alternate power
feed for AUTOTEST (as RIB control panels)
JP2 => To delete all remote controls codes
SW1 => DIP-switches for pairing and identifying strips and photocells
S1 => PROG. RX
Programming button
S1
2 1 6 5 4 3 2 1
1 central wire antenna 433 MHz
2 shield wire antenna 433 MHz
3
negative power feed 12/24V ac/dc
4
positive power feed 12/24V ac/dc
5-6 connects at the total open/close input command in the control panel
SW1 JP1 JP2
J5
+ -
BUZZER => Sound signal for installation, warning and alarm status
LED
DL1 (red) - strip contact N.C. (EDGE 2)
DL2 (red) - strip contact N.C. (EDGE 1)
DL3 (red) - photocell contact N.C. (PHOTO)
DL4 (red) - total opening command with push-button N.O. in the system
DL5 (green) - activated total opening radio-control.
DL6 (yellow) - electrical power indicator 12-24V ac/dc
DL7 (green/red) - radio code learning for total opening
LED EDGE PHOT
off => operating normally
green => safety strip or photocell engaged
red/green => alarm
LED EDGE PHOT 1 - EDGE SENSOR OR PHOTOCELL 1
LED EDGE PHOT 2 - EDGE SENSOR OR PHOTOCELL 2
LED EDGE PHOT 3 - EDGE SENSOR OR PHOTOCELL 3
LED EDGE PHOT 4 - EDGE SENSOR OR PHOTOCELL 4
LED EDGE PHOT 5 - EDGE SENSOR OR PHOTOCELL 5
LED EDGE PHOT 6 - EDGE SENSOR OR PHOTOCELL 6
SW1 MICRO-SWITCHES - DIP
DIP 1 ON => STRIP SENSOR OR PHOTOCELL 1 ACTIVATED
DIP 2 ON => STRIP SENSOR OR PHOTOCELL 2 ACTIVATED
DIP 3 ON => STRIP SENSOR OR PHOTOCELL 3 ACTIVATED
DIP 4 ON => STRIP SENSOR OR PHOTOCELL 4 ACTIVATED
DIP 5 ON => STRIP SENSOR OR PHOTOCELL 5 ACTIVATED
DIP 6 ON => STRIP SENSOR OR PHOTOCELL 6 ACTIVATED
ATTENTION: every time is made a change of dip switches settings, press PROG RX push-
botton for 6 times to update the system.
At the end the leds EDGE PHOT must be turned off.
20
Dual-color Led
EDGE PHOT 1-6
J4
J2
12/24V ac/dc
