AXIS Q60 Series
CAUTION
The heat sink could be hot. Be careful when touching the heat sink and the heat sink cover.
If required, let the camera cool before touching it.

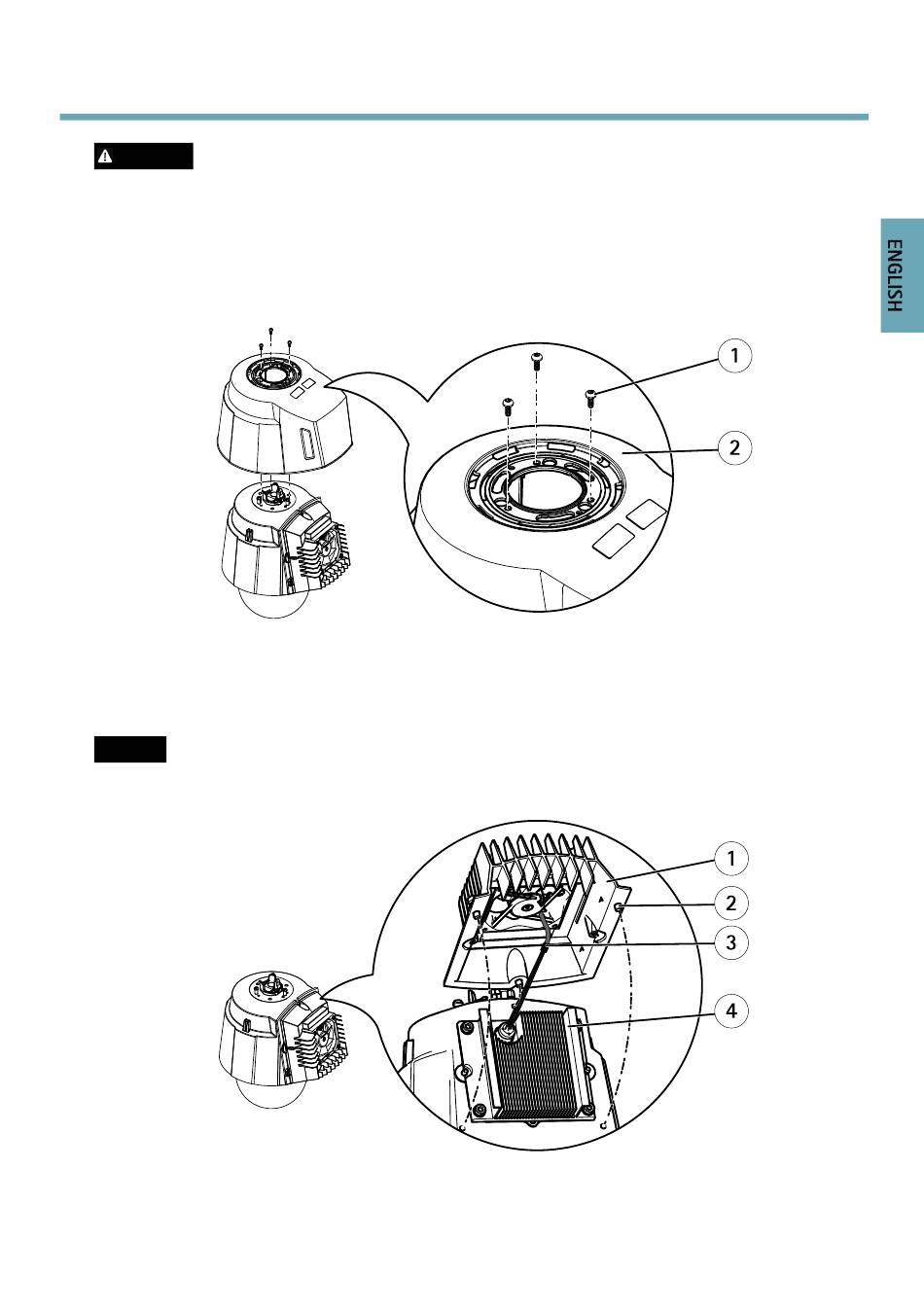

1. Disconnect the multi-connector cable.
2. Loosen the screws and remove the sunshield.
1
Screw T20 (3x)
2
Sunshield
3. Remove the screws (Torx T30) and lift the heat sink cover.
NOTICE
NOTICE NOTICE
Do not strain the fan cables or let the heat sink cover hang by the fan cables.
1
Heat sink cover
