AXIS Q60 Series
5. Attach the dome bracket and the dome cover to the dome ring and tighten the screws
(torque 1.2 Nm).
6. To install an SD card (not included), see Install an SD Card, on page 23.

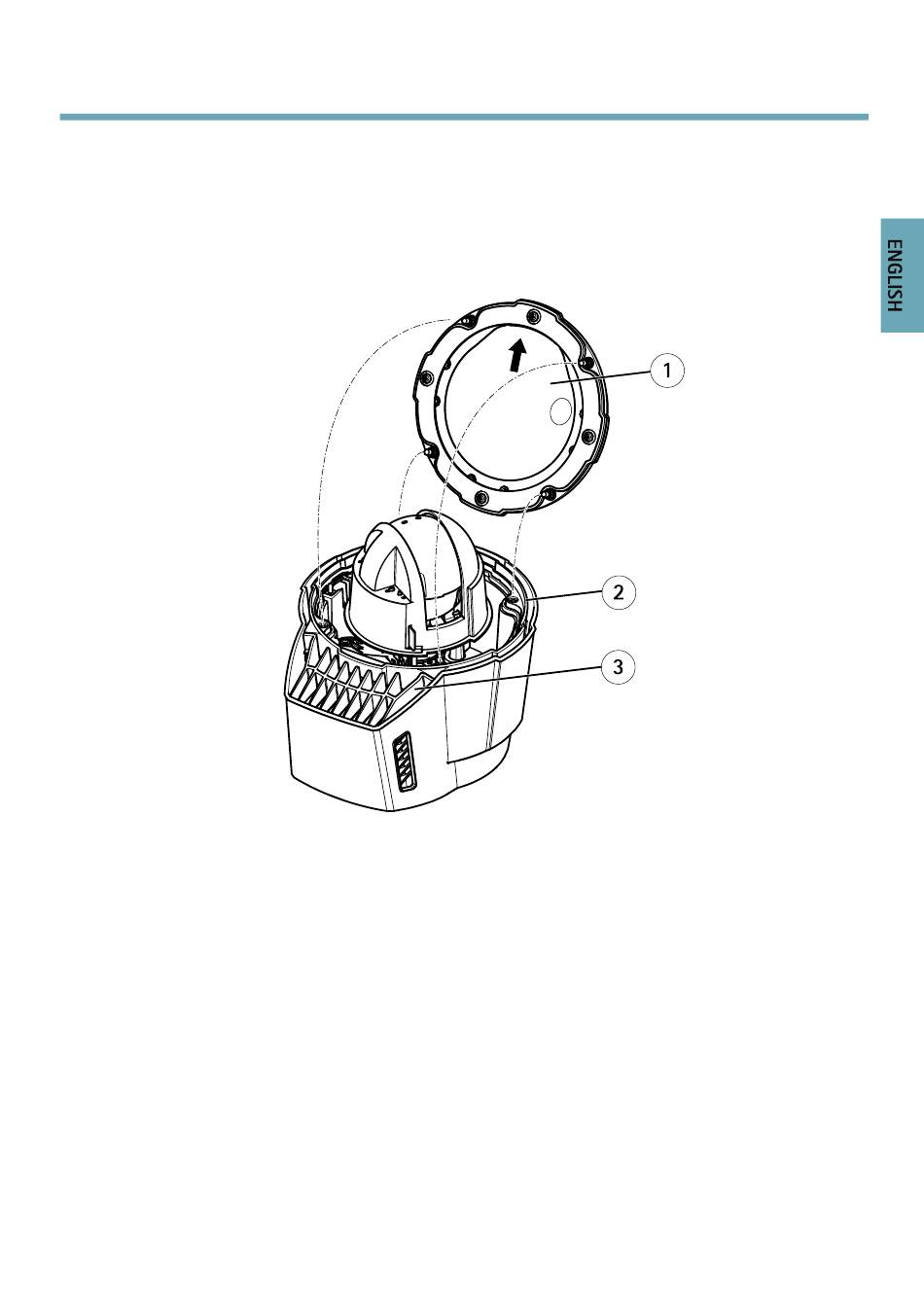

7. To attach the dome cover to the top cover, align the bulge on the dome cover with the
cooling system on the camera unit and tighten the screws (torque 1.5 Nm).
1 Dome cover
2
Top cover
3
Cooling system
Install an SD Card
It is optional to install a standard or high capacity SD card (not included), which can be used for
local recording with removable storage.
1. Loosen the dome ring screws and remove the dome cover.
2. Insert an SD card (not included) into the SD card slot.
3. To attach the dome cover to the top cover, align the bulge on the dome cover with the
cooling system on the camera unit and tighten the screws (torque 1.5 Nm).
2
3
23
1
