AXIS Q60 Series
•
I/O connector (internal) - 2–pin I/O terminal block.

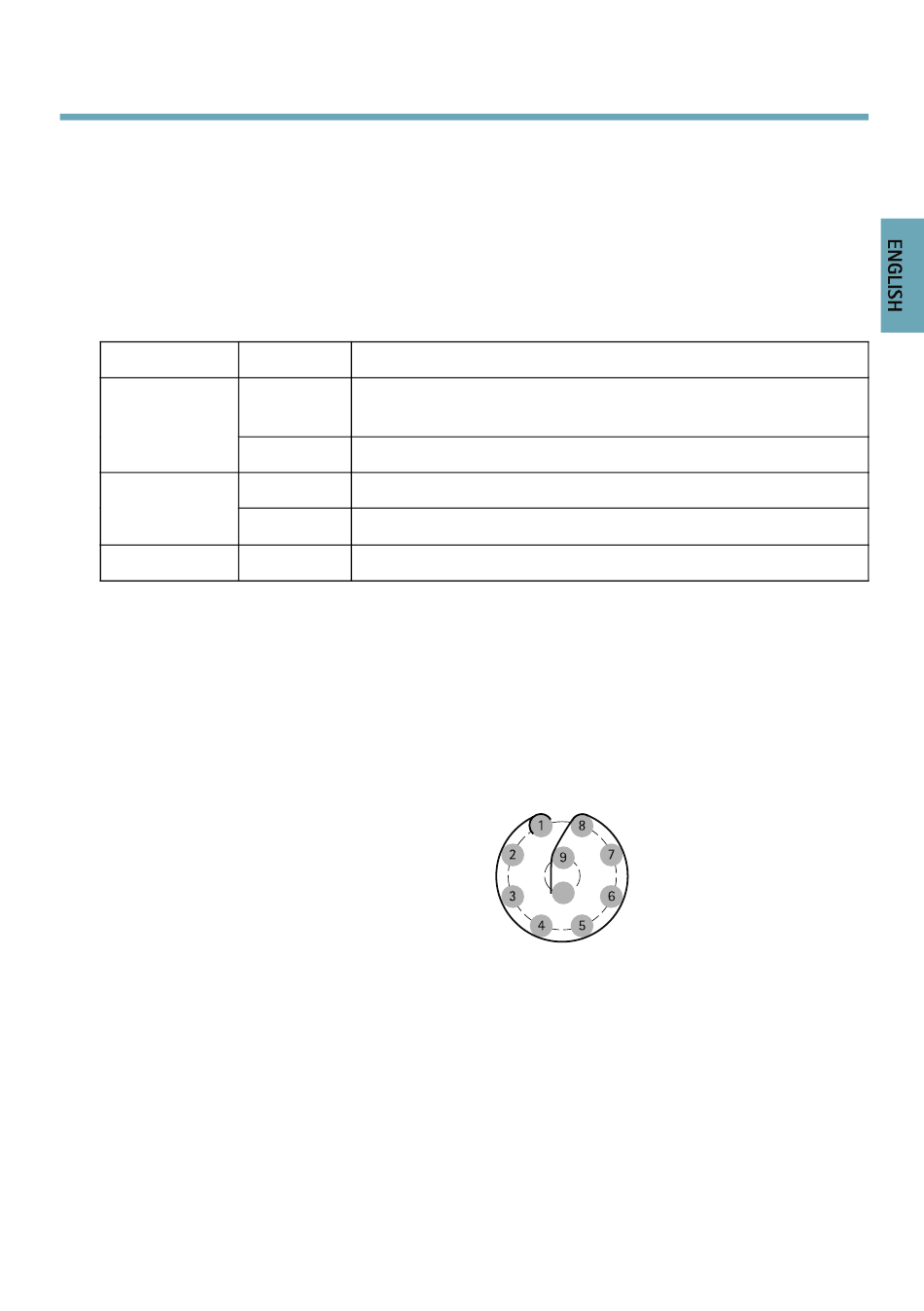

Media Converter Switch LED Indicators
LED
Power
Network (4x)
Camera
Multi-Connector Cable
The supplied multi-connector cable is required in order to maintain the camera's IP rating.
Connect the multi-connector cable to the camera's multi-connector and to the connectors in the
supplied media converter switch, see page 10.
The cable provides the following signals:
• DC power
• Network (Ethernet 10/100Base-T)
• Input/Output (I/O)
Digital input – An alarm input for connecting devices that can toggle between
an open and closed circuit, for example: PIRs, door/window contacts, glass
break detectors, etc. When a signal is received the state changes and the input
becomes active (shown under System Options > Port & Devices > Port Status).
Color Indication
Unlit
DC power unconnected or current protection engaged (power
overload)
Green DC power connected.
Amber 10 Mbit connection. Flashes during activity.
Green
100/1000 Mbit connection. Flashes during activity.
Green 100 Mbit connection. Flashes during activity.
1 8
2 7
9
3 6
4 5
