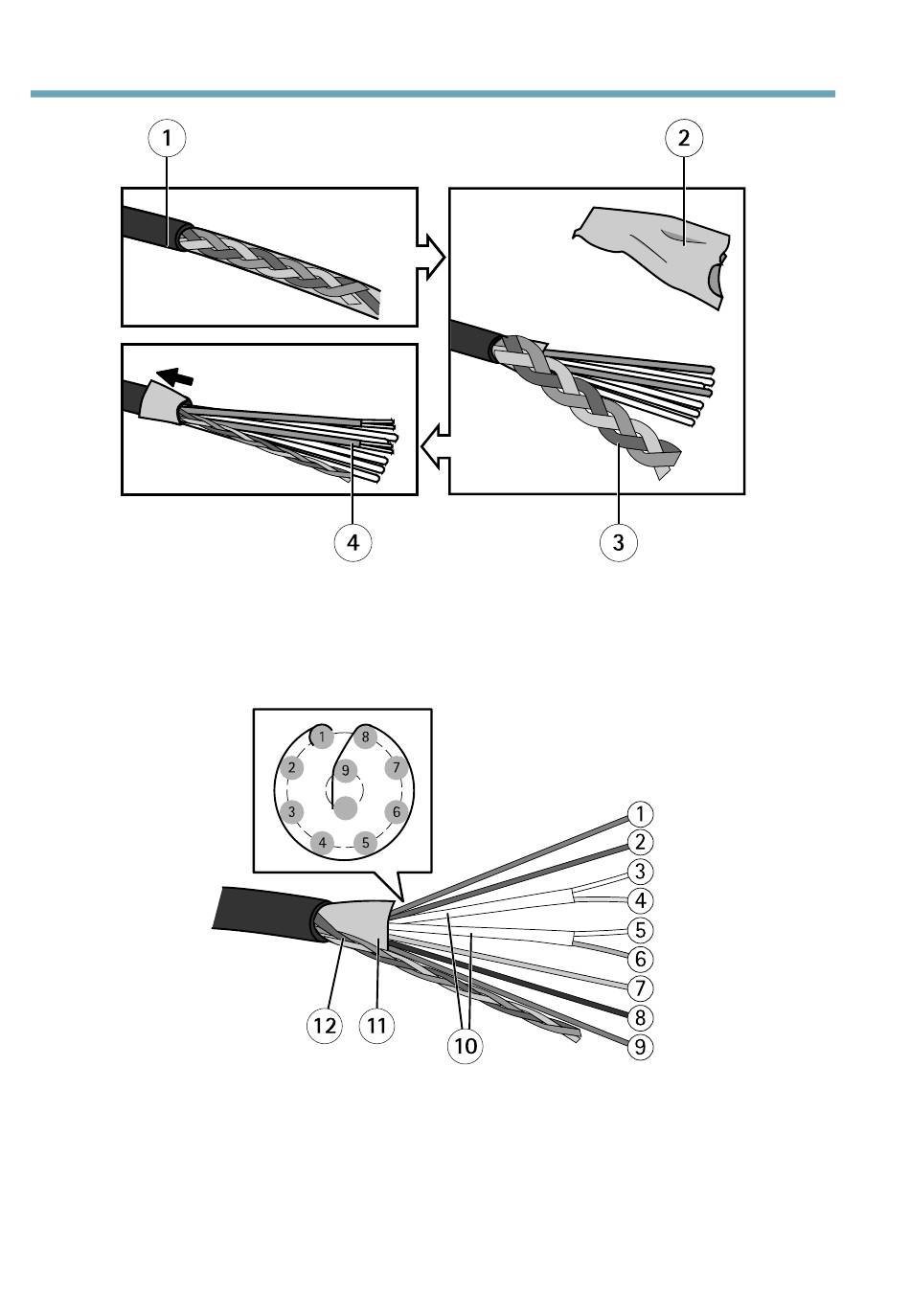

1 Multi-connector cable jacket
2
Outer foil shield
3 Braided shield
4
Ethernet wire foil shield (2x)
1
Power wire (red)
2
Digital I/O wire (blue)
3
Ethernet wire (green/white)
4
Ethernet wire (green)
5
Ethernet wire (orange/white)
4
1 8
2 7
9
3 6
4 5
12 11
10
