RIB MASTER WI-FI ACG6094 Mode D'emploi page 20

G
B
C

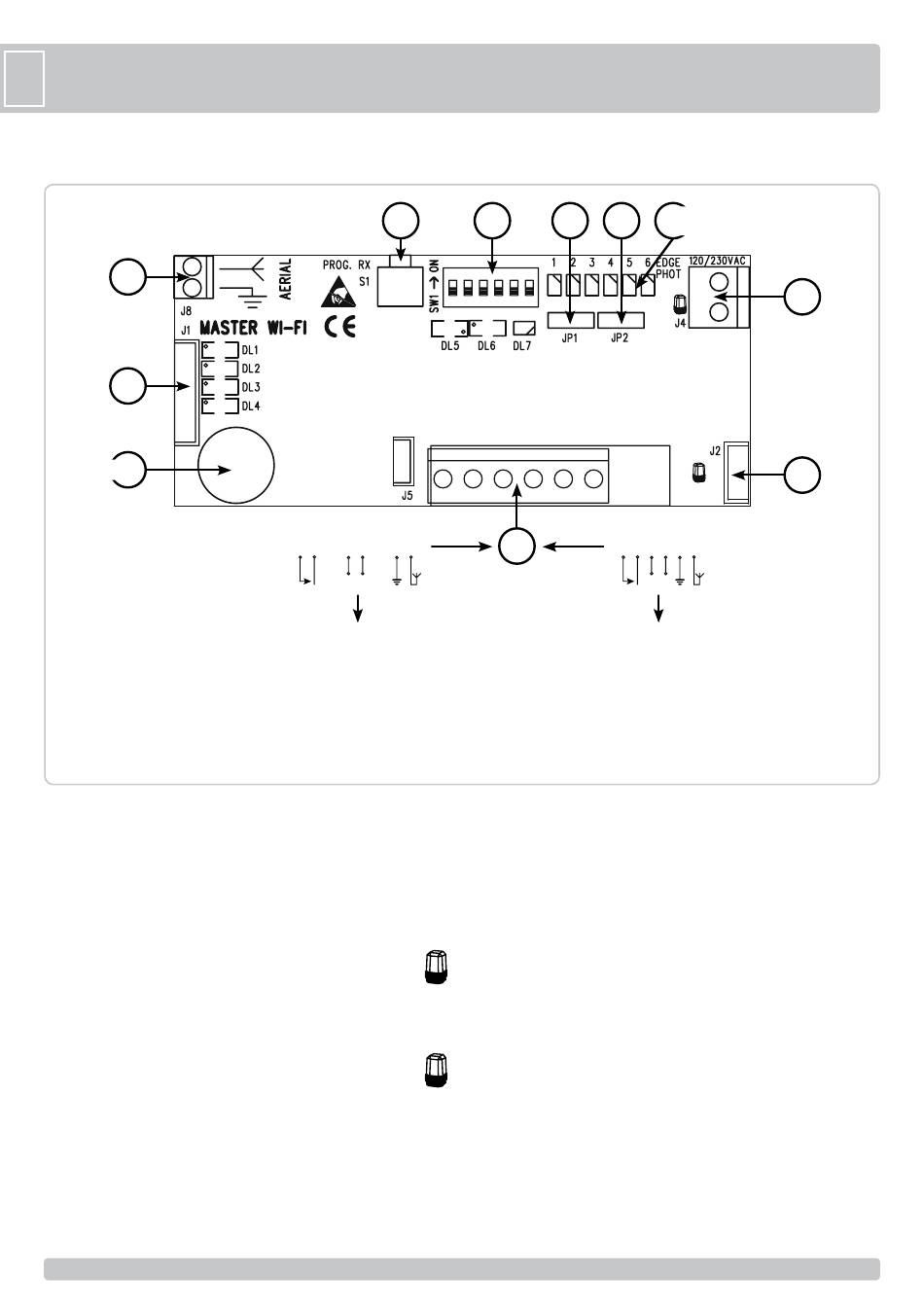

- ELECTRICAL CONNECTIONS
J8
J1
BUZZER
J1 => CONNECTOR FOR CONNECTIONS TO THE CONTROL PANEL
AND SAFETY AND CONTROL INPUTS
Green wire => pedestrian control PED
Gray wire => contact common COM
Yellow wire => sensor EDGE
Black wire => photocell PHOT N.C.
White wire => terminal for connecting the wire coming from the
system control button N.O.
Brown wire => auto test power feed A-D+ TEST.
J2 => CONNECTOR FOR CONNECTIONS TO THE 24V ac/dc
CONTROL PANEL AT THE BLINKER OUTPUT (CHECK
POLARITY)
Red wire => positive (connects to the positive pole of the blinker
output)
Black wire => negative (connects to the negative pole of the
blinker output)
J4 => TERMINALS FOR CONNECTIONS TO THE 120/230V
CONTROL PANEL, AT THE BLINKER OUTPUT
J5 => FEMALE CONNECTOR FOR CONNECTION TO NOT CRX
RIB CONTROL PANELS (MASTER Wi-Fi code ACG6094)
OR TERMINAL BOARD FOR CONNECTIONS TO OTHER
BRANDS OR RIB CRX CONTROL PANELS (MASTER Wi-Fi
code ACG6099)
J8 => TERMINAL FOR CONNECTION TO THE ANTENNA 868,3 MHz
JP1 => A/D+ TEST see SELF-TEST-ENABLED RIB ELECTRONIC
BOARD CHART.
- Jumper selection auto test mode
S1
10 9 6 5 2 1
+ -
MASTER Wi-Fi code ACG6094
Key:
1 central antenna 433
2 ground-plane antenna
3-4 open
5 negative power feed 12/24V ac/dc
6 positive power feed 12/24V ac/dc
7-8 feed
9-10 total open/close control
SW1 JP1
10 9 6 5 4 3 2 1 6 5 2 1
J5
+ - + -
MASTER Wi-Fi with terminal block code ACG6099
Key:
1 central antenna 433
2 ground-plane antenna
3 negative power feed 12/24V ac/dc
4 positive power feed 12/24V ac/dc
5-6 connects to the control panel at the total open/close
control input button (K BUTTON for RIB panels)
+/~ Jumper selection auto test mode
JP2 => Radio-control code removal for total and pedestrian opening
SW1 => Micro-switches for pairing and identifying strips and
photocells
S1 => PROG. RX
BUZZER => Sound signal for installation, warning and alarm status
LED
DL1 (red) - pedestrian opening control N.O. (PED)
DL2 (red) - strip contact N.C. (EDGE)
DL3 (red) - photocell contact N.C. (PHOTO)
DL4 (red) - total opening command with push-button N.O. in the
system
DL5 (green) - activated total opening radio-control.
DL6 (yellow) - electrical power indicator 12-24V ac/dc
DL7 (dual-color) - radio code learning for total, pedestrian and blinker
opening
DUAL-COLOR LED EDGE PHOT
off => operating normally
green => strip sensor or photocell engaged
red/green => alarm
LED EDGE PHOT 1 - EDGE SENSOR OR PHOTOCELL 1
LED EDGE PHOT 2 - EDGE SENSOR OR PHOTOCELL 2
LED EDGE PHOT 3 - EDGE SENSOR OR PHOTOCELL 3
LED EDGE PHOT 4 - EDGE SENSOR OR PHOTOCELL 4
LED EDGE PHOT 5 - EDGE SENSOR OR PHOTOCELL 5
20 20
20 20
Dual-color Led
JP2
EDGE PHOT 1-6
24V ac/dc
6 5 4 3 2 1
+ -
Programming button
J4
J2
