DESCRIPTION
1. Power head
2. Strap hanger
3. Trigger handle
4. Shaft
5. Cutting attachment guard
6. Tri-Arc™ blade
7. ReelEasy™ grass trimmer head
8. Front handle
9. Quick release tab
10. Latch
11. Mounting bracket
12. Screw
13. Wrench
14. Allen wrench (5 mm)
15. Hole in the gear case
16. Hole in the upper fl ange washer
17. Upper fl ange washer
18. Blade washer
19. Cupped washer
20. Blade nut
21. Gear head
22. Combination wrench
23. Drive connector
24. String head housing
25. Spring
26. Bolt
27. Spool
28. Knob
29. String head cover
30. Best cutting area
31. Dangerous cutting area
32. Direction of cutter rotation
33. Ignition switch
34. Throttle trigger
35. Throttle lock
36. Primer bulb
37. Choke lever
38. Tri-Arc™ blade protector
39. Air fi lter knob
40. Air fi lter cover
41. Filter
42. Starter bit
43. Electrical starter
44. F/R button
45. Starter bit shaft
46. Shaft hole on the engine
47. Switch button
48. Harness
49. Grass defl ector
50. Blade guard
51. Guard screw
52. Washer
53. Screw
54. Lower barrier
English (Original instructions) English (Original Instruction)

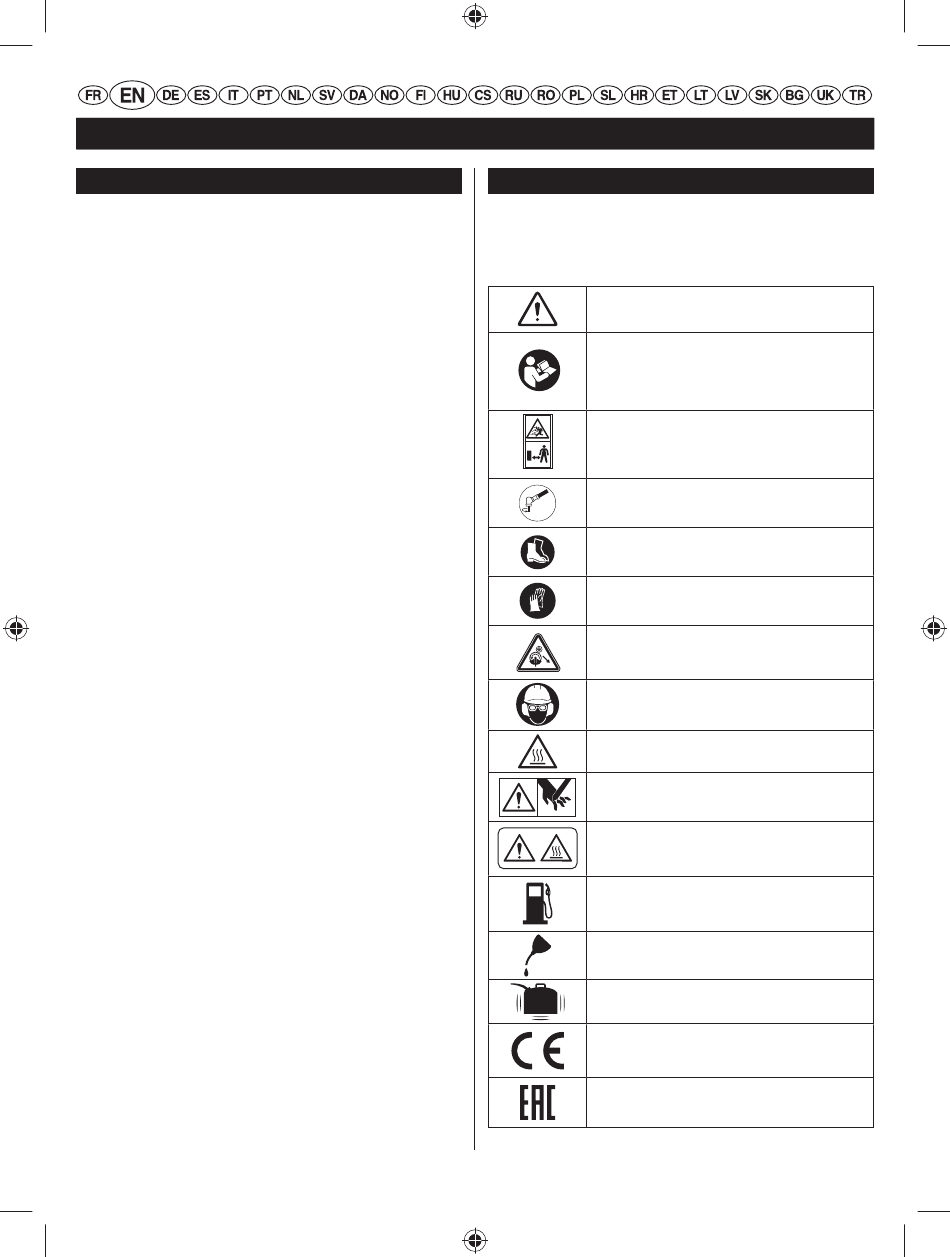

SYMBOLS
Some of the following symbols may be used on the
brushcutter/grass trimmer. Please study them and learn
their meaning. Proper interpretation of these symbols
allows you to operate the product better and safer.
17
Safety alert
To avoid serious personal injury, do not
attempt to use this product until you read
thoroughly and understand completely the
operator's manual.
Beware of thrown or fl ying objects. Keep
all bystanders, especially children and
pets at least 15 m from the operating area.
Rotational direction and maximum speed
of the shaft for the cutting attachment
7,370
min -1
Wear non-slip safety footwear when using
this equipment.
Wear non-slip, heavy-duty gloves.
Beware of blade thrust.
Wear eye, ear, and head protection.
To reduce the risk of injury or damage,
avoid contact with any hot surface.
Keep hands away from blades.
Hot surface
Use unleaded petrol intended for motor
vehicle use with an octane rating of 91 [(R
+ M)/2] or higher.
Use 2-stroke oil for air cooled engines.
Mix the fuel mix thoroughly and also each
time before refueling
Conforms to all regulatory standards in
the country in the EU where the product
is purchased.
EurAsian Conformity Mark
