RS485 interface
8.5.2

Establishing the connection between DriveMonitor and the device

8.5.2.1

Setting the USS interface

Siemens AG 6SE7087-7JK50
SIMOVERT MASTERDRIVES
The RS485 interface is multi-point capable and therefore suitable for
bus operation. You can use it to connect 31 SIMOVERT
MASTERDRIVES with a PC. On the PC, either an integrated RS485
interface or an RS232 ↔ RS485 interface converter is necessary. On
the device, an RS485 interface is integrated into the -X300 (compact
PLUS -X103) connection. For the cable: see pin assignment -X300 and
device documentation of the interface converter.
You can configure the interface with menu Tools

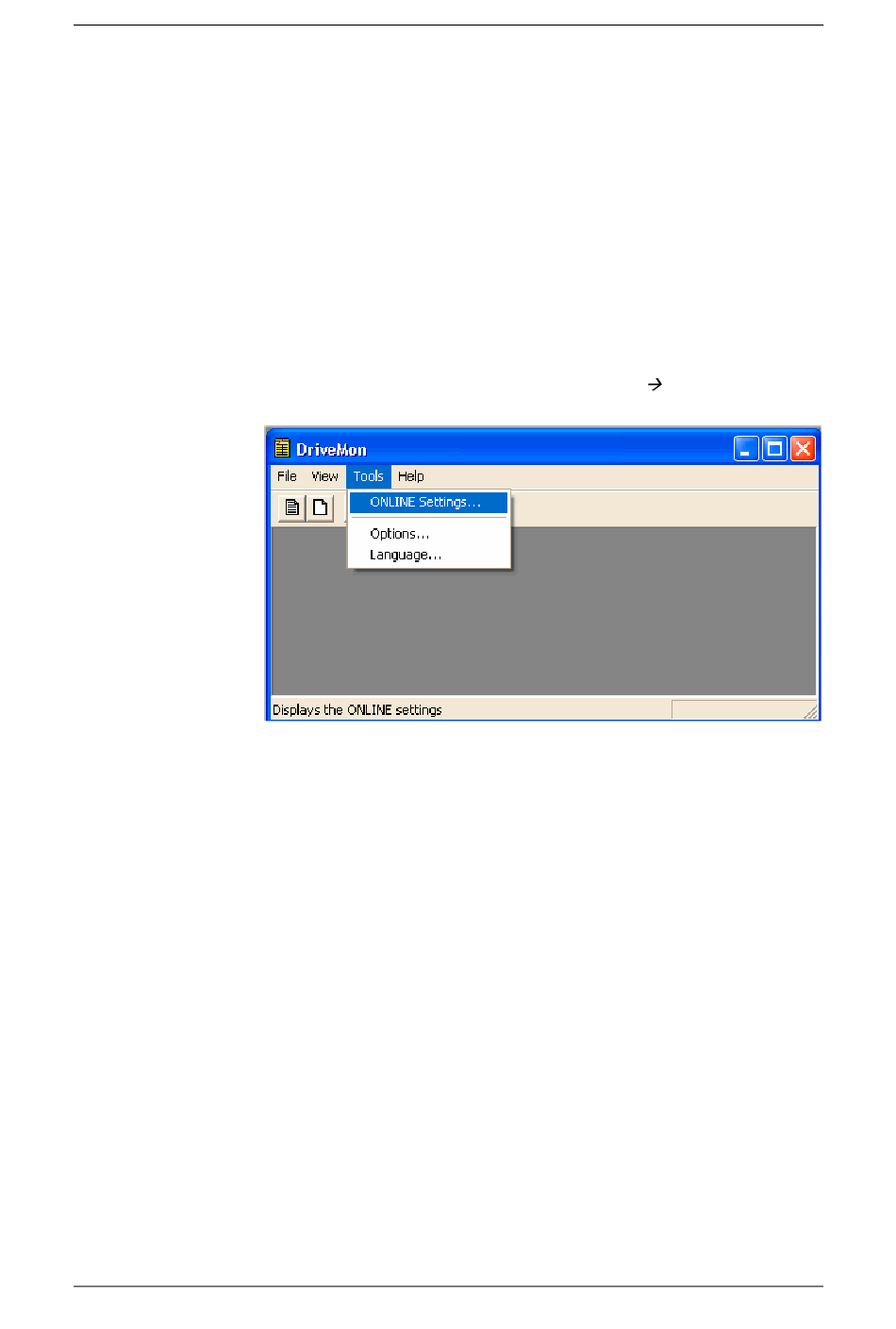

Fig. 8-6 Online settings
Operating Instructions
Parameterization
ONLINE Settings.
