15 Normal operation
 The E900 works automatically during normal operation.
Conditions for trouble-free operation:
 The external release signal must be enabled whenever
fluid is pumped through the filter.
 If the system is susceptible to failure in case of pressure
loss, the release signal must be enabled each time the
workpiece is changed, for example.
 One cleaning cycle takes approximately 10 s in normal
operation.
 In systems with external pressure cleaning by means of
compressed air, remember that this air must be supplied
separately.
16 Troubleshooting
Fault Possible cause
Complete Fuse defective
controller
without power
Input voltage
between 190 V and
250 V
Motor does not Motor circuit-
start breaker tripped
No release signal
Incorrect Wrong program
program
sequence
No automatic No program module
function or wrong program
module installed
Relay indicates Motor circuit-
malfunction breaker tripped
p signal present
for too long
Wire break at
pressure sensors
(analogue sensors
only)
Drain valve of Air breaks down
AF 13x, 15x,
17x does not
open
Motor turns Differential
continuously pressure not
reduced
Continuous motor
operation selected
(only recommended
for AF 7x and
AF 9x)

All errors not mentioned in this list:
 Please contact Filtration Group!
If an electric ball valve is used as the

backflush or drain valve, a power failure
could result in serious problems.
There is a risk that the filter could run dry.
Translation of the original instructions MFS-E900, Filtration Group GmbH, 26.09.19, Mat. No. 72370026, Version 05
Remedy
Replace the fuse
Compare the
actual voltage
with the rated
voltage
Set the power
supply to the
required voltage
(refer to section
9.1)
Reset the motor
circuit breaker
Set the correct
parameters
Install the correct
program module
Reset the motor
circuit breaker
Check parameter
B37 and p
Replace the faulty
cable
Check the plug
contact
Open the drain
valve before the
external pressure
valve
Check the
differential
pressure
Select another
operating mode
B27=OFF
17 Shutting down the system
17.1 Temporary shut-down

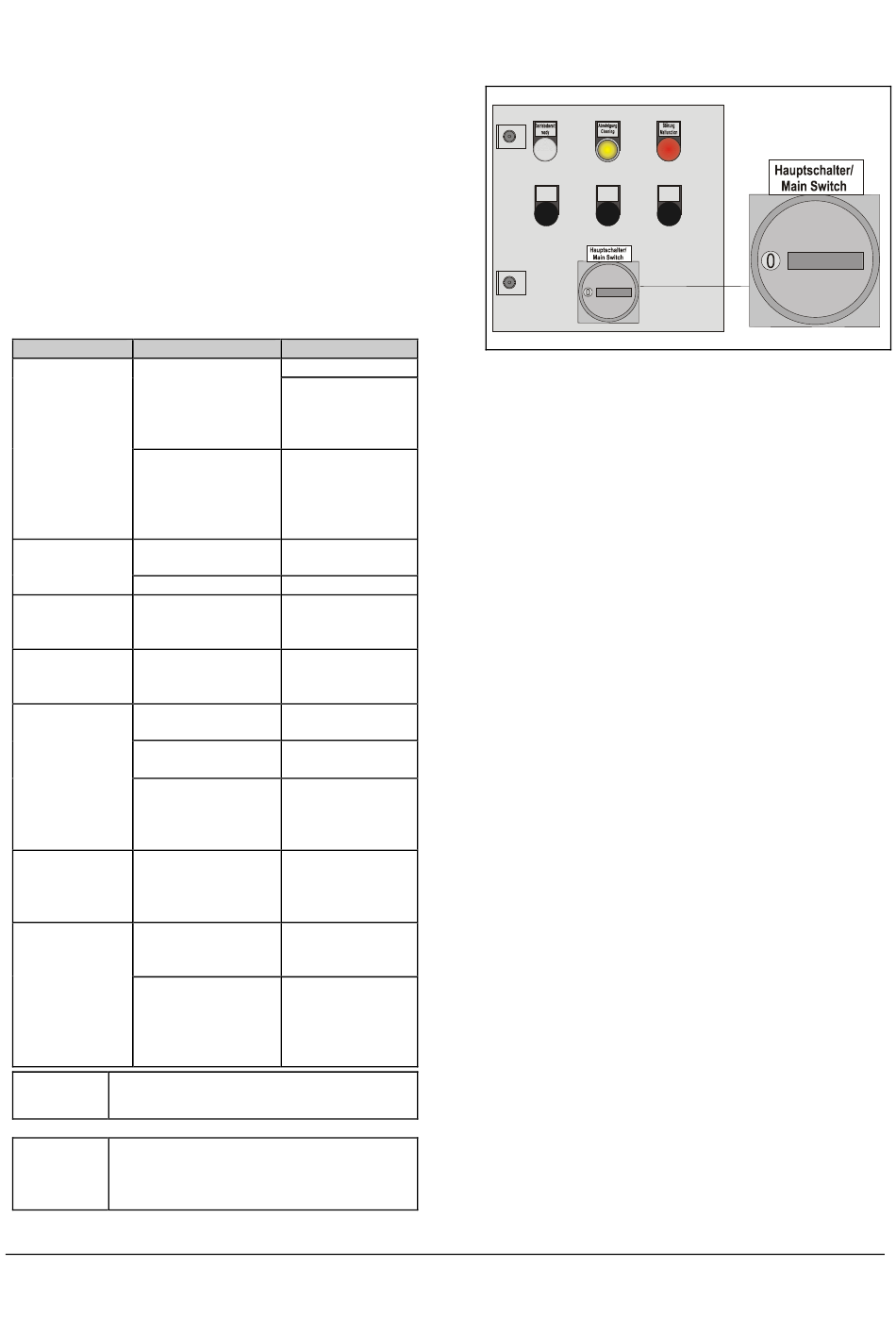

Fig. 23: Shutting down the system temporarily
 Switch off the main switch on the control cabinet.
17.2 Prolonged shut-down
 Switch off the main switch on the control cabinet.
 Disconnect the compressed air supply.
