6.3 Components

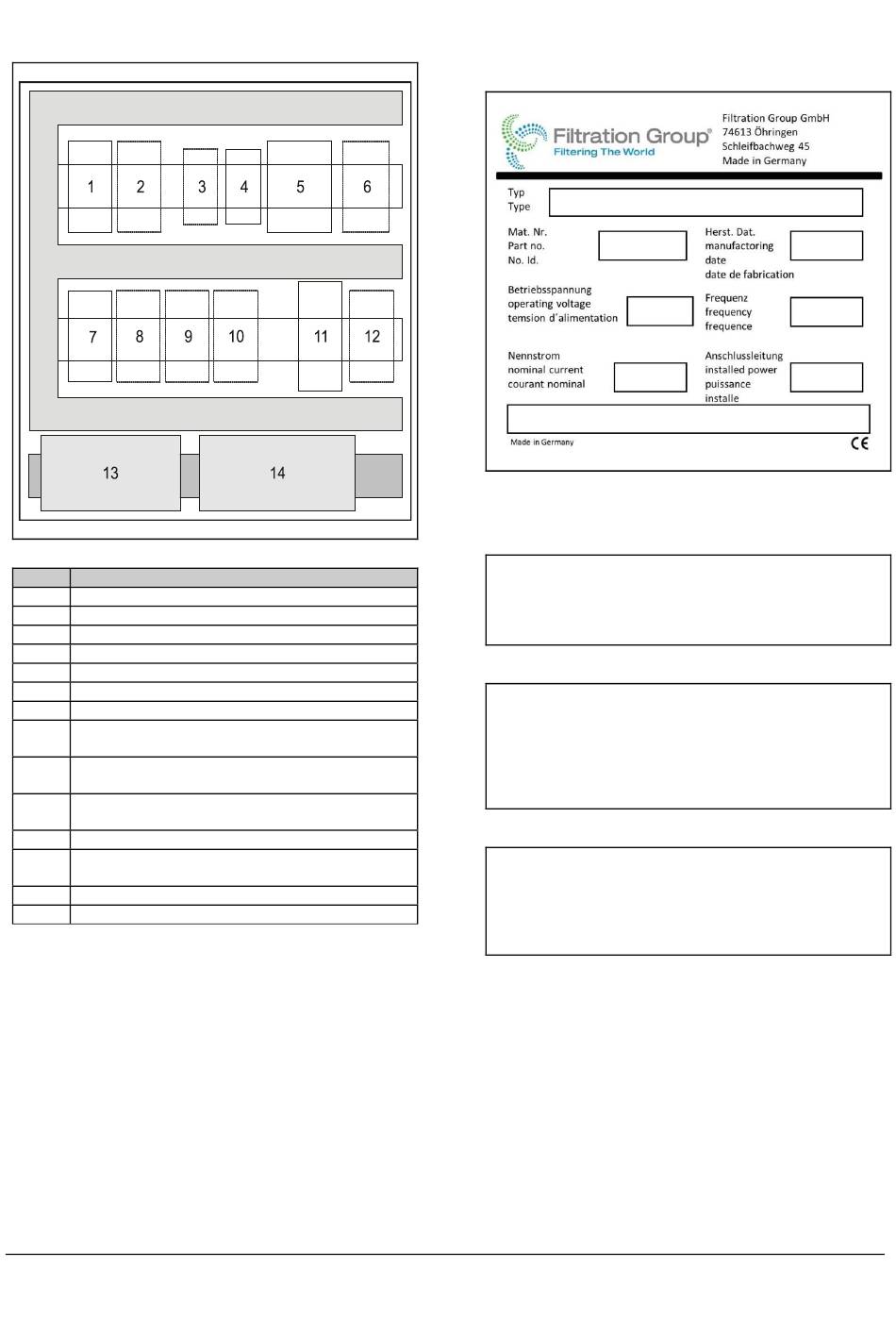

Fig. 2: Components of the E900
No. Components
1 Motor circuit breaker Q1
2 Pump MS (optional)
3 Time relay (optional)
4 Relay K4
5 Siemens logo KF1
6 Expansion module
7 Filter motor contactor QA1
8 Mains contactor (optional)
Pump control
9 Delta (optional)
Pump control
10 Star (optional)
Pump control
11 Power supply T1
12 F1 27 (optional)
Fuse if backup fuse > 10 A
13 Terminal strip X1
14 Terminal strip X2
Translation of the original instructions MFS-E900, Filtration Group GmbH, 26.09.19, Mat. No. 72370026, Version 05
7 Technical data
Order-specific data
Fig. 3: Name-plate
The order-specific data can be taken from the name-plate.
Mechanical:
Width: .................................................................. 400 mm
Depth (incl. cover): .............................................. 210 mm
Height: ................................................................. 500 mm
Weight: .................................................................. 3500 g
IP protection: .............................................................IP65
Electrical / pneumatic:
Supply voltage: .............................. 230 , 400... 500 V AC
........................................... (190 ... 250 V AC selectable)
Frequency: ..................................................... 50 to 60 Hz
Insulation: .............................. Creepages and clearances
...................................................acc. to VDE 0110, Gr. C
Output voltage: ................................................... 24 V DC
Max. output current: ..................................... 5 A per relay
Ambient conditions:
Ambient temperature: ............................... -20°C to +60°C
Hazardous areas: ............................. Refer to section 7.1,
...................................................... "Explosion protection"
Mounting position: ...................................................... Any
Mounting location: .............................. Free from vibration
Atmosphere: ...............................Dust-free, non-corrosive
