13 Settings on the micro-PLC
 Observe the LOGO! controller instructions.
A basic knowledge of how the LOGO!
controller works is assumed.

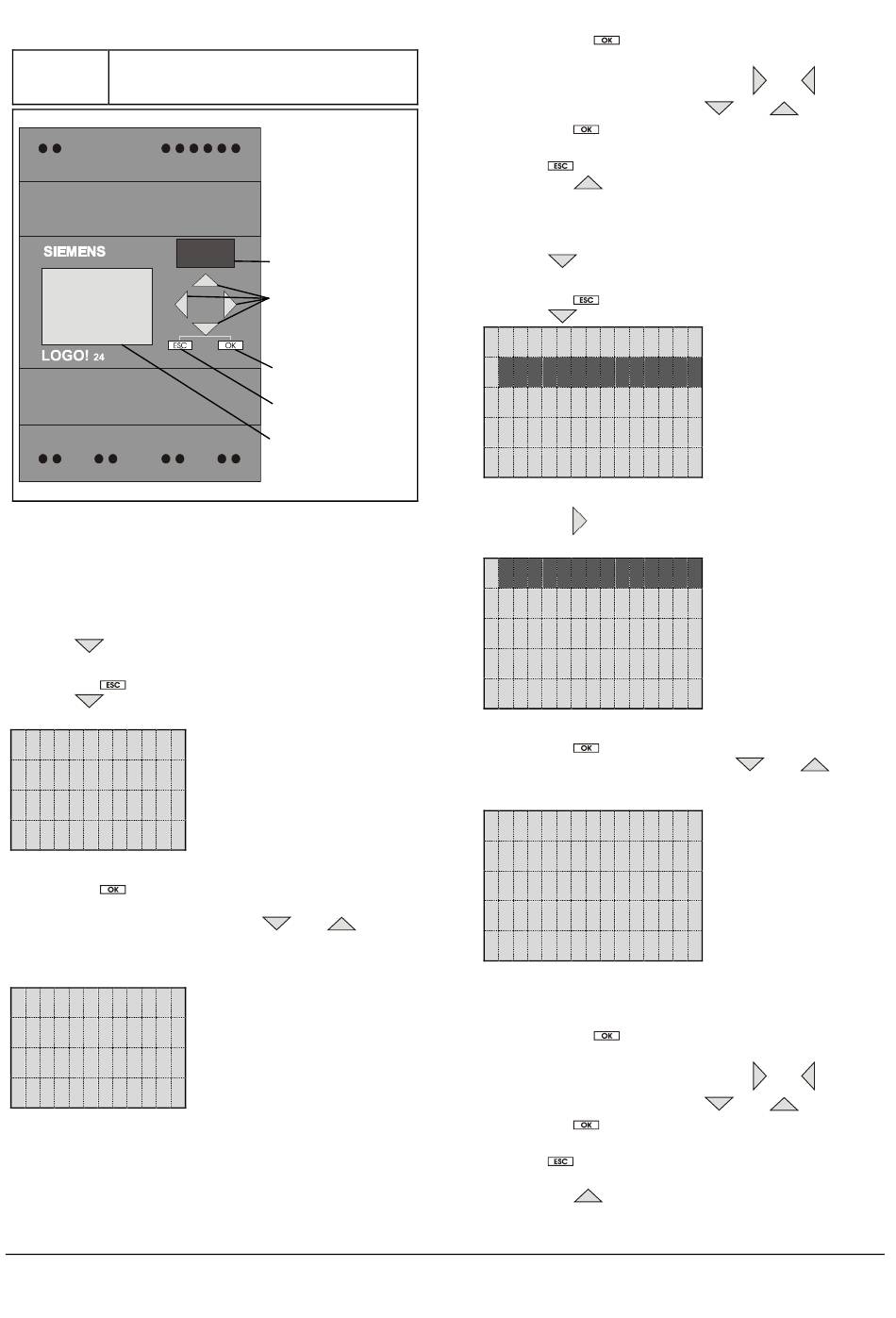

Fig. 9: LOGO! controller
13.1 Changing the parameter values
It may be necessary to change the parameter values in
order to adapt the software to the actual operating
conditions.
13.1.1 LOGO! Version 0BA6
 Press
repeatedly until the signal states (time, I, Q or
M) are displayed.
 Press the
key.
 Press
repeatedly until "Set Param" is marked.
S t o p
> S e t P a r a m
S e t C l o c k
P r g N a m e
Marking "Set Param"
Fig. 10:
 Press the
key.
 The first parameter (B20) is displayed.
 Mark the required parameter with
this case B55).
 The parameter is displayed.
B 5 5
T H = 0 2 : 0 0 s
T L = 0 1 : 0 0 h
T a = 0 0 : 0 0
Fig. 11: Parameter B55
Ta = Actual time value
Page 10
Translation of the original instructions MFS-E900, Filtration Group GmbH, 26.09.19, Mat. No. 72370026, Version 05
Program module
Arrow keys
"OK" key
"ESC" key
Display
and (e.g. in
 Confirm with
.
 The cursor jumps to the first editable value.
 Mark the value you want to edit with
 Enter the required value with
 Press the
key.
 The new value is now stored.
 Press
twice.
 Press the
key.
 The controller shows the normal operating mode again.
13.1.2 LOGO! Version 0BA8
 Press
repeatedly until the signal states (time, I, Q or
M) are displayed.
 Press the
key.
 Press
repeatedly until "Program" is marked.
S t o p
P r o g r a m
S e t u p
N e t w o r k
D i a g n o s t i c s
Marking "Program"
Fig. 12:
 Press the
key.
S e t P a r a m e t e r
P r o g N a m e
Marking "Program"
Fig. 13:
 Press the
key.
 Mark the required parameter with
this case B55).
B 5 5 1 / 1
T H = 0 2 : 0 0 s
T L = 0 1 : 0 0 h
T a = 0 0 : 0 0
Fig. 14: Parameter B55
Ta = Actual time value
 Confirm with
.
 The cursor jumps to the first editable value.
 Mark the value you want to edit with
 Enter the required value with
 Press the
key.
 The new value is now stored.
 Press
repeatedly until the signal states (time, I, Q or
M) are displayed.
 Press the
key.
 The controller shows the normal operating mode again.
and .
and .




and (e.g. in
and .
and .
