9.2 Connecting the filter to the control cabinet
Connecting
cable
Motor
Ext. interlock Differential pressure switch

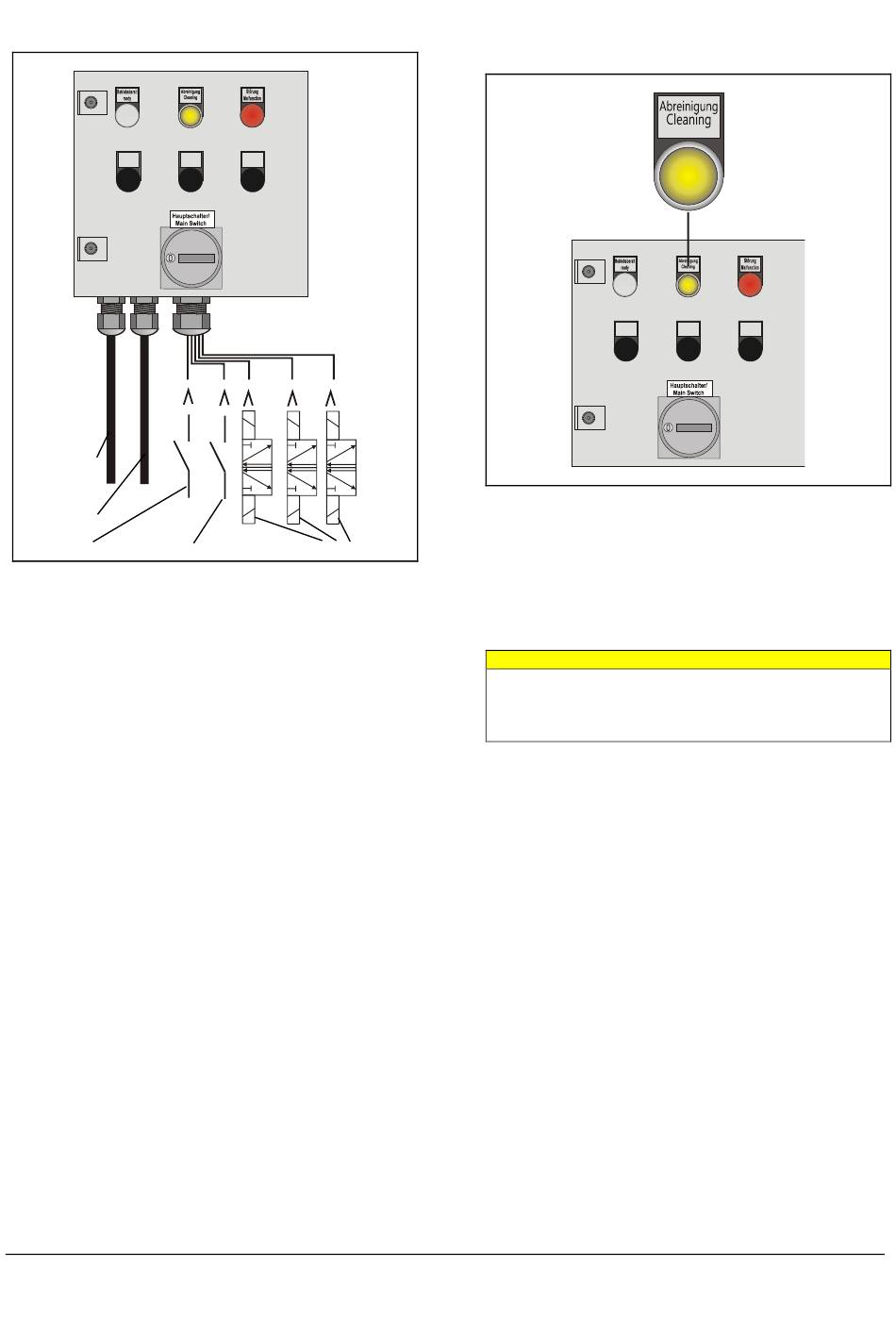

Fig. 6: Connecting a filter to the controller
 Open the cover of the control cabinet.
Terminal block X1:
 Feed line and motors.
Terminal block X2:
 Pressure sensors and (ball) valves.
Translation of the original instructions MFS-E900, Filtration Group GmbH, 26.09.19, Mat. No. 72370026, Version 05
10 Manual mode
Fig. 7: Manual cleaning
10.1 Starting a manual cleaning cycle
 Press the illuminated "Cleaning" button
Valves
 The button lights up.
 The filter is cleaned.
11 Control options
The E900 can be supplied in several different versions with
different PLC programs. The PLC which is used here is a
Siemens LOGO! controller.
Logosoft AK02 (standard software installed in the
control cabinet)
 Differential pressure-controlled cleaning with overriding
 The drain valve opens after a preset time
 Pump interrogation (external interlock)
CAUTION!
 This translation of the original instructions is only valid
for the AK02 software.
 Please refer to the separate instructions supplied with
the software if any other software is used!
time-controlled cleaning (p contact or programmed time,
whichever occurs first); time-controlled cleaning is
activated once an hour but can be deactivated with B22.
