Glossary
Differential pressure (p):
Pressure difference between the dirty side and
the clean side of the automatic filter.
4
General information
4.1
Manufacturer
Filtration Group GmbH
Schleifbachweg 45
D-74613 Öhringen
Phone +49 7941 6466-0
Fax +49 7941 6466-429
fm.de.sales@filtrationgroup.com
www.fluid.filtrationgroup.com
4.2
Information about the original instructions
FG Mat. No. ........................................................ 72370026
Date: ................................................................ 26.09.2019
Version: .......................................................................... 05
5
Intended use
PROHIBITED:
Use for purposes other than described below
without prior consultation with the manufacturer.
Use in hazardous areas.
Potentially dangerous situation!
This filter controller is only allowed to be used in
accordance with the operating conditions specified in the
contract documentation and in the original instructions.
All forms of use which deviate from or exceed the limits of
use described above are considered to be contrary to the
intended purpose. The manufacturer is not liable for any
damage resulting from such use.
The filter controller can be used to control the following
automatic filters:
FRx-x
FKx-x
AF71 - AF179
FMAx
Use for other purposes is prohibited without prior
consultation with the manufacturer!
To start a cleaning cycle
A cleaning cycle can be started in the following ways:
Manually
Based on the differential pressure
By means of a time switch
Page 4
Translation of the original instructions MFS-E900, Filtration Group GmbH, 26.09.19, Mat. No. 72370026, Version 05
DANGER!
CAUTION!
6
Functional description
6.1
Operating principle
The filter controller monitors the pressure difference
between the dirty side and the clean side of the automatic
filter.
If the set differential pressure is exceeded, the signal for
cleaning the automatic filter ("Flushes acc. to p") is tripped.
6.2
Control elements

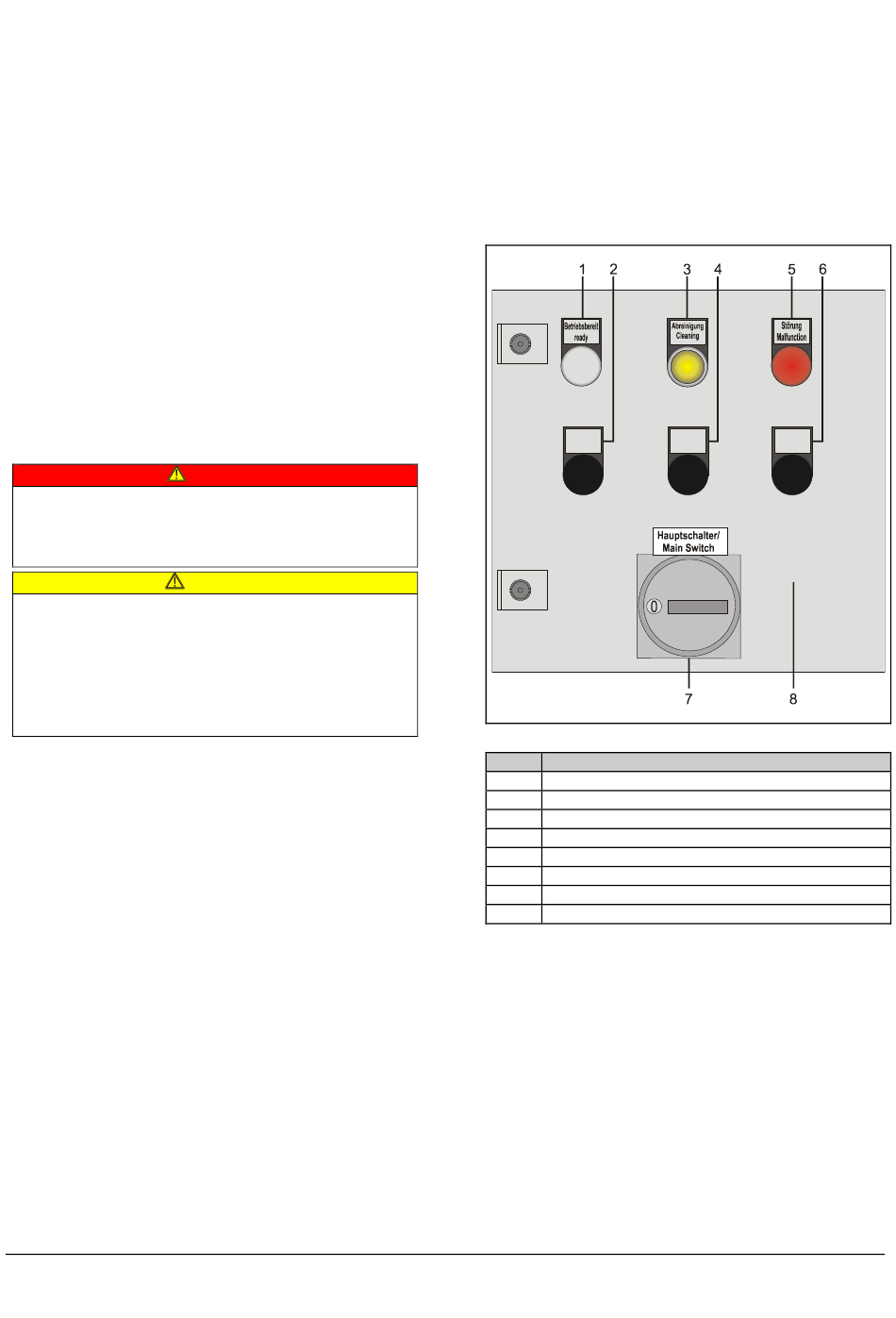

Fig. 1: Control elements of the E900
No.
Control elements
"Ready" lamp
1
2
Not assigned
Illuminated "Cleaning" button
3
4
Not assigned
"Malfunction" lamp
5
6
Not assigned
7
Main switch
8
Control cabinet
