ADJUSTMENTS
TO SET THE BEVEL INDICATOR AND BEVEL
STOPS AT 0˚ AND 45˚
See Figures 61 - 64.
The angle settings of the saw have been set at the factory and,
unless damaged in shipping, should not require setting during
assembly. After extensive use, it may need to be checked.
 Unplug the saw.
 Raise the blade.
 Remove the blade guard assembly.
To check for squareness, 0˚ position:
 Release the bevel locking lever.
 Push the bevel adjusting handwheel to the left as far as
possible.
 Lock the bevel locking lever.
 Place the combination square against blade. Make sure
square is not touching the tip of one of the saw teeth.
If the blade is not an exact (0°):
 Release the bevel locking lever.
 Turn the bevel handle until the bevel indicator points to
5°-10°.
 Turn 0° stop screw 1/4 turn counterclockwise.
 Place a combination square beside the blade on the left
and using the square, set the blade at 0°.
 Lock the bevel locking lever.
 Watching for blade movement against the square, turn 0°
stop screw clockwise. When you see slight movement,
stop turning.
 Repeat above steps to recheck and readjust blade angle
as needed.
Once blade is square (0°) to the table:
 Check bevel indicator.
 If indicator is not pointing to the 0º mark on the bevel
scale, loosen the indicator adjusting screw and adjust
indicator.
 Retighten screw.

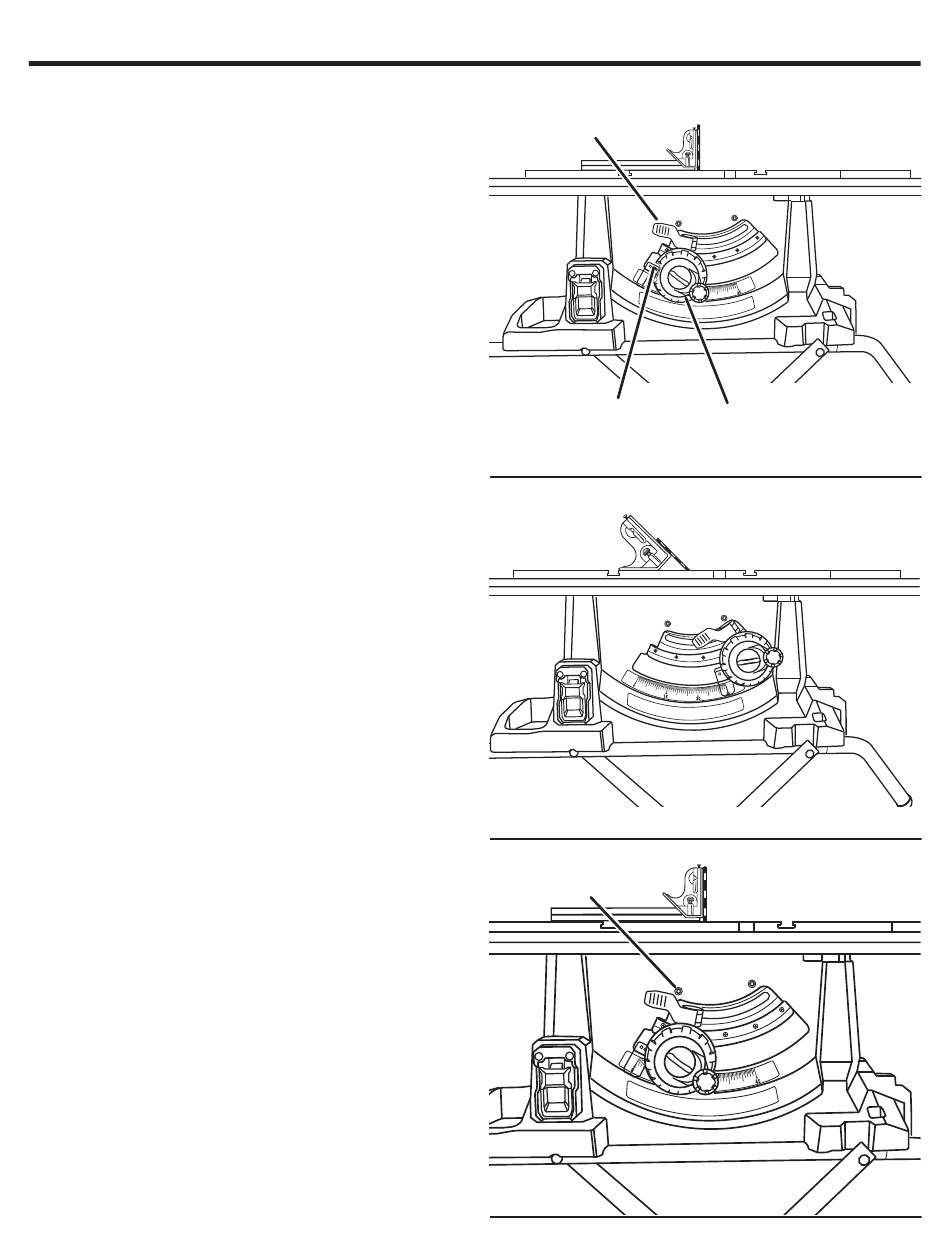

BEVEL LOCKING
LEVER
INDICATOR
ADJUSTING SCREW
0˚ STOP
SCREW
40 − English
BLADE AT 0˚ POSITION
BEVEL ADJUSTING
HANDWHEEL
BLADE AT 45˚ POSITION
Fig. 61
Fig. 62
Fig. 63
