ASSEMBLY
MOUNTING THE LEG STAND ON THE TABLE
SAW BASE

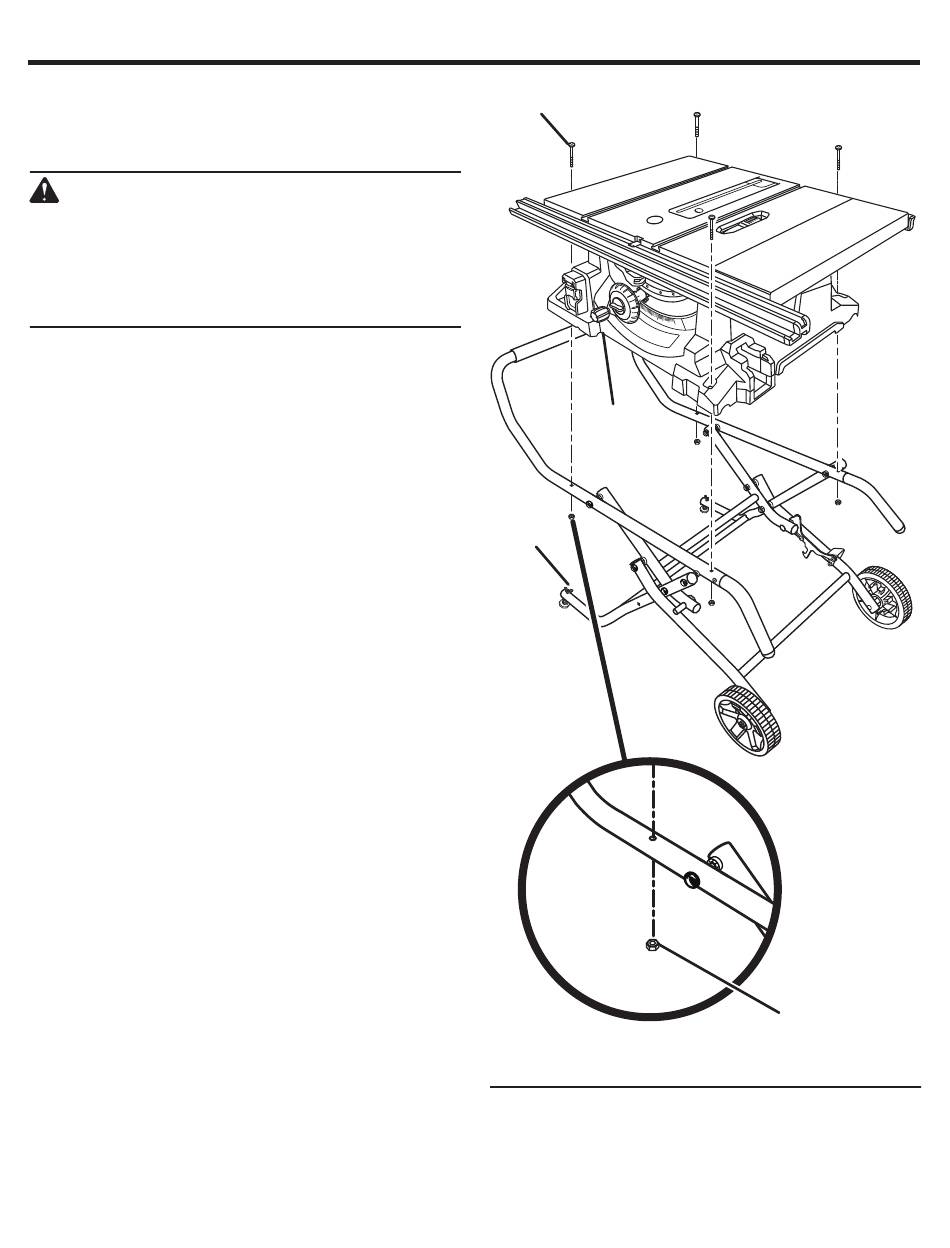

See Figure 13.
WARNING:
Do not lift the saw without help. The saw weighs
approximately 80 lbs. Hold it close to your body.
Keep your knees bent and lift with your legs, not
your back. Ignoring these precautions can result
in back injury.
 Open leg stand as described on page 23.
 Place saw base on the leg stand. Align the holes in the
table with the holes in the end braces.
 Insert a bolt through the hole in the table saw and into
the hole in the stand. Hand tighten using hex nut.
 For the remaining holes, insert the bolts through the hole
in the saw base and into the hole in the stand, then secure
to the stand using a hex nut.
 Tighten all hardware with a wrench and hex key. You may
find it helpful to use a wrench to hold the head of the bolt
and the hex key to tighten the hex nut.
 Move the leg set to desired location. Adjust the leveling
foot by turning wing nuts.
BOLT
SAW BASE
WING
NUT
17 − English
HEX NUT
Fig. 13
