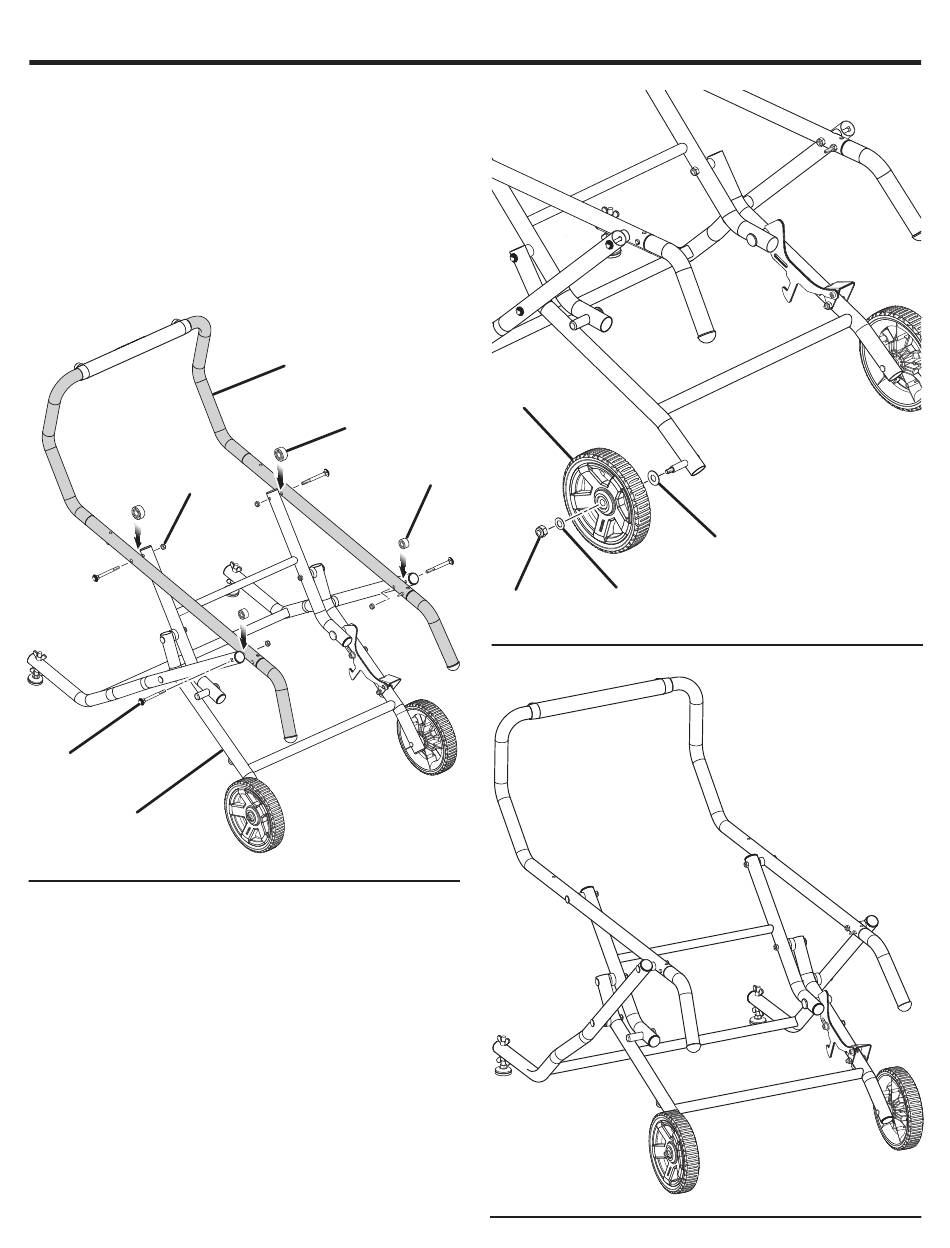

ASSEMBLY
 With the curve handle turned downward, secure the upper
tubes to the leg stand using carriage bolts, spacers, and
lock nuts.
 Slide the flat washer (large), wheel, and flat washer (small)
onto the axle through the hole in the center of the wheel.
Secure in place using lock nut.
 Repeat with the second wheel.
 Before use, verify the release lever locks the leg stand
securely. If the leg stand will not lock, do not use; contact
an authorized service center for assistance.
LOCK
NUT
CARRIAGE
BOLT
LEG STAND
UPPER
TUBE
LARGE
SPACER
SMALL
SPACER
Fig. 10
16 − English
WHEEL
FLAT WASHER,
LOCK
FLAT WASHER,
NUT
SMALL
LARGE
Fig. 11
Fig. 12
