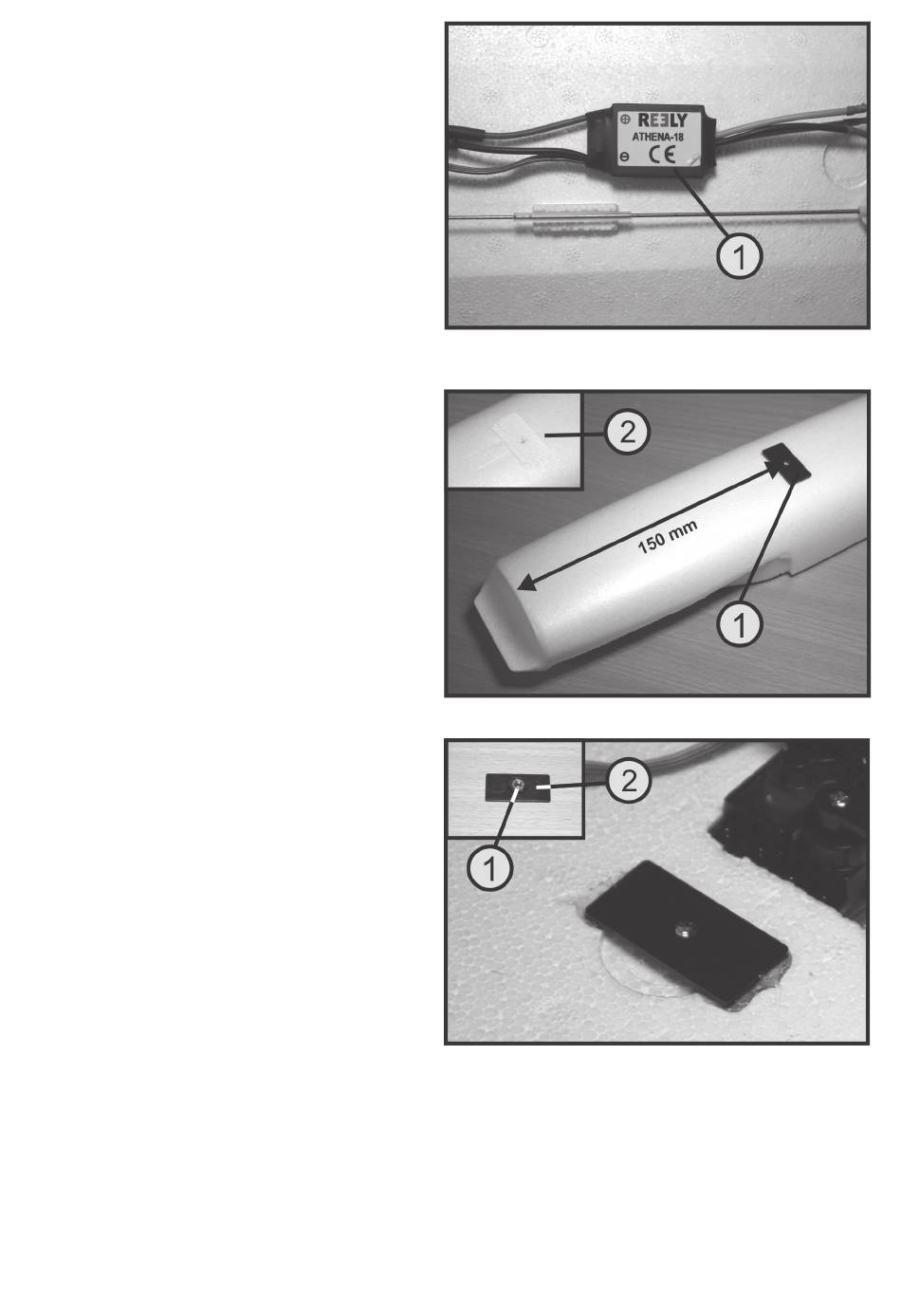

Attach the speed controller (1) to the fuselage bottom part using servo tape.
h) Installing the fuselage bottom part
Take the part (1) needed to lock the fuselage bottom part from the injection
moulding tree.
Attach the locking part to the fuselage bottom as shown in the adjoining
illustration.
Use a box cutter to cut a recess (2) into the bottom and glue the locking part
into the recess using 5-minute epoxy glue.
Provisionally put the fuselage bottom part onto the fuselage top part and stick
a long screw driver through the hole in the surface lock.
Mark the position where the counter surface of the wing attachment is to be
glued on.
Glue the nut (1) into the plastic counter surface (2) using superglue.
Use a box cutter to cut a recess into the bottom of the fuselage and glue the
counter surface upside down into the recess using 5-minute epoxy glue.
Figure 25
Figure 26
Figure 27
