TECHNICAL DATA
EN
MODELS PONTOON
MOTOR OUTPUT
MOTOR SUPPLY VOLTAGE
Maximum pull
Maximum working load
Working load
Current absorption @ working load (1)
Maximum chain speed (2)
Maximum chain speed @ working load (2)
Motor cable size (3)
Protection circuit breaker (4)
Deck thickness (5)
Weight
(1) After an initial period of use.
(2) Measurements taken with rope 6 mm.
(3) Minimum allowable value for a total length L= < 20m (see connection diagrams). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, studs can be supplied for greater deck thicknesses.

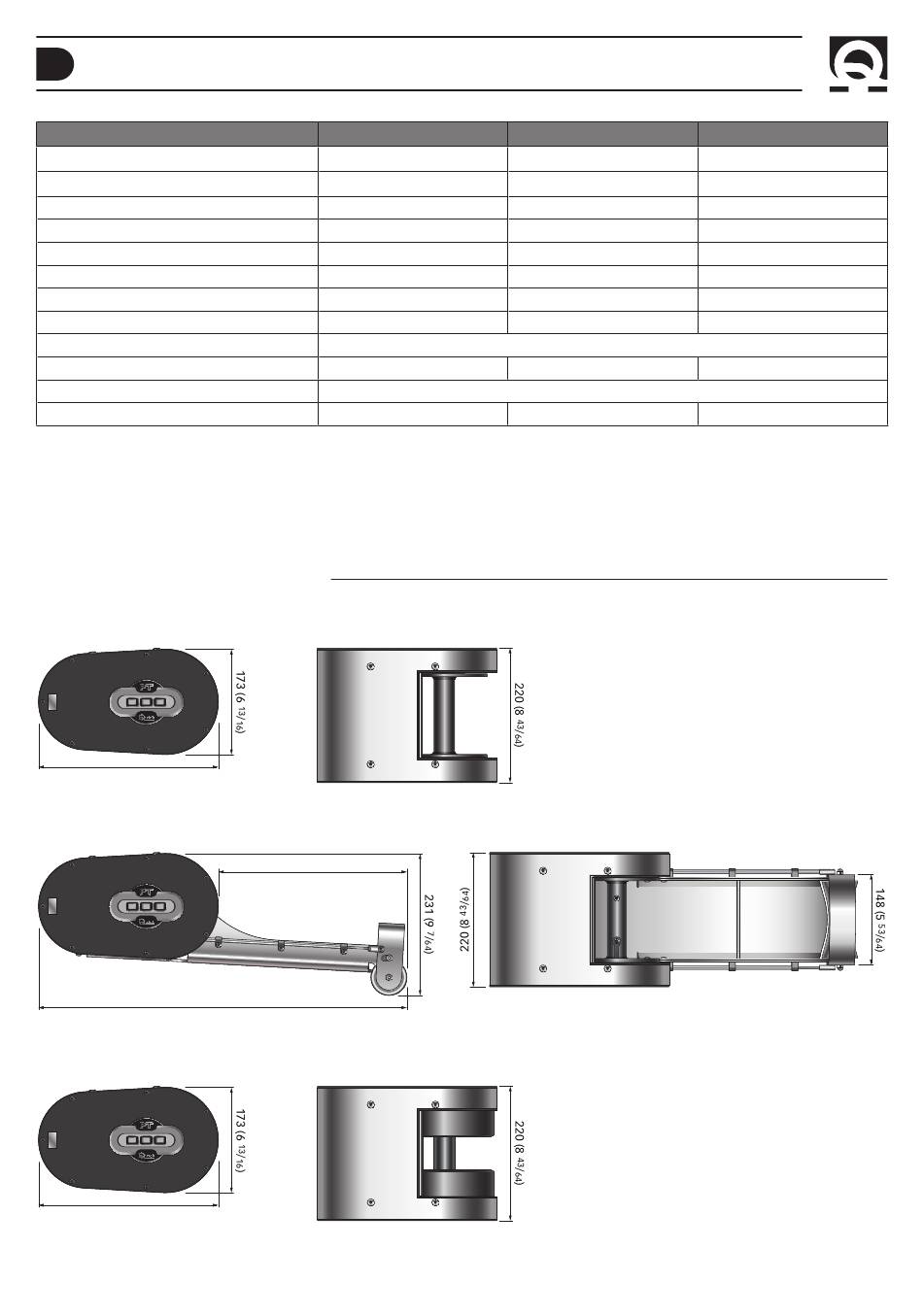

DIMENSIONS OF MODELS mm ( inch )
PT 350 R - PT 700 R - PT 1000 R
294 (11
37
/
)
64
PTR WITH BOW-ROLLER ACCESSORY (ONLY MODELS 350 - 1000)
596 (23
PT 350 G - PT 700 G - PT 1000 G
294 (11
37
/
)
64
F
Quick
reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
®
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
14
PT 350 R - PT 350 G
150 W
12 V
260 kg (573,2 lb)
100 kg (220,4 lb)
40 kg (88,1 lb)
13 A
20,8 m/min (68,2 ft/min)
19,3 m/min (63,3 ft/min)
15 A
10 kg - 22 lb
308 (12
9
/
)
64
/
)
29
64
PT 700 R - PT 700 G
250 W
12 V
600 kg (1322,7 lb)
220 kg (485,0 lb)
80 kg (176,3 lb)
22 A
20,8 m/min (68,2 ft/min)
18,1 m/min (59,3 ft/min)
10 mm
(AWG7)
2
20 A
20 ÷ 40 mm (3/4" ÷ 1" 9/16 ft)
10,2 kg - 22,4 lb
PONTOON 350 - 700 - 1000 - REV002A
PT 1000 R - PT 1000 G
350 W
24 V
750 kg (1653,4 lb)
250 kg (551,0 lb)
100 kg (220,4 lb)
16 A
21,5 m/min (70,5 ft/min)
18,3 m/min (60,0 ft/min)
30 A
10,2 kg - 22,4 lb
