en

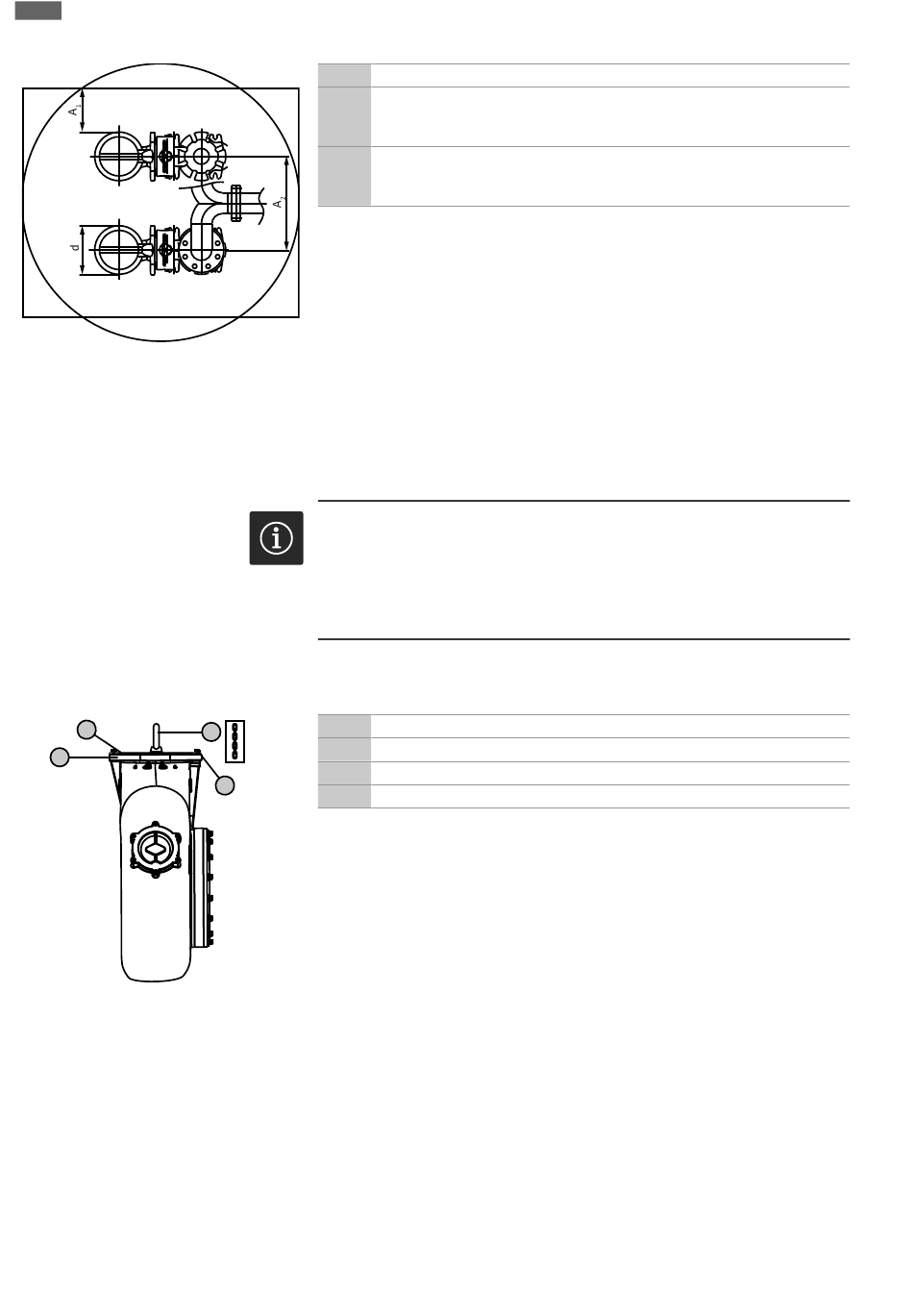

Fig. 3: Minimum distances
6.4.2 Unloading pumps delivered in ho-
rizontal position
2
1
Fig. 4: Attachment point installation
82
Installation and electrical connection
d Diameter hydraulics housing
Minimum distance from the wall:
A - alternating operation: min. 0.3 × d
1
- parallel operation: min. 1 × d
Distance to pressure pipes
A - alternating operation: min. 1.5 × d
2
- parallel operation: min. 2 × d
To prevent excessive tension and bending forces being applied to the pump, the pumps
can, depending on their size and weight, be laid out horizontally for delivery. Delivery is
on specially designed transport frames. Please observe the following work steps when
unloading the pump.
NOTICE
Use only properly functioning lifting equipment!
Use only properly functioning lifting equipment to lift and lower the pump. Ensure
that the pump does not become jammed during lifting and lowering. Do not exceed
the maximum bearing capacity of the lifting equipment! Check that lifting equip-
ment is functioning properly before use!
Install the supplied attachment point (provided by the customer) on the pressure
port.
1 Pressure connection
4
2 Load bar
3 Fixation load bar/pressure connection
3
4 Attachment point for angular loading up to 90 °
‡
Load bar with the corresponding bearing capacity for fixation of the attachment
point
‡
Attachment point for angular loading up to 90 ° (e.g. "Theipa" type)
‡
Fixation material for the load bar
1. Place the load bar onto the pressure connection and attach it using two holes that
are opposite each other.
2. Fix the attachment point to the load bar.
▶ Attachment point installed, pump prepared for attaching.
