English
1. Basic safety information
Before first use, please read the
operating instructions careful-
ly. These provide important
safety information and infor-
mation concerning use and
maintenance of the tool.
This boring tool is designed for roughing
and finishing bores in metallic materials.
Specific information on the machining of
individual metallic materials is not the
subject of these operating instructions.
No other application is permitted and
could be dangerous. The manufacturer
cannot be held responsible for damage
or injury caused by improper use.
A damaged tool could endanger your
safety! Decommission the tool immedia-
tely and contact your suppliers.
This tool complies with the prescribed
safety regulations. Repairs must be
undertaken only by trained personnel.
Improper repairs can represent a con-
siderable risk for the user. Warranty pro-
visions can be implemented only in the
event that original Wohlhaupter spare
and accessory parts are used.
Keep the Operating instructions for use
in a safe place for future use.
2. Application and operation

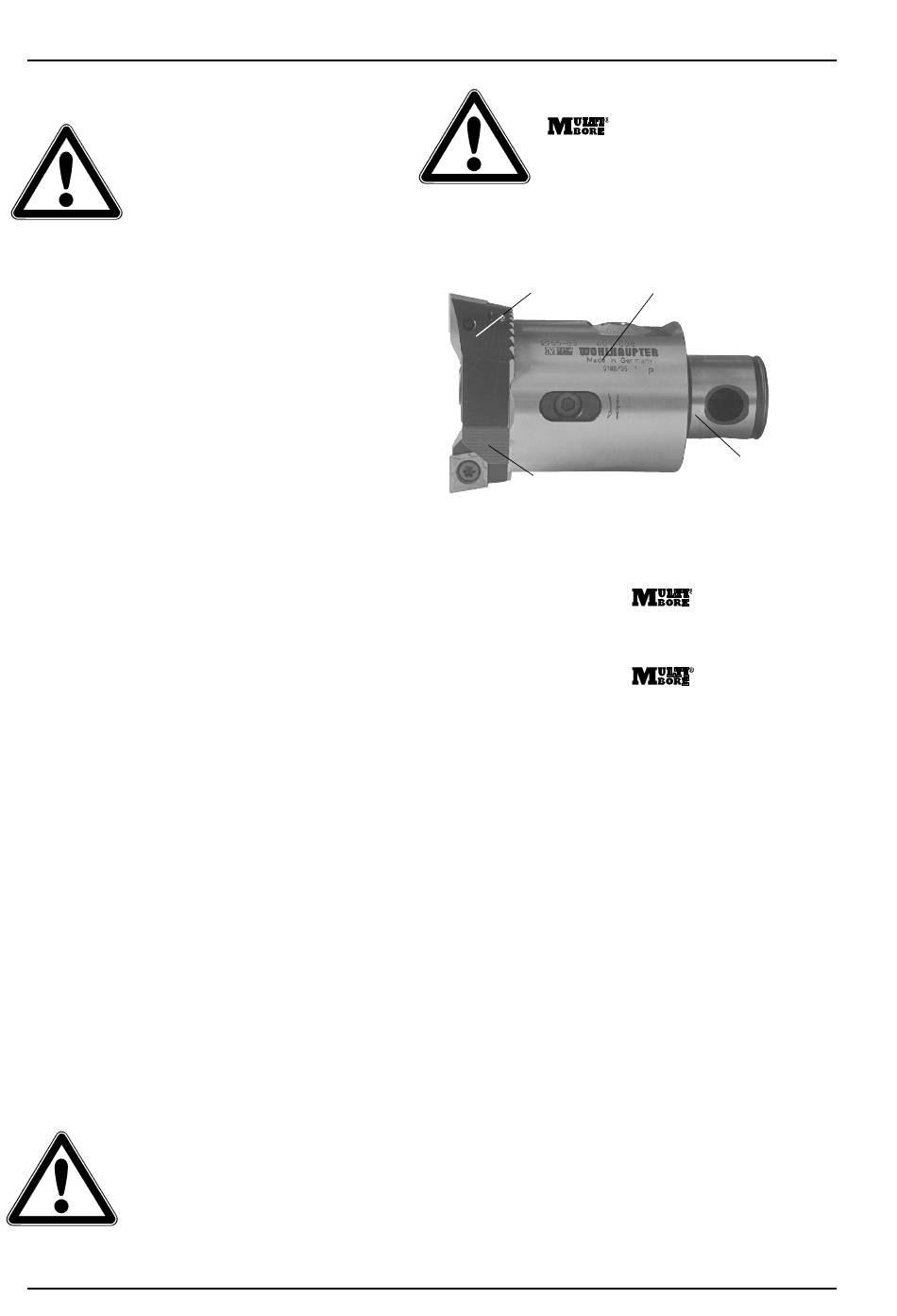

The serie Combi-Line boring tools are
designed for rough machining and finish
machining of precision bores in one
operation from 24,5 – 201 mm (.965" –
7.913") diameter.
This series consists of 9 individual tools
1
, which can each be equipped with
two insert holders
replaceable inserts.
Combi-Line tools are not suitable
for pure rough machining. The
depth of cut must not exceed
the max. permissible data
(page 15) at the finishing end!
10
2
and
3
for various
If the boring depth is increased
by
-reducers, a smaller
external reducer diameter must
be selected than the machi-
ning or interference circle diameter.
2
3
3. Tool data
• Equipped on the machine side with
WOHLHAUPTER
• The dimensions are identical to the
dimensions of most tools in the
WOHLHAUPTER
• Provided in the factory with serrations
for form-fitted and non-positive clam-
ping of insert holders for various repla-
ceable inserts.
• With 2 insert holders, axial height
displacement or level cutting, for
roughing and finishing.
• In addition to the insert holders in the
standard range, additional insert hol-
ders are available for other replaceable
inserts.
• Internal cutting fluid feed up to the
cutting edges.
• The transmission area is protected
against penetration by dirt and cutting
fluid.
• The tool is balanced.
• Maintenance-free.
1
4
4
connection
range.
.
