GE Profile CustomStyle 22 Série Manuel D'utilisation Et D'installation page 29

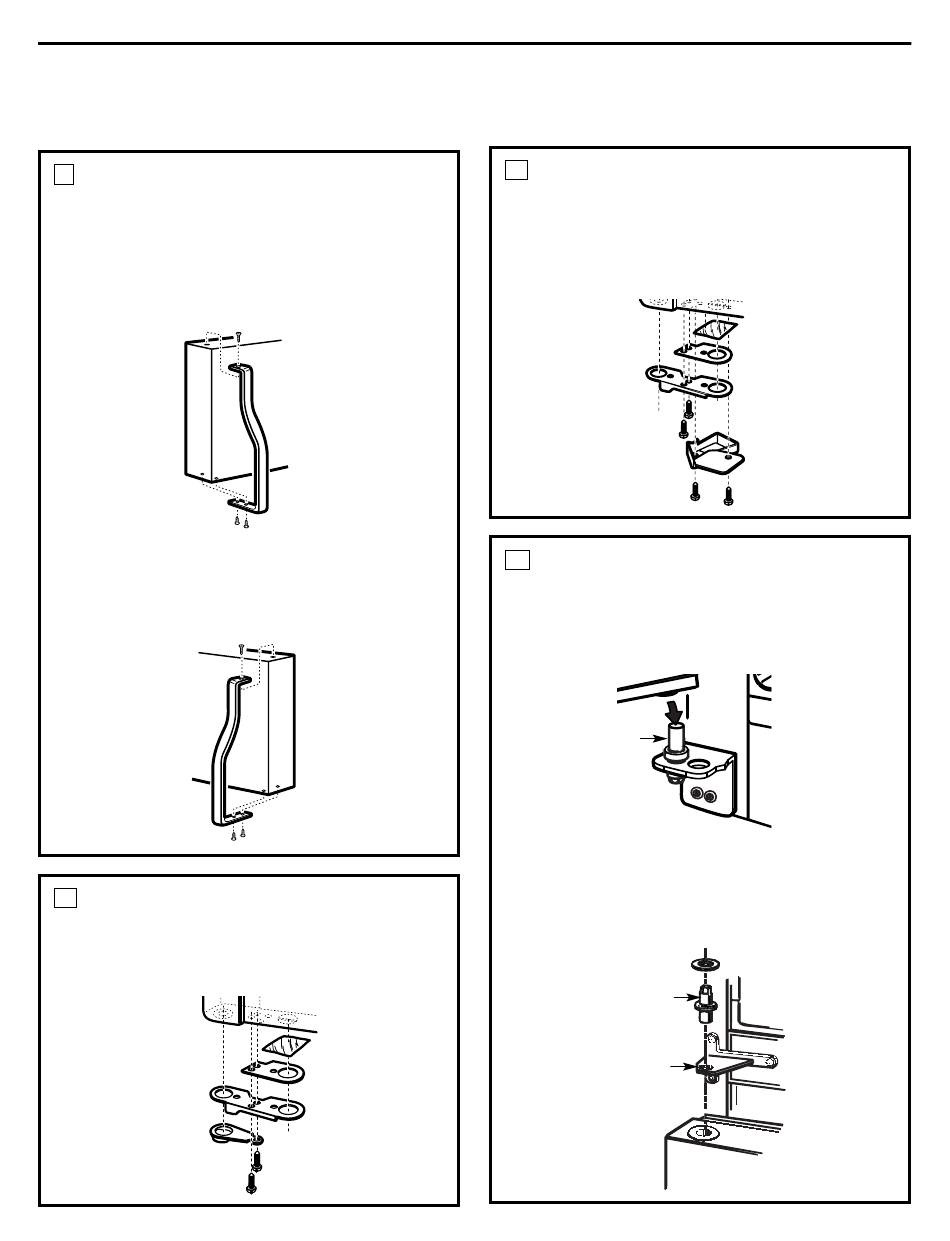

9 TRANSFER FREEZER DOOR
HANDLE TO THE RIGHT
CAUTION: Be careful not to scratch the door
when removing and replacing the handle.
The handle fits tightly on the door.
Remove the screws holding the handle to the top
and bottom of the door. Remove handle.
Move the plug button on the right side of the door
to the handle screw hole on the left side.
Reattach the handle on the opposite side using the
holes closest to the edge of the door.
REINSTALL DOOR STOPS, CAM
10
RISER AND CAM CLOSURE
On the freezer door, install the left hand door stop,
cam riser, spacer shims and aluminum foil to the left
bottom flange.
Installation Instructions
29
REINSTALL DOOR STOPS, CAM
10
RISER AND CAM CLOSURE
(CONT.)
On the refrigerator door, install the left hand door
stop, cam closure, spacer shims and aluminum foil to
the left bottom flange.
REHANG THE REFRIGERATOR
11
DOOR
Lower the refrigerator door onto the bottom
hinge pin.
Be sure the washer is in place.
Hinge Pin
Straighten the door and line it up with the center
hinge bracket.
Reinstall the center hinge pin with a 7/16" socket.
Tighten it flush to the bracket.
Hinge Pin
Center Hinge
Bracket with
Cam Riser
Refrigerator Door
