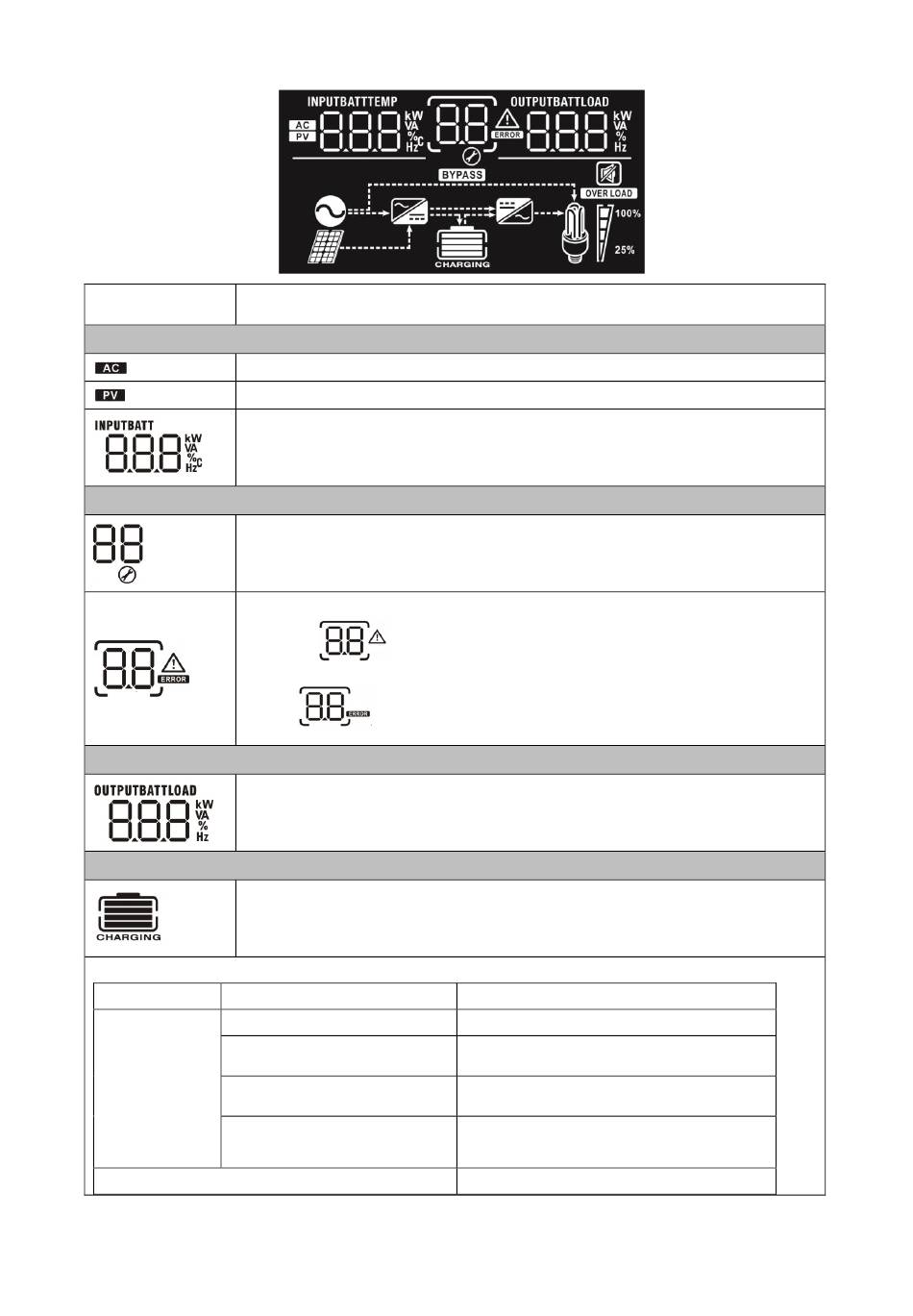

LCD Display Icons
Icon
Input Source Information
Configuration Program and Fault Information
Output Information
Battery Information
In AC mode, it will present battery charging status.
Status
Battery voltage
<25% SOC
Constant
25% ~ 50% SOC
Current mode /
50% ~ 75% SOC
Constant
Voltage mode
> 75% SOC
Floating mode. Batteries are fully charged.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com Hot Line –
Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 24 AA 59 203 08
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, charger current, charger
power, battery voltage.
Indicates the setting programs.
Indicates the warning and fault codes.
Warning:
flashing with warning code.
Fault:
lighting with fault code
Indicate output voltage, output frequency, load percent, load in VA, load in Watt
and discharging current.
Indicates battery SOC (State Of Charge) level by 0-24%, 25-49%, 50-74% and
75-100% in battery mode and charging status in line mode.
Function description
LCD Display
4 bars will flash in turns.
Bottom bar will be on and the other three
bars will flash in turns.
Bottom two bars will be on and the other
two bars will flash in turns.
Bottom three bars will be on and the top
bar will flash.
4 bars will be on.
