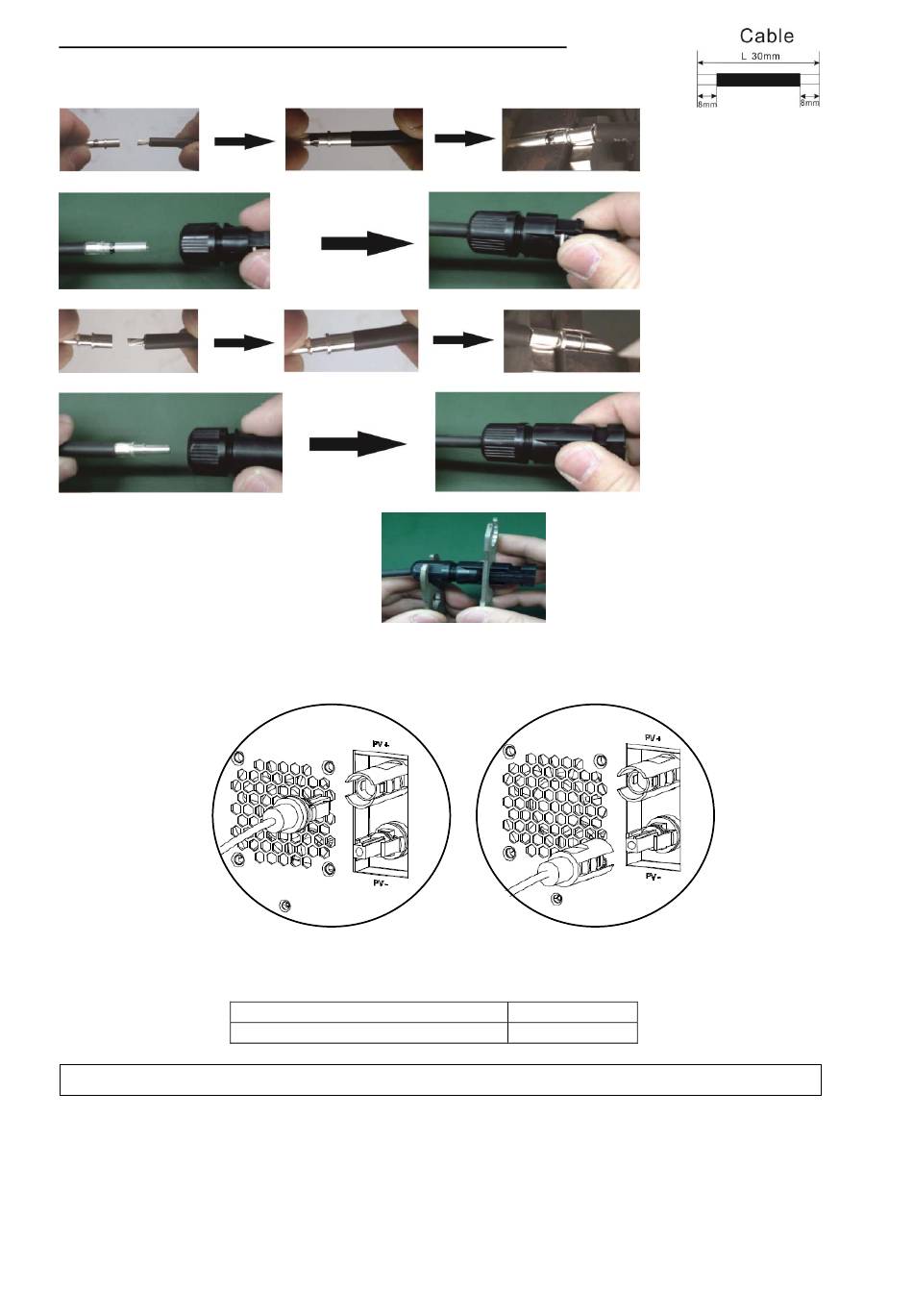

Prepare the cable and follow the connector assembly process:
Strip one cable 8 mm on both end sides and be careful NOT to nick conductors.
Insert striped cable into female terminal and crimp female terminal as shown below.
Insert assembled cable into female connector housing as shown below.
Insert striped cable into male terminal and crimp male terminal as shown below.
Insert assembled cable into male connector housing as shown below.
Then, use spanner to screw pressure dome tightly to female connector and male connector as shown below.
Step 4: Check the correctness of the polarity of connection cable on PV modules and PV input connectors. Then,
connect positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-)
of connection cable to negative pole (-) of PV input connector.
-
+
WARNING! For safety and efficiency, it's very important to use appropriate cables for PV module connection. To
reduce risk of injury, please use the proper cable size as recommended below.
Conductor cross-section (mm2)
AWG no.
4
10
CAUTION: Never directly touch the terminals of unit. It might cause lethal electric shock.
40
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com Hot Line –
Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 24 AA 59 203 08
