Operation and Display Panel

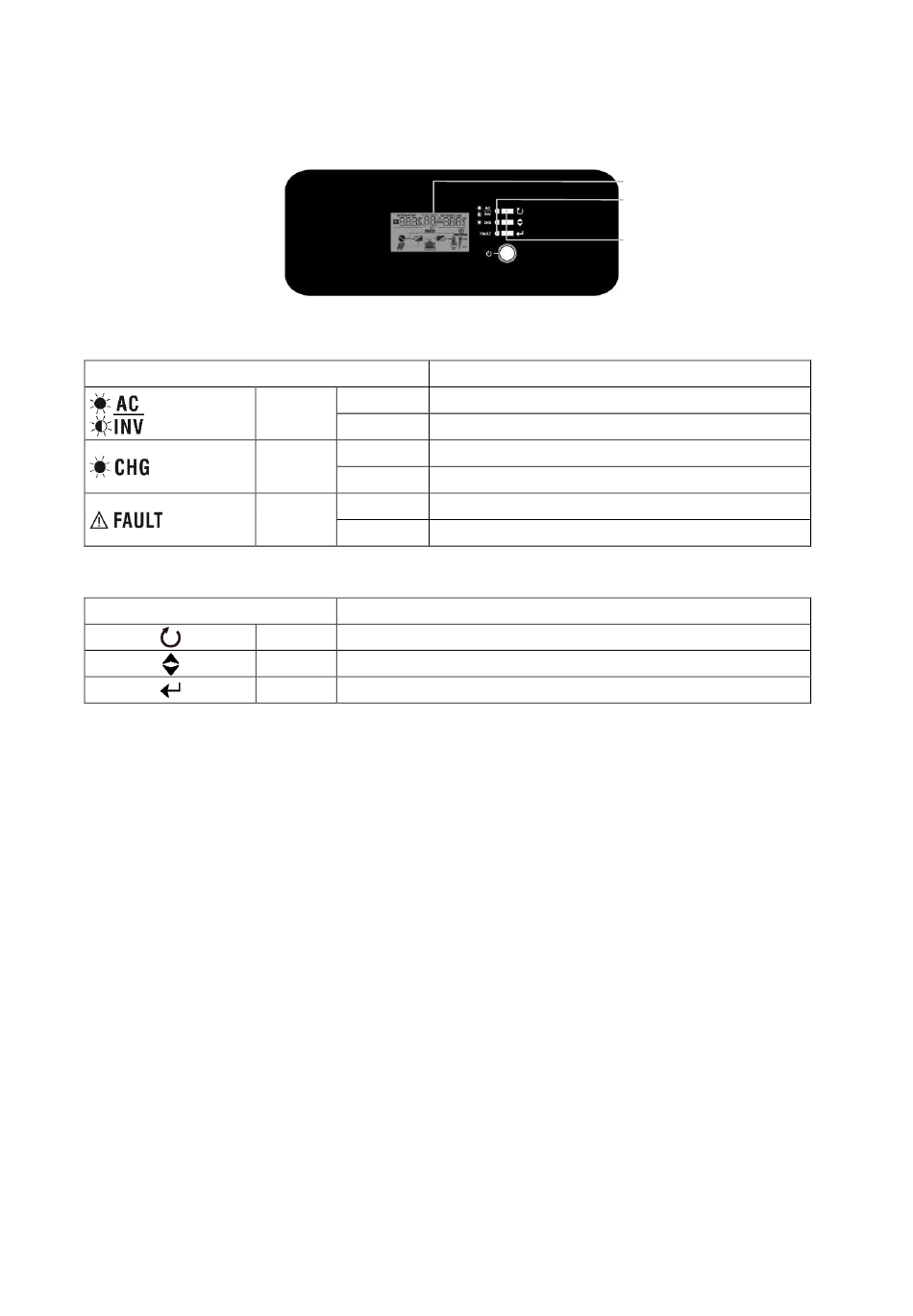

The operation and display panel, shown in the chart below, is on the top of the unit. It includes three
indicators, three function keys and an LCD display, indicating the operating status and input/output power
information.
LED Indicator
LED Indicator
Function Keys
Function Key
44
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com Hot Line –
Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 24 AA 59 203 08
Solid On
Green
Flashing
Solid On
Battery is fully charged.
Green
Flashing
Battery is charging.
Solid On
Red
Flashing
Description
ESC
To exit setting mode
SCROLL
To go to next selection
ENTER
To confirm the selection in setting mode or enter setting mode
Messages
Output is powered by utility in Line mode.
Output is powered by battery or PV in battery mode.
Fault occurs in the inverter.
Warning conditions occur in the inverter.
LCD display
LED indicators
Function keys
