Recommended Panel Configuration:
Solar Panel
Spec.
(Min in serial: 3 pcs, max. in serial: 10 pcs)
(reference)
- 350Wp
3 pcs in serial
- Vmp: 35Vdc
6 pcs in serial
- Imp: 10A
8 pcs in serial (Only for 2.5KW model)
- Voc: 44Vdc
10 pcs in serial (Only for 2.5KW model)
- Isc: 11A

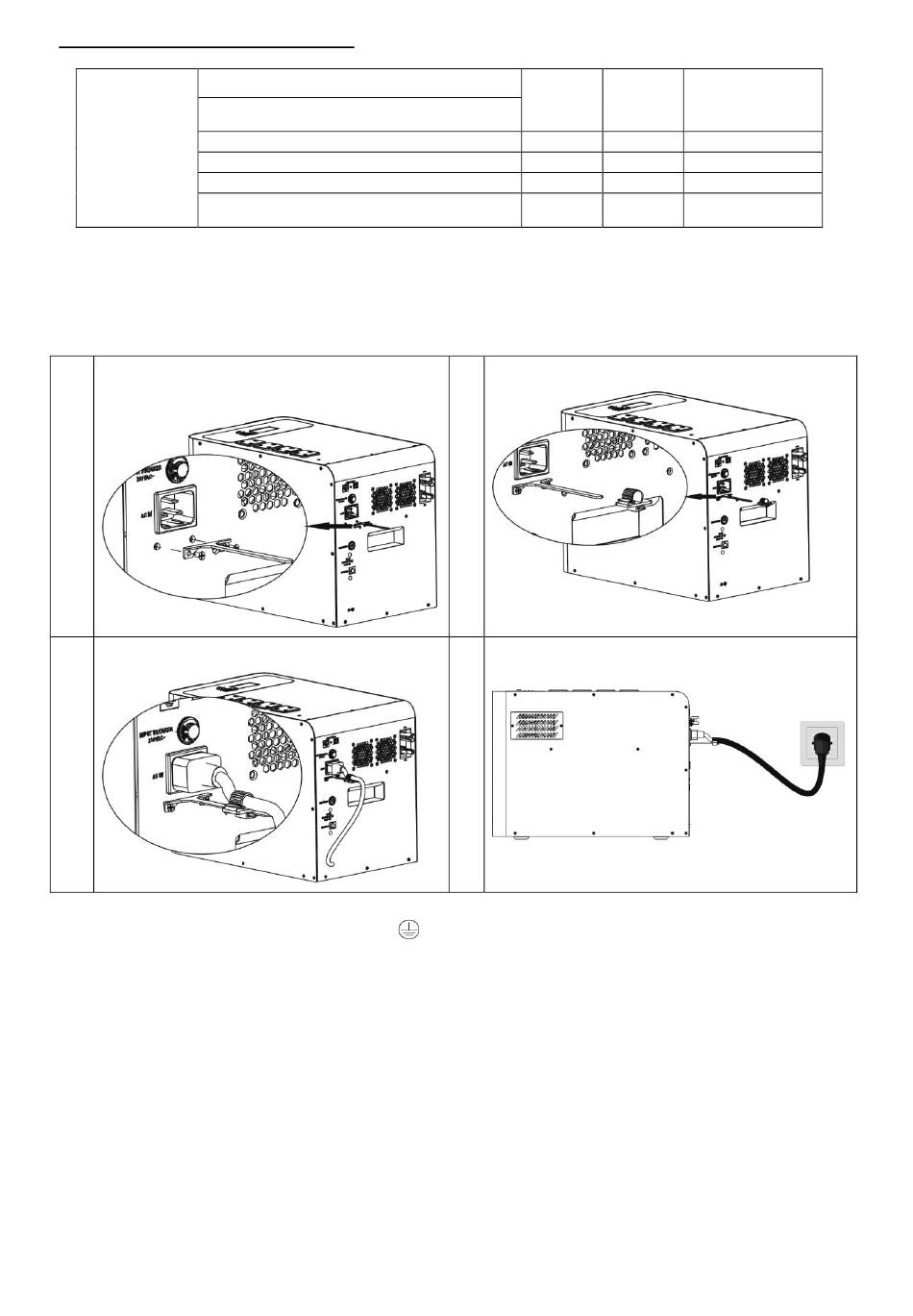

AC Input Connection
Follow below steps to plug in the input power cord (supplied in the package) to the wall outlet. The unit will
automatically charge the connected internal battery pack even though the unit is off.
Take supplied strap and fix it under the AC inlet
socket as shown below chart.
Clip wire buckle to hold the input power cable.
* Suggest to connect PE protective conductor (
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com Hot Line –
Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 24 AA 59 203 08
SOLAR INPUT
) first before AC input connection.
Q'ty of
VOC
panels
132VDC
3 pcs
264VDC
6 pcs
352VDC
8 pcs
440VDC
10 pcs
Insert wire buckle through strap.
The other end of input power cable plugs to wall
outlet.
Total input power
1050W
2100W
2800W
3500W
41
