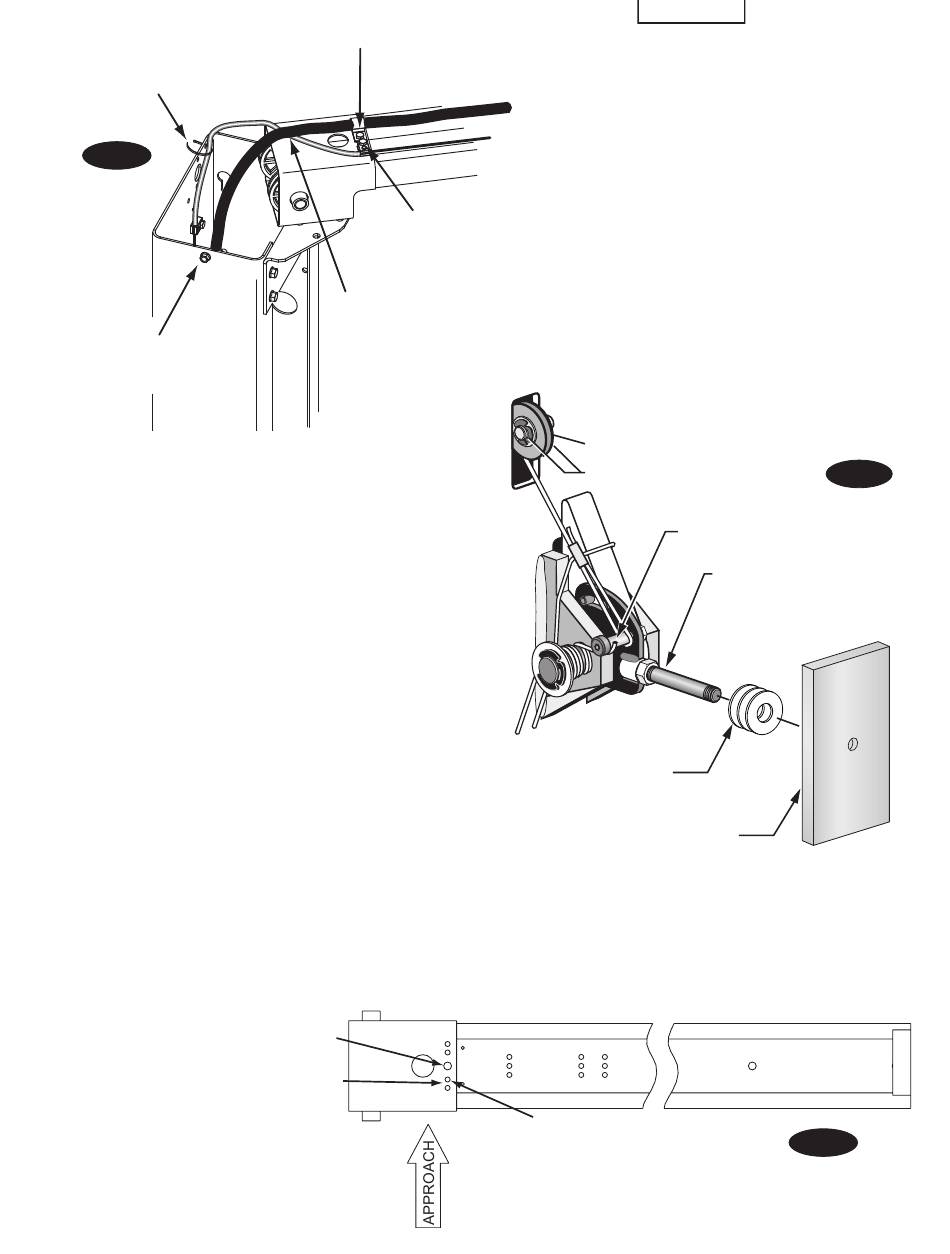

Attach to extension using
wire tie. Use hole closest
to OUTSIDE edge and on
NON-APPROACH side.
Fig. 11a
3/8"-16NC x 3/4" HHCS
and Flanged Locknut
12. Locking Latch Cable
A) Install latch cable sheave and retaining rings in upper
slot of power unit column as shown, Fig. 11c.
B) Slip loop end of cable over end of shoulder screw on
right side latch control plate, Fig. 11c.
C) Feed the other end of the cable through the latch cable
sheave slot making sure that the cable is running under
the bottom side of the latch cable sheave and inside the
right column, Fig. 11c.
D) Attach latch cable conduit guide brackets to overhead
as shown, Fig. 11a & Fig. 11b. Always use the holes on
the approach side of the lift. HHCS should be in hole
nearest the center of the overhead, Fig. 11b.
E) Route cable up inside column and through the latch
cable guide, Fig. 11a & Fig. 12.
F) Continue routing cable to the left column latch cable
guide, Fig. 11a & Fig. 12, routing the cable through the
left column latch cable guide, Fig. 11a.
Attach Hose Clamps Here
Attach Latch Cable Conduit
Guide Bracket Here. Always
use two holes on approach
side of extension to attach bracket.
3/8"-16NC x 3/4" HHCS
and Flanged Locknut
Latch cable runs
along approach
side of overhead
1/4"-20NC x 1" HHCS
and Flanged Locknut
Cable Guide
runs UNDER
hydraulic hose
15
IMPORTANT Using wire ties provided,
tie off cable guide to column
extension as shown, Fig. 11a. Guide
must be attached in hole closest to
the outside edge of the column on the
NON-APPROACH side.
Latch Cable Sheave
(2) 3/8" Retaining Rings
Shoulder Bolt
(3) 3/8" Flat Washers
Slot Cover
Always put HHCS through hole
closest to center of overhead.
Fig. 11c
Install Latch Handle using a 3/8"
hex jam nut to lock in place. Then
install flat washers and slot cover.
Fig. 11b
