plastic corner
vertical pole z
assembly
Figure 6
horizontal pole
assembly
top brace poles
snap button
upright poles
Figure?
Es I C C
kimo:

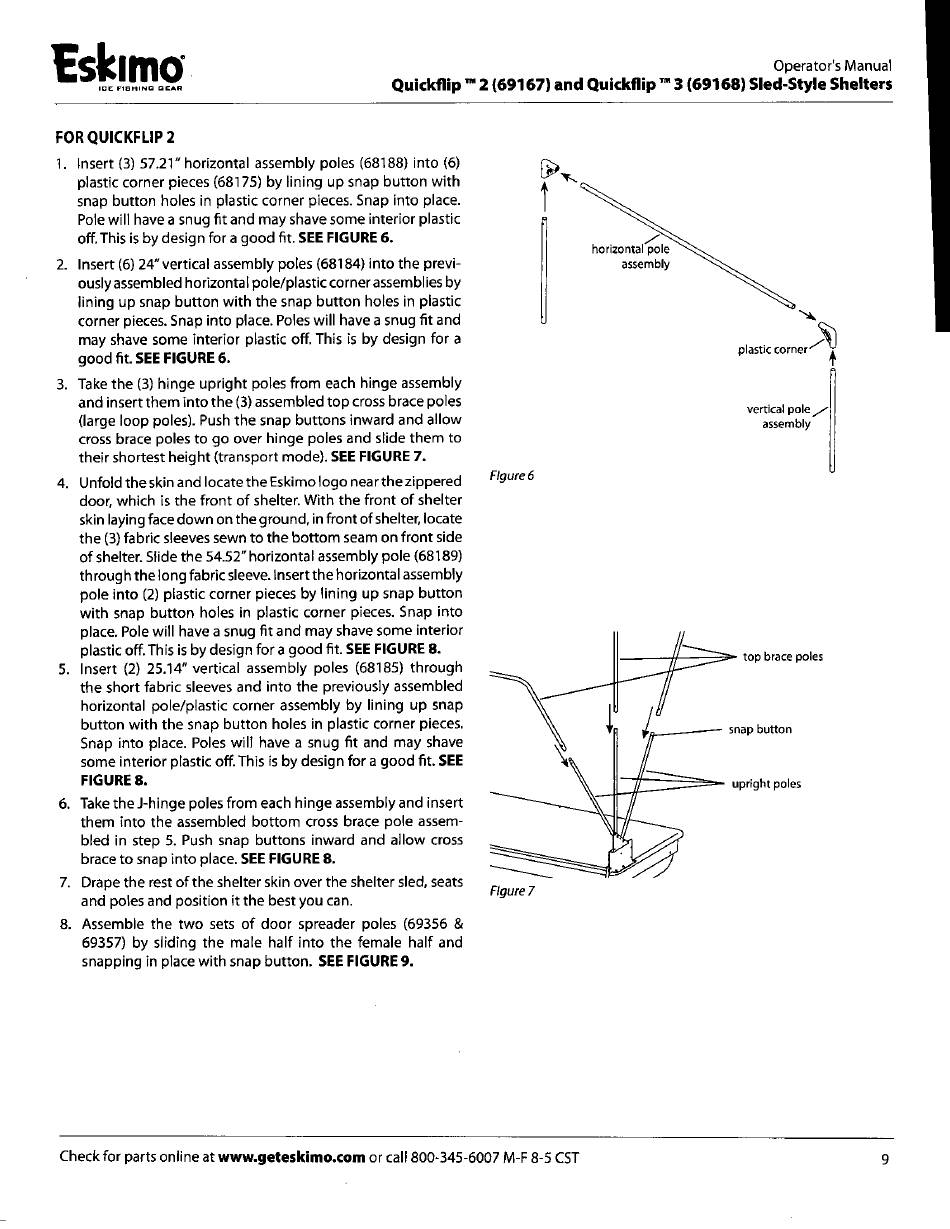

Operator's Manual
Quickflip TM 2 (69167) and Quickflip T"' 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 2
Insert (3) 57.21" horizontal assembly poles (68188) into (6)
plastic corner pieces (68175) by lining up snap button with
snap button holes in plastic corner pieces. Snap into place.
Pole will have a snug fit and may shave some interior plastic
off. This is by design for a good fit. SEE FIGURE 6.
Insert (6) 24" vertical assembly poles (68184) into the previ-
ously assembled horizontal pole/plastic corner assemblies by
lining up snap button with the snap button holes in plastic
corner pieces. Snap into place. Poles will have a snug fit and
may shave some interior plastic off. This is by design for a
good fit. SEE FIGURE 6.
Take the (3) hinge upright poles from each hinge assembly
and insert them into the (3) assembled top cross brace poles
(large loop poles). Push the snap buttons inward and allow
cross brace poles to go over hinge poles and slide them to
their shortest height (transport mode). SEE FIGURE 7.
Unfold the skin and locate the Eskimo logo near the zippered
door, which is the front of shelter. With the front of shelter
skin laying face down on the ground, in front of shelter, locate
the (3) fabric sleeves sewn to the bottom seam on front side
of shelter. Slide the 54.52" horizontal assembly pole (68189)
through the long fabric sleeve. Insert the horizontal assembly
pole into (2) plastic corner pieces by lining up snap button
with snap button holes in plastic corner pieces. Snap into
place. Pole will have a snug fit and may shave some interior
plastic off. This is by design for a good fit. SEE FIGURE 8.
Insert (2) 25.14" vertical assembly poles (68185) through
the short fabric sleeves and into the previously assembled
horizontal pole/plastic corner assembly by lining up snap
button with the snap button holes in plastic corner pieces.
Snap into place. Poles will have a snug fit and may shave
some interior plastic off. This is by design for a good fit. SEE
FIGURE 8.
Take the J-hinge poles from each hinge assembly and insert
them into the assembled bottom cross brace pole assem-
bled in step 5. Push snap buttons inward and allow cross
brace to snap into place. SEE FIGURES.
Drape the rest of the shelter skin over the shelter sled, seats
and poles and position it the best you can.
Assemble the two sets of door spreader poles (69356 &
69357) by sliding the male half into the female half and
snapping in place with snap button. SEE FIGURE 9.
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5 CST
