hinge
etz.,
\--
(2) 1/4"x 3/4" bolts
seat kit mount bracket
(2) 1/4" nuts
(2) 1/4"x 2-1/4" bolts
(4) 1/4"x 1-3/4" bolts
all washers are 1/4"
base tubes
seat kit mount bracket
all nuts are 1/4"
•
seat brace
Figure SA
Eskim o co:

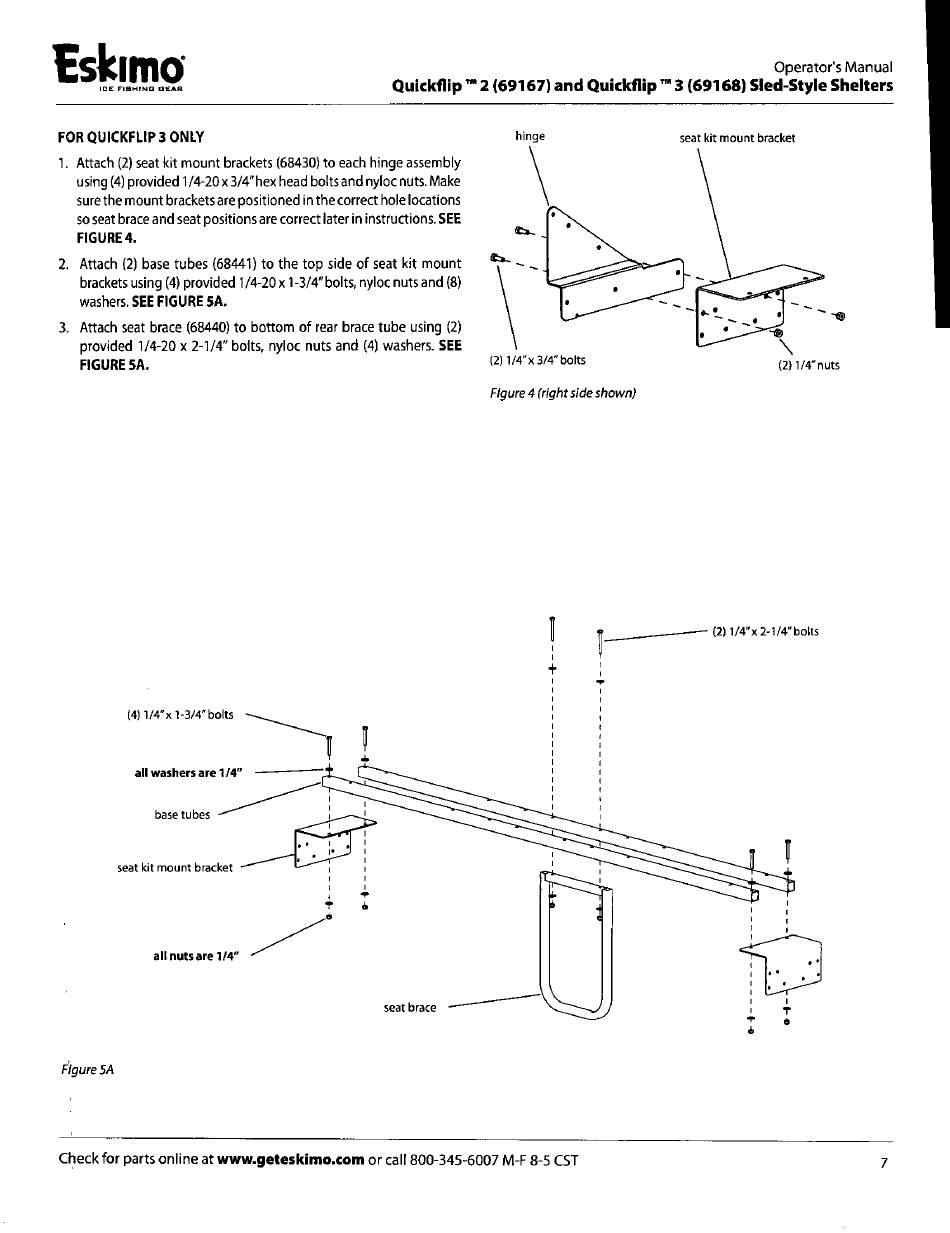

Operators Manual
Quickflip "A 2(69167) and Quickflip TM 3(69168) Sled-Style Shelters
FOR QUICKFLIP 3 ONLY
Attach (2) seat kit mount brackets (68430) to each hinge assembly
using (4) provided 1/4-20 x 3/4" hex head bolts and nyloc nuts. Make
sure the mount brackets are positioned in the correct hole locations
so seat brace and seat positions are correct later in instructions. SEE
FIGURE 4.
Attach (2) base tubes (68441) to the top side of seat kit mount
brackets using (4) provided 1/4-20 x 1-3/4" bolts, nyloc nuts and (8)
washers. SEE FIGURE SA.
Attach seat brace (68440) to bottom of rear brace tube using (2)
provided 1/4-20 x 2-1/4" bolts, nyloc nuts and (4) washers. SEE
FIGURE SA.
Figure 4 (right side shown)
Check for parts online at
www.geteskimoscom
or call 800-345-6007 M-F 8-5 CST
7
