(2)1/4"x 3" bolts
(4)1/4"x 1-3/4" bolts
all washers are 1/4"
(1)1/4"x 2" bolt
I
table
seat tube spacer
seat kit mount bracket
rear base tube
front base tube
all nuts are 1/4"
seat brace tube

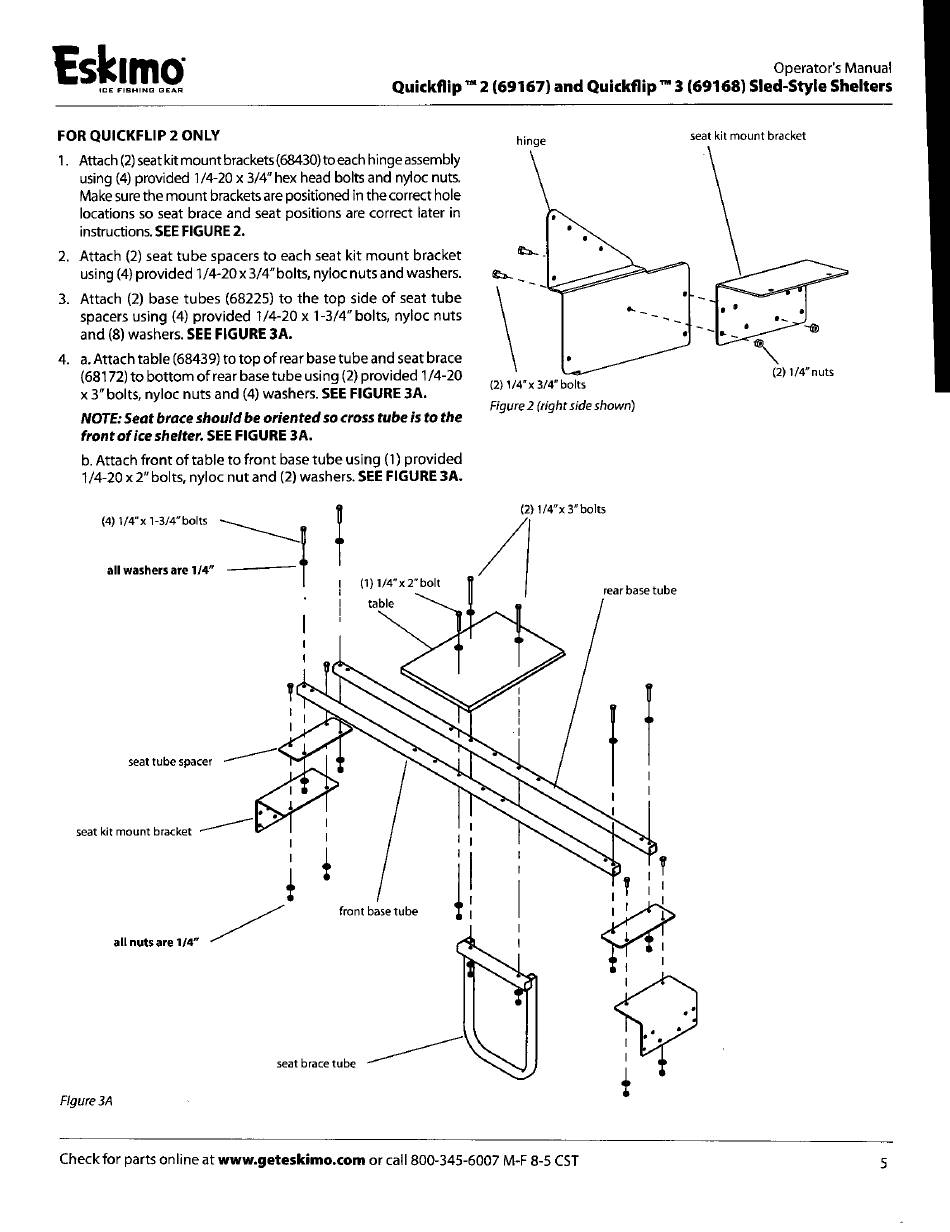

Figure 3A
EsICE kimo
Operator's Manual
Quickflip " 2 (69167) and Quickflip 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 2 ONLY
Attach (2) seat kit mount brackets (68430)to each hinge assembly
using (4) provided 1/4-20 x 3/4" hex head bolts and nyloc nuts.
Make sure the mount brackets are positioned in the correct hole
locations so seat brace and seat positions are correct later in
instructions. SEE FIGURE 2.
Attach (2) seat tube spacers to each seat kit mount bracket
using (4) provided 1/4-20 x 3/4" bolts, nyloc nuts and washers.
ea. _
Attach (2) base tubes (68225) to the top side of seat tube
spacers using (4) provided 1/4-20 x 1-3/4" bolts, nyloc nuts
and (8) washers. SEE FIGURE 3A.
a. Attach table (68439) to top of rear base tube and seat brace
(68172) to bottom of rear base tube using (2) provided 1/4-20
x 3" bolts, nyloc nuts and (4) washers. SEE FIGURE 3A.
NOTE:Seat brace should be oriented so cross tube is to the
(2)1/4"x 3/4" bolts
Figure 2 (right side shown)
front of ice shelter. SEE FIGURE 3A.
b. Attach front of table to front base tube using (1) provided
1/4-20 x 2" bolts, nyloc nut and (2) washers. SEE FIGURE 3A.
hinge
seat kit mount bracket
(2) 1/4" nuts
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5 CST
5
