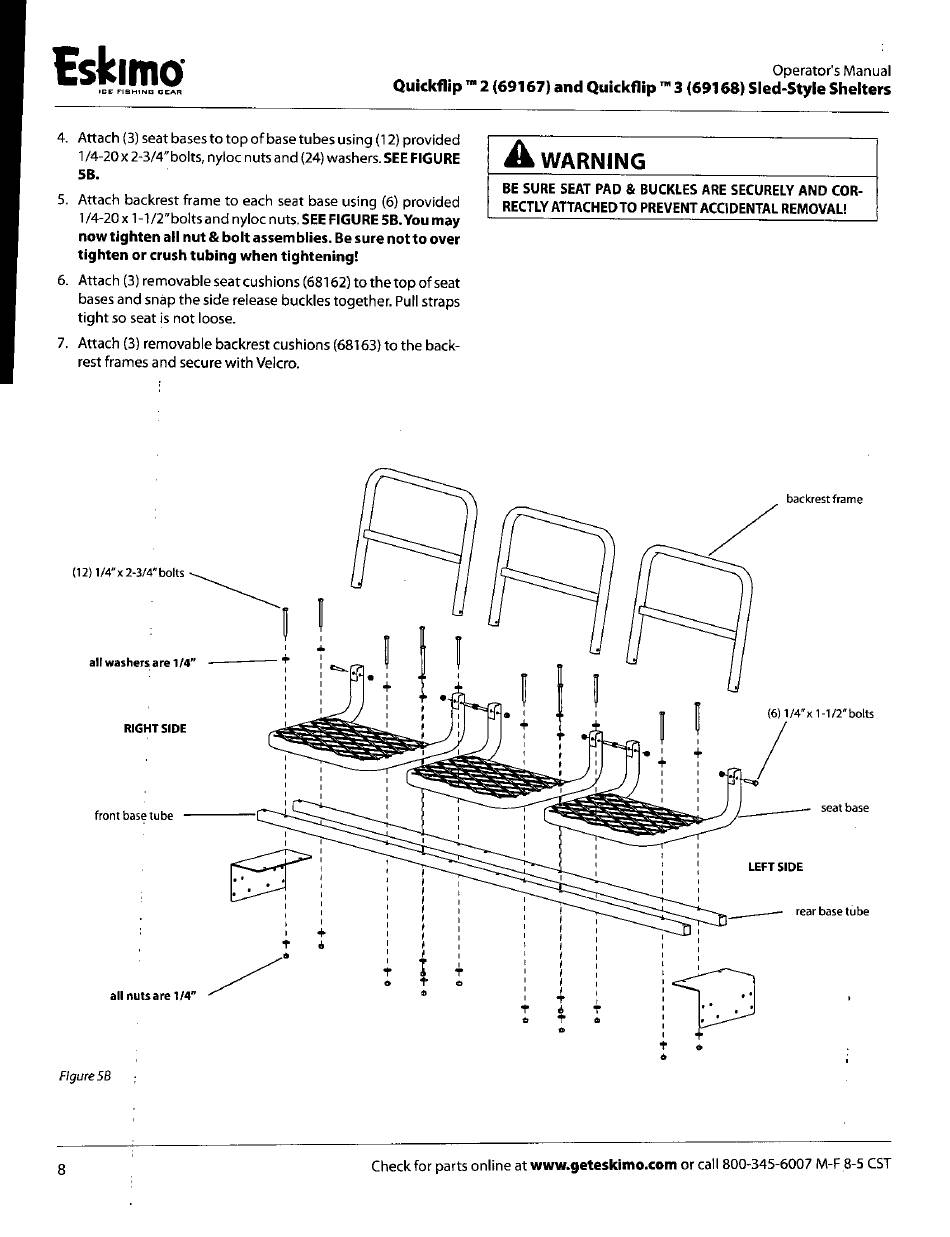

Eskimo QuickFlip 2 Manuel De L'opérateur page 8

front base tube
seat base
all nuts are 1/9"
backrest frame
(12) 1/4"x 2-3/4" bolts
all washers are 1/4"
(6) 1/4"x 1-1 /2" bolts
RIGHT SIDE
LEFT SIDE
rear base tube
Eskimo
Operator's Manual
Quickflip 2(69167) and Quickflip n" 3(69168) Sled-Style Shelters
Attach (3) seat bases to top of base tubes using (12) provided
1/4-20 x 2-3/4" bolts, nyloc nuts and (24) washers. SEE FIGURE
SB.
Attach backrest frame to each seat base using (6) provided
1/4-20 x 1-1/2"bolts and nyloc nuts. SEE FIGURE 5B.You may
now tighten all nut & bolt assemblies. Be sure not to over
tighten or crush tubing when tightening!
Attach (3) removable seat cushions (68162) to the top of seat
bases and snap the side release buckles together. Pull straps
tight so seat is not loose.
Attach (3) removable backrest cushions (68163) to the back-
rest frames and secure with Velcro.
A
WARNING
BE SURE SEAT PAD & BUCKLES ARE SECURELY AND COR-
RECTLY ATTACHED TO PREVENT ACCIDENTAL REMOVAL!
Figure 58
