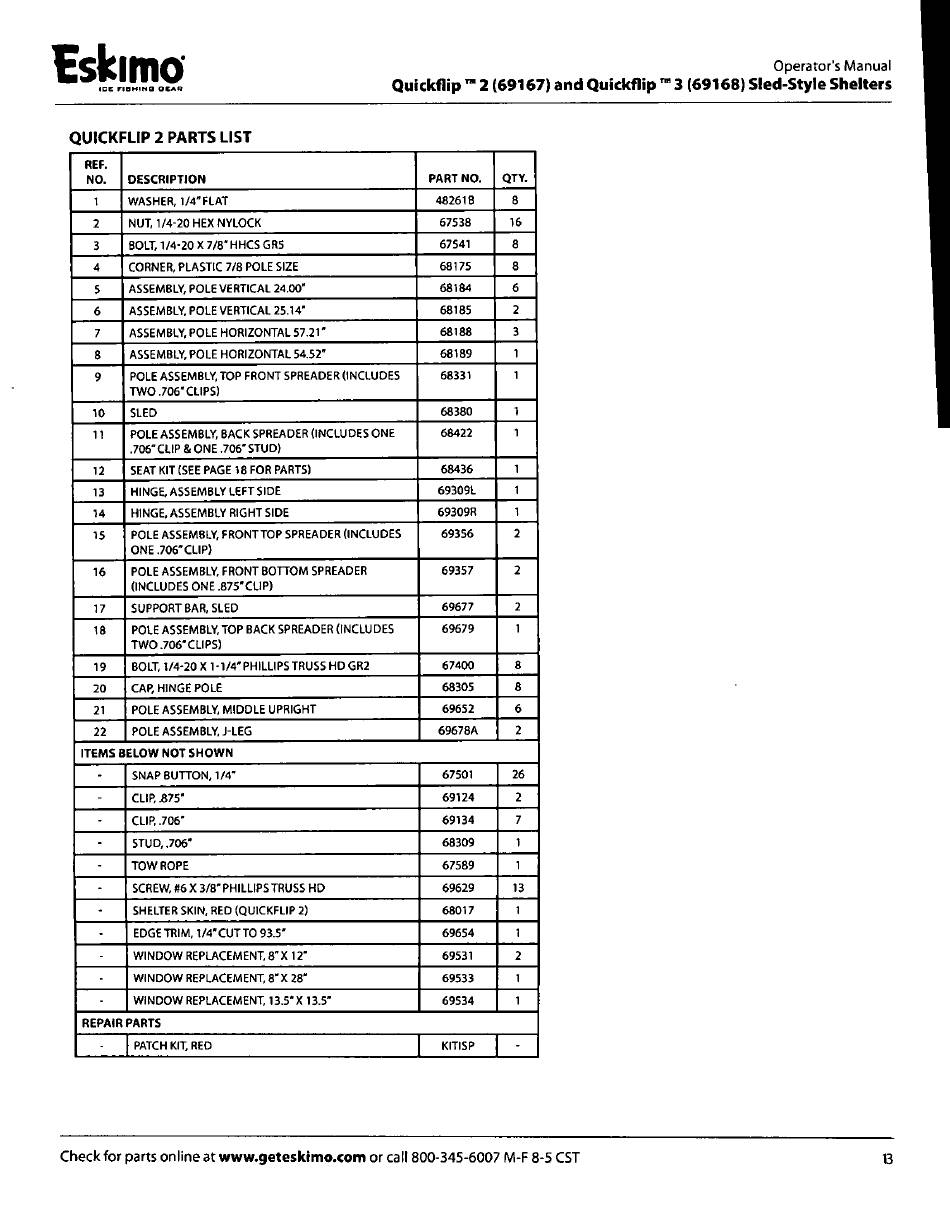

QUICKFLIP 2 PARTS LIST
REF.
NO. DESCRIPTION
PART NO. QTY.
1 WASHER, 1/4" FLAT
482618 8
2 NUT, 1/4-20 HEX NYLOCK
67538 16
3
BOLT, 1/4-20 X 7/8" HHCS GAS
67541 8
4 CORNER, PLASTIC 7/8 POLE SIZE
68175 8
5 ASSEMBLY, POLE VERTICAL 24.00"
68184 6
6
ASSEMBLY, POLE VERTICAL 25.14" 68185
2
7
ASSEMBLY, POLE HORIZONTAL 57.21" 68188
3
8 ASSEMBLY, POLE HORIZONTAL 54.52"
68189 1
9 POLE ASSEMBLY, TOP FRONT SPREADER (INCLUDES
TWO .706' CLIPS)
68331
1
10
SLED
68380
11 POLE ASSEMBLY, BACK SPREADER (INCLUDES ONE
.706"CLIP & ONE .706 -STUD)
68422
1
12 SEAT KIT (SEE PAGE 18 FOR PARTS)
68436
1
13
HINGE, ASSEMBLY LEFT SIDE
693091
1
14
HINGE, ASSEMBLY RIGHT SIDE 69309R
1
15
POLE ASSEMBLY, FRONT TOP SPREADER (INCLUDES
ONE .706' CLIP)
69356 2
16 POLE ASSEMBLY, FRONT BOTTOM SPREADER
(INCLUDES ONE .875" CLIP)
69357 2
17 SUPPORT BAR, SLED
69677
2
18
POLE ASSEMBLY, TOP BACK SPREADER (INCLUDES
TWO .706-CLIPS)
69679 1
19
BOLT, 1/4-20 X 1-1/4"PHILLIPS TRUSS HD GR2
67400 8
20 CAP, HINGE POLE
68305
8
21
POLE ASSEMBLY, MIDDLE UPRIGHT
69652 6
22
POLE ASSEMBLY, J-LEG
69678A 2
ITEMS BELOW NOT SHOWN
SNAP BUTTON, 1/4'
67501 26
CLIP, .875"
69124 2
CLIP, .706' 69134
7
- STUD, .706"
68309 1
TOW ROPE 67589 1
SCREW, #6 X 3/8" PHILLIPS TRUSS HD 69629
13
SHELTER SKIN, RED (QUICKFLIP 2) 68017 1
- EDGE TRIM, 1/4" CUT TO 93.5
69654 1
WINDOW REPLACEMENT, 8" X 12- 69531 2
WINDOW REPLACEMENT, 8' X 28' 69533 1
-
WINDOW REPLACEMENT, 13.5'X 13.5" 69534
1
REPAIR PARTS
PATCH
krr,
RED
KITISP
