(8) 1/4"x 2-3/4' bolts
all washers are 1/4"
(4) 1/4"x 1-1/2" bolts
RIGHT SIDE
base tubes
seat base r
backrest frame
LEFT SIDE
all nuts are 1/9"
Eskimo GEAR
Operator's Manual
Quickflip T's 2(69167) and Quickflip T"' 3(69168) Sled-Style Shelters

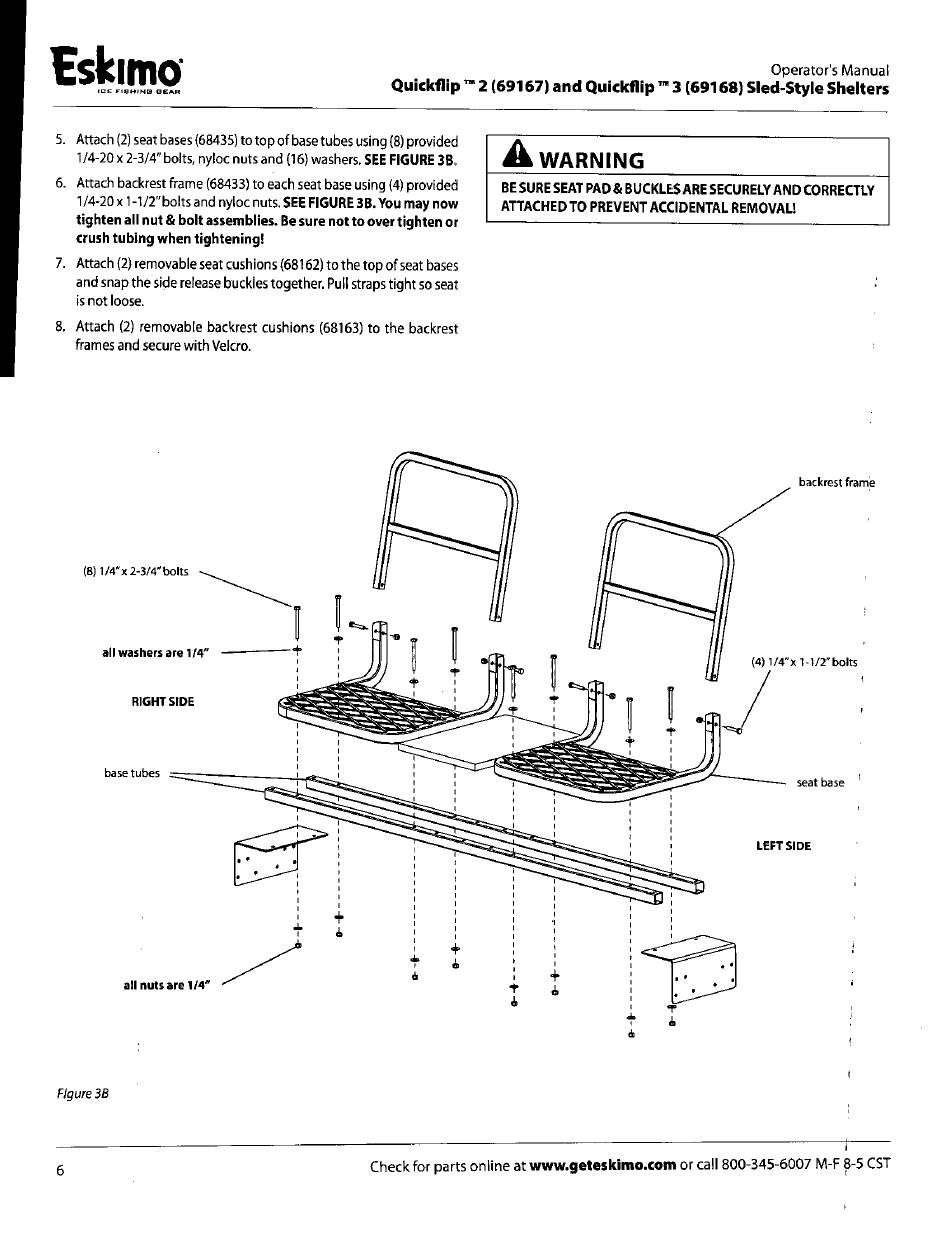

Attach (2) seat bases (68435) to top of base tubes using (8) provided
1/4-20 x 2-3/4" bolts, nyloc nuts and (16) washers. SEE FIGURE 3B.
Attach backrest frame (68433) to each seat base using (4) provided
1/4-20 x 1-1/2" bolts and nyloc nuts. SEE FIGURE 3B. You may now
tighten all nut & bolt assemblies. Be sure not to over tighten or
crush tubing when tightening!
Attach (2) removable seat cushions (68162) to the top of seat bases
and snap the side release buckles together. Pull straps tight so seat
is not loose.
Attach (2) removable backrest cushions (68163) to the backrest
frames and secure with Velcro.
A
WARNING
BE SURE SEAT PAD& BUCKLES ARE SECURELY AND CORRECTLY
ATTACHED TO PREVENT ACCIDENTAL REMOVAL!
Figure 38
Check for parts online at www.geteskimoscom or call 800-345-6007 M-F
CST
