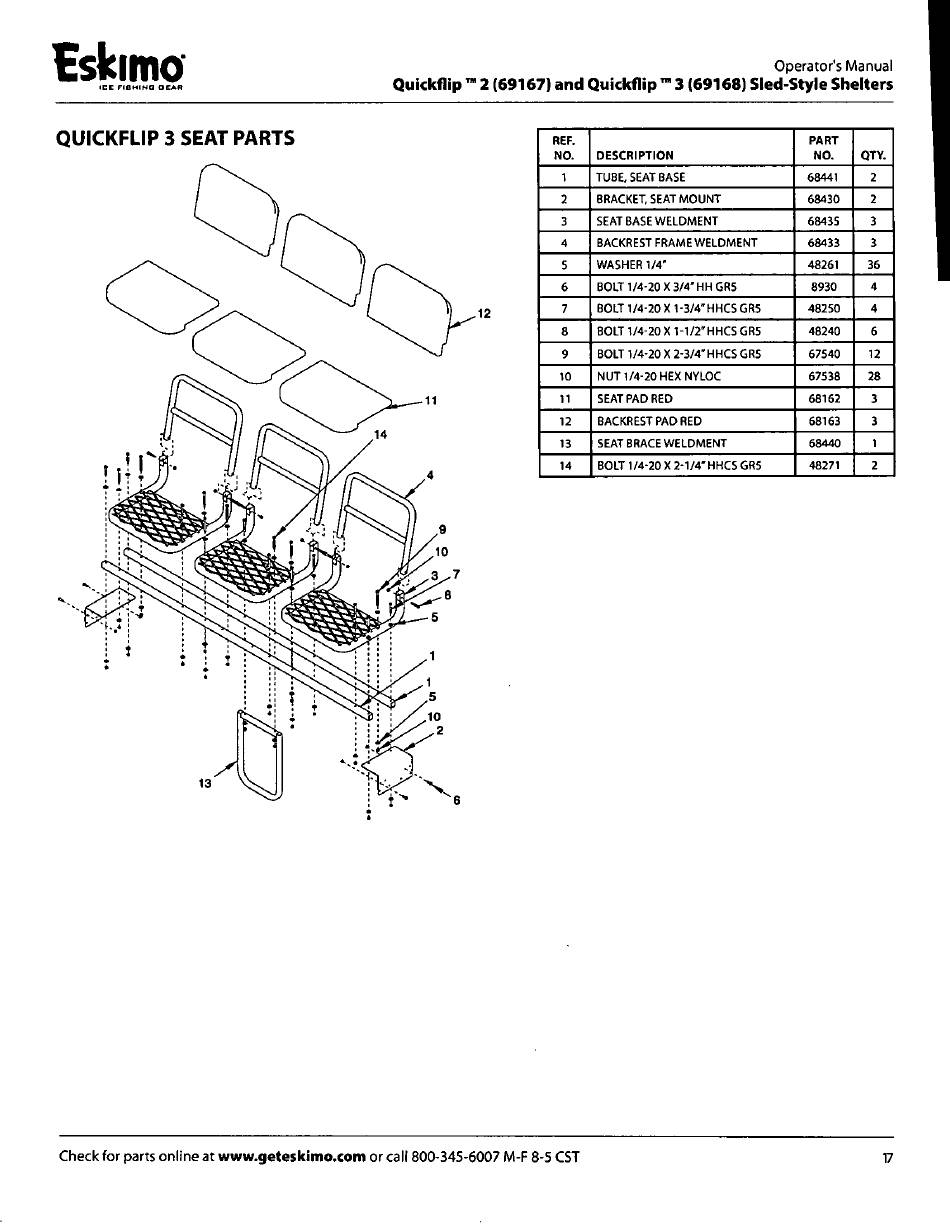

QUICKFLIP 3 SEAT PARTS
REF.
NO. DESCRIPTION
PART
NO. QTY.
1 TUBE, SEAT BASE
68441
2
2 BRACKET, SEAT MOUNT 68430 2
3 SEAT BASE WELDMENT 68435 3
4 BACKREST FRAME WELDMENT 68433 3
5
WASHER 1/4' 48261 36
6 BOLT 1/4-20 X 3/4' HH GR5 8930 4
7 BOLT 1 /4-20 X 1-3/4" HHCS GR5 48250 4
8 BOLT 1/4-20 X 1-1/2° HHCS GR5 48240 6
9 BOLT 1/4-20 X 2-3/4' HI-CS GR5 67540 12
10 NUT 1/4-20 HEX NYLOC 67538 28
11 SEAT PAD RED 68162 3
12 BACKREST PAD RED 68163 3
13 SEAT BRACE WELDMENT 68440
1
14 BOLT 1/4-20 X 2-1/4" HHCS GR5
48271 2
12
EskiSHINO
mo
OCAR
Operator's Manual
Quickflip " 2(69167) and Quicktlip ' 3 (69168) Sled-Style Shelters
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5 CST
