Operator's Manual
Quickflip in 2(69167) and Quickflip 3(69168) Sled-Style Shelters

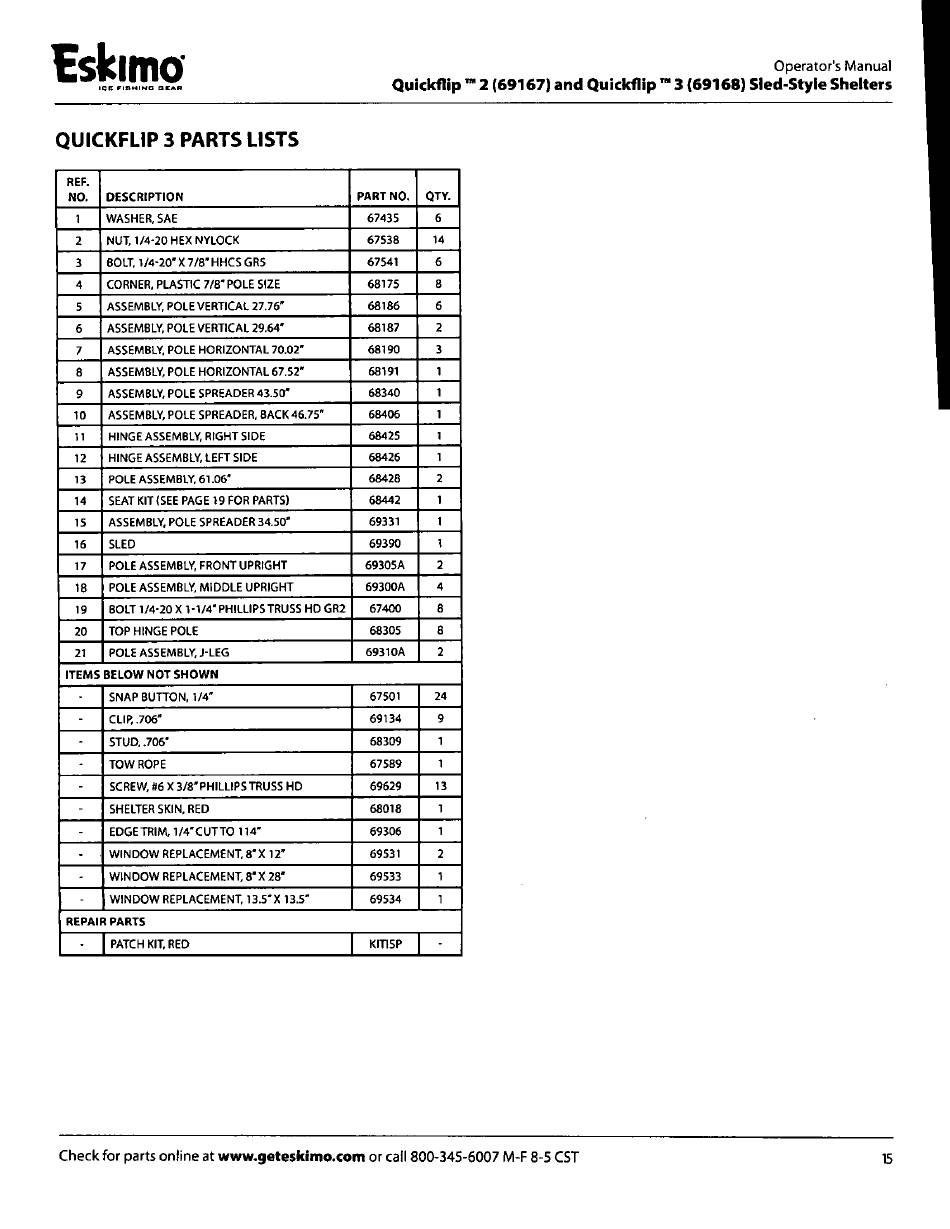

QUICKFLIP 3 PARTS LISTS
REF.
NO.
DESCRIPTION PART NO. QTY.
1 WASHER, SAE
67435 6
2 NUT, 1/4-20 HEX NYLOCK
67538
14
3
BOLT, 1/4-20' X 7/8" HHCS GR5 67541 6
4 CORNER, PLASTIC 7/8' POLE SIZE
68175 8
5
ASSEMBLY, POLE VERTICAL 27.76" 68186 6
6
ASSEMBLY, POLE VERTICAL 29.64' 68187 2
7 ASSEMBLY, POLE HORIZONTAL 70.02"
68190 3
8 ASSEMBLY, POLE HORIZONTAL 67.52'
68191 1
9
ASSEMBLY, POLE SPREADER 43.50" 68340
1
10 ASSEMBLY, POLE SPREADER, BACK 46.75"
68406 1
11 HINGE ASSEMBLY, RIGHT SIDE 68425
1
12 HINGE ASSEMBLY, LEFT SIDE
68426
1
13 POLE ASSEMBLY, 61.06"
68428 2
14 SEAT KIT (SEE PAGE 19 FOR PARTS)
68442
1
15 ASSEMBLY, POLE SPREADER 34.50" 69331
1
16 SLED 69390
1
17 POLE ASSEMBLY, FRONT UPRIGHT
69305A 2
18
POLE ASSEMBLY, MIDDLE UPRIGHT
69300A 4
19 BOLT 1/4-20 X 1-1/4" PHILLIPS TRUSS HO GR2
67400 8
20
TOP HINGE POLE 68305
8
21 POLE ASSEMBLY, J-LEG
69310A 2
ITEMS BELOW NOT SHOWN
- SNAP BUTTON, 1/4"
67501 24
CLIP, .706" 69134
9
- STUD, .706'
68309
1
TOW ROPE
67589 1
SCREW, 46 X 3/8' PHILLIPS TRUSS HD 69629 13
SHELTER SKIN, RED 68018
1
EDGE TRIM, 1/4"CUTTO 114" 69306 1
- WINDOW REPLACEMENT, 8" X 12" 69531 2
WINDOW REPLACEMENT, 8' X 28' 69533
1
WINDOW REPLACEMENT, 13.5X 13.5" 69534 1
REPAIR PARTS
- PATCH KIT, RED KITISP
