Operator's Manual
Quickflip " 2(69167) and Quickflip 3 (69168) Sled-Style Shelters
10

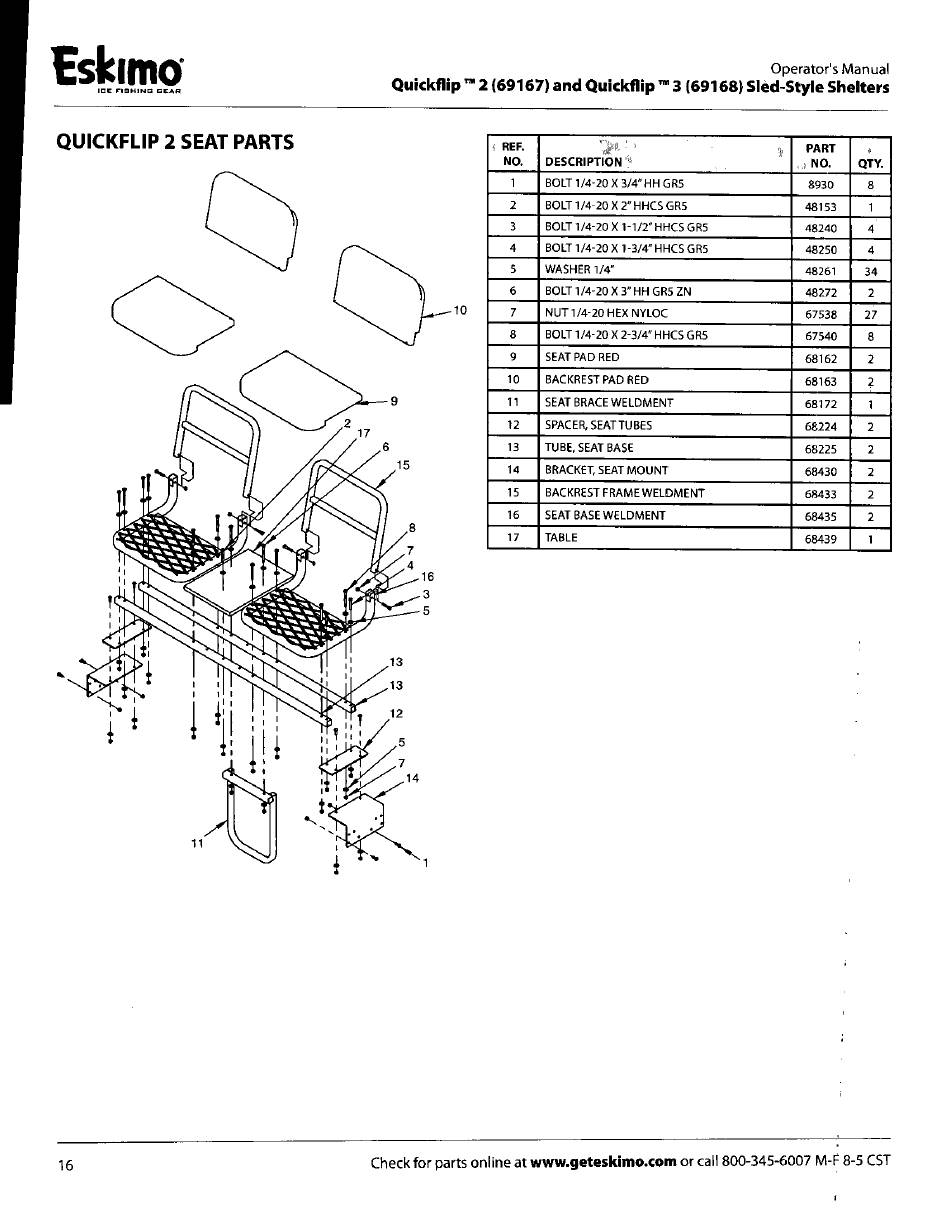

QUICKFLIP 2 SEAT PARTS
-' REF.
NO.
rill '
DESCRIPTION ' 1
PART
, NO.
a
QTY.
1 BOLT 1/4-20 X 3/4" HH GR5
8930 8
2 BOLT 1/4-20 X 2"HHCS GR5
48153 1
3
BOLT 1/4-20 X 1-1/2" HHCS GR5
48240
4
BOLT 1/4-20 X 1-3/4" HHCS GR5
48250 4
5
WASHER 1/4"
48261 34
6
BOLT 1/4-20 X 3" HH GR5 ZN
48272 2
7
NUT 1/4-20 HEX NYLOC
67538 27
8 BOLT 1/4-20 X 2-3/4" HHCS GR5
67540
8
9
SEAT PAD RED
68162
2
10
BACKREST PAD RED
68163
2
11
SEAT BRACE WELDMENT
68172
1
12
SPACER, SEAT TUBES
68224 2
13
TUBE, SEAT BASE
68225 2
14 BRACKET, SEAT MOUNT
68430
2
15 BACKREST FRAME WELDMENT
68433
2
16 SEAT BASE WELDMENT
68435 2
17
TABLE
68439 1
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5 CST
