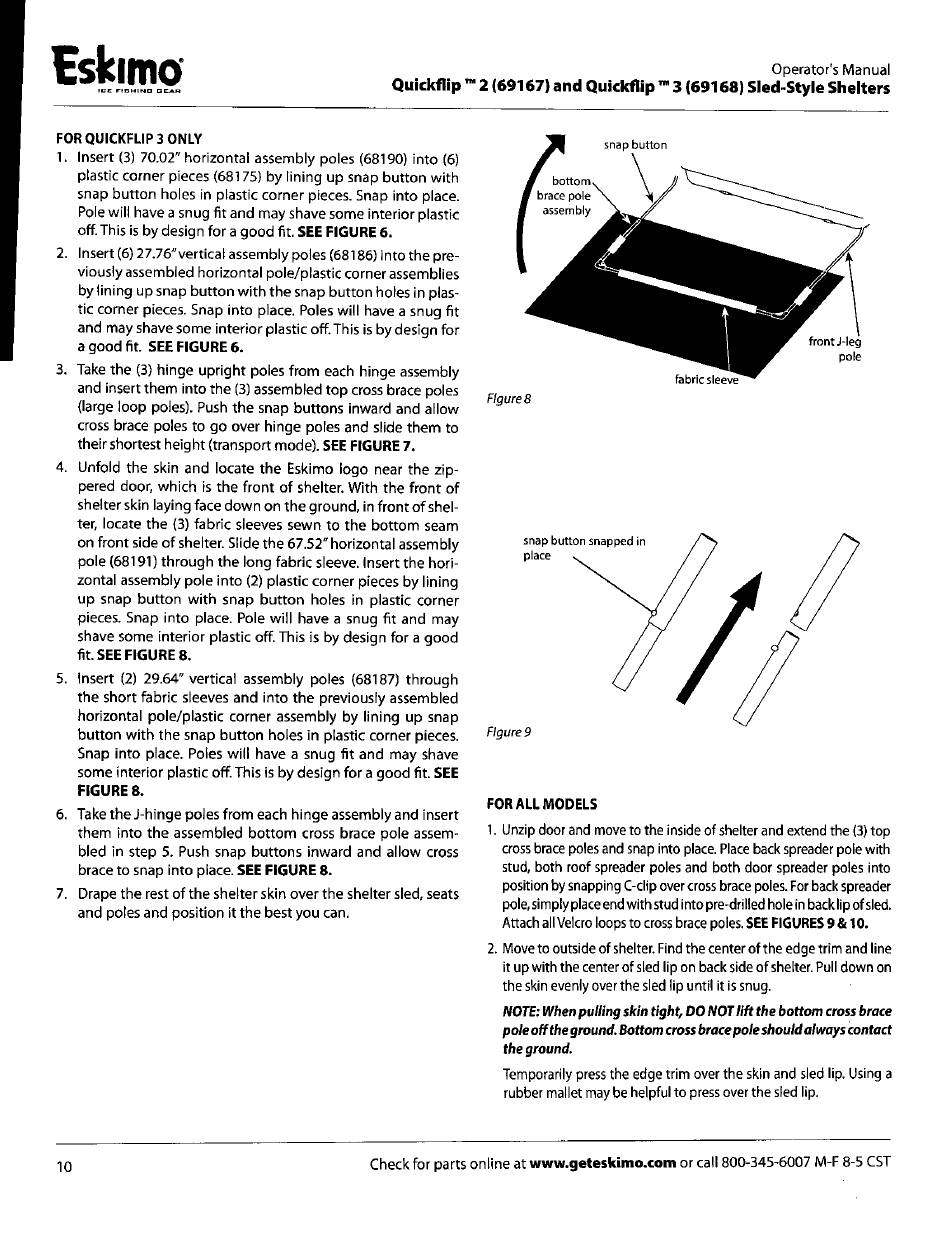

Operators Manual
Quickflip "" 2 (69167) and Quickflip "" 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 3 ONLY
Insert (3) 70.02" horizontal assembly poles (68190) into (6)
plastic corner pieces (68175) by lining up snap button with
snap button holes in plastic corner pieces. Snap into place.
Pole will have a snug fit and may shave some interior plastic
off. This is by design for a good fit. SEE FIGURE 6.
Insert (6) 27.76"vertica I assembly poles (68186) into the pre-
viously assembled horizontal pole/plastic corner assemblies
by lining up snap button with the snap button holes in plas-
tic corner pieces. Snap into place. Poles will have a snug fit
and may shave some interior plastic off. This is by design for
a good fit. SEE FIGURE 6.
Take the (3) hinge upright poles from each hinge assembly
and insert them into the (3) assembled top cross brace poles
(large loop poles). Push the snap buttons inward and allow
cross brace poles to go over hinge poles and slide them to
their shortest height (transport mode). SEE FIGURE 7.
Unfold the skin and locate the Eskimo logo near the zip-
pered door, which is the front of shelter. With the front of
shelter skin laying face down on the ground, in front of shel-
ter, locate the (3) fabric sleeves sewn to the bottom seam
on front side of shelter. Slide the 67.52" horizontal assembly
pole (68191) through the long fabric sleeve. Insert the hori-
zontal assembly pole into (2) plastic corner pieces by lining
up snap button with snap button holes in plastic corner
pieces. Snap into place. Pole will have a snug fit and may
shave some interior plastic off. This is by design for a good
fit. SEE FIGURE 8.
Insert (2) 29.64" vertical assembly poles (68187) through
the short fabric sleeves and into the previously assembled
horizontal pole/plastic corner assembly by lining up snap
button with the snap button holes in plastic corner pieces.
Snap into place. Poles will have a snug fit and may shave
some interior plastic off. This is by design for a good fit. SEE
FIGURE 8.
Take the J-hinge poles from each hinge assembly and insert
them into the assembled bottom cross brace pole assem-
bled in step 5. Push snap buttons inward and allow cross
brace to snap into place. SEE FIGURE 8.
Drape the rest of the shelter skin over the shelter sled, seats
and poles and position it the best you can.
front 1-leg
pole
fabric sleeve
Figure 8
Figure 9
FOR ALL MODELS
Unzip door and move to the inside of shelter and extend the (3) top
cross brace poles and snap into place. Place back spreader pole with
stud, both roof spreader poles and both door spreader poles into
position by snapping C-clip over cross brace poles. For back spreader
pole, simply place end with stud into pre-drilled hole in back lip of sled.
Attach all Velcro loops to cross brace poles. SEE FIGURES 9 & 10.
Move to outside of shelter. Find the center of the edge trim and line
it up with the center of sled lip on back side of shelter. Pull down on
the skin evenly over the sled lip until it is snug.
NOTE: When pulling skin tight, DO NOT lift the bottom cross brace
pole off the ground. Bottom cross brace pole should always contact
the ground.
Temporarily press the edge trim over the skin and sled lip. Using a
rubber mallet may be helpful to press over the sled lip.
