13. FACTORY SETTINGS

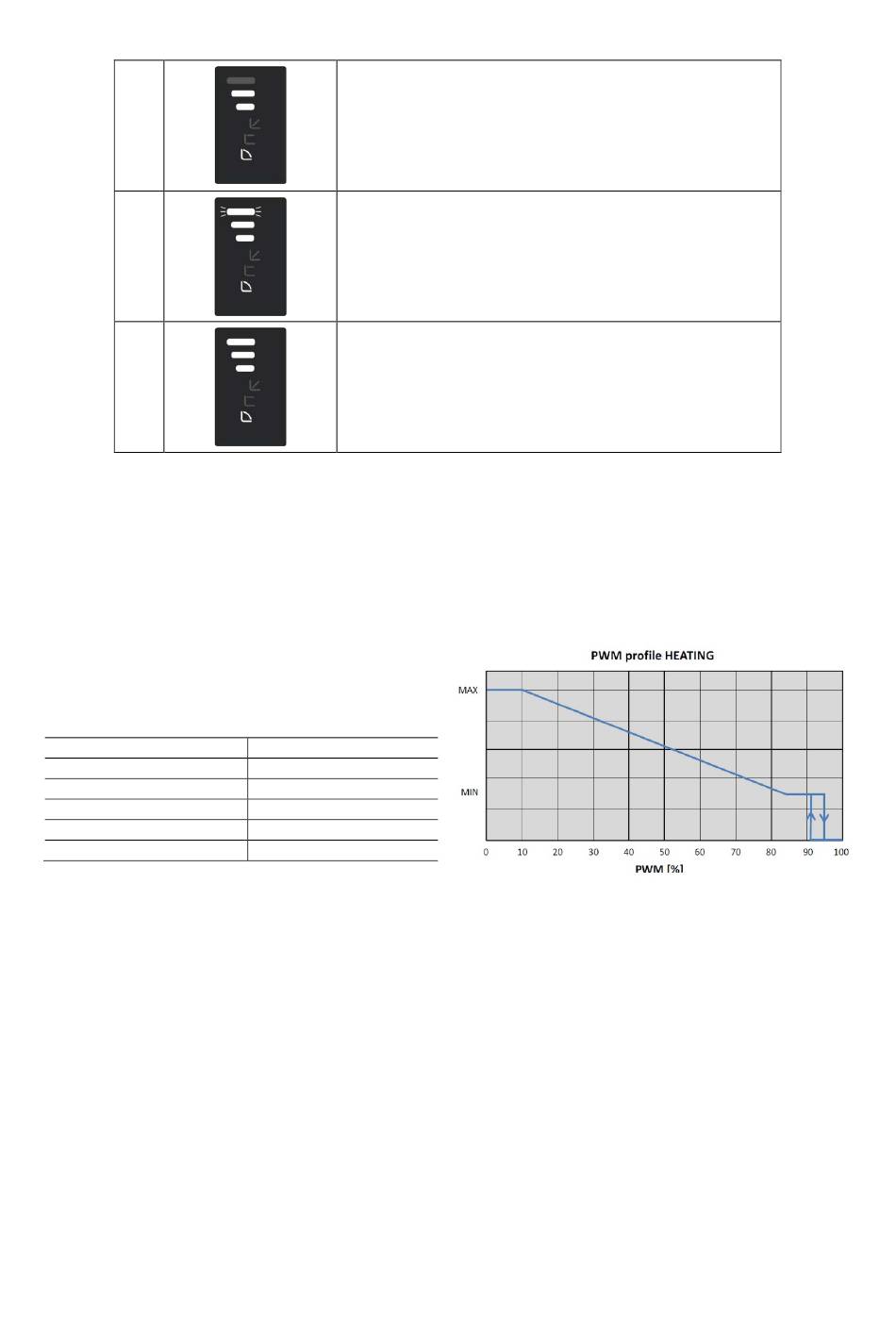

13.1 PWM signal on input
Profile of PWM signal at input of HEATING version.
Inactive level: 0V
Active level from 5V-15V
Minimum active level current: 5mA
Frequency:: 100Hz – 5kHz
Insulation class: Class 2
Class ESD Compliance with IEC 61000-4-2 (ESD)
Working área
Maximum setpoint
Variable setpoint
Minimum setpoint
Hysteresis área
Standby mode
ENGLISH
Table 4: Pump operating modes
Duty cicle PWM
<10%
≥10% / ≤84%
>84% / ≤91%
>91% / ≤95%
>95% / ≤100%
Constant curve, speed IV
Constant curve, speed V
Constant curve, speed VI
PWM Profile HEATING
