On-demand data is outputted on request (and transferred using bytes OD_0 and OD_1
shown above). This includes:
S
Temperature information
S
Sensor information (manufacturer, order code, serial number)
Other results are transferred as IO-Link events, if required. A bit is set in the "CKS" byte
for this purpose. Further information on the warning can be called up as on-demand data.
S
Nominal or operating load range overrun
S
Nominal or operating load temperature overrun
S
Dynamic load (permissible oscillation stress) overrun

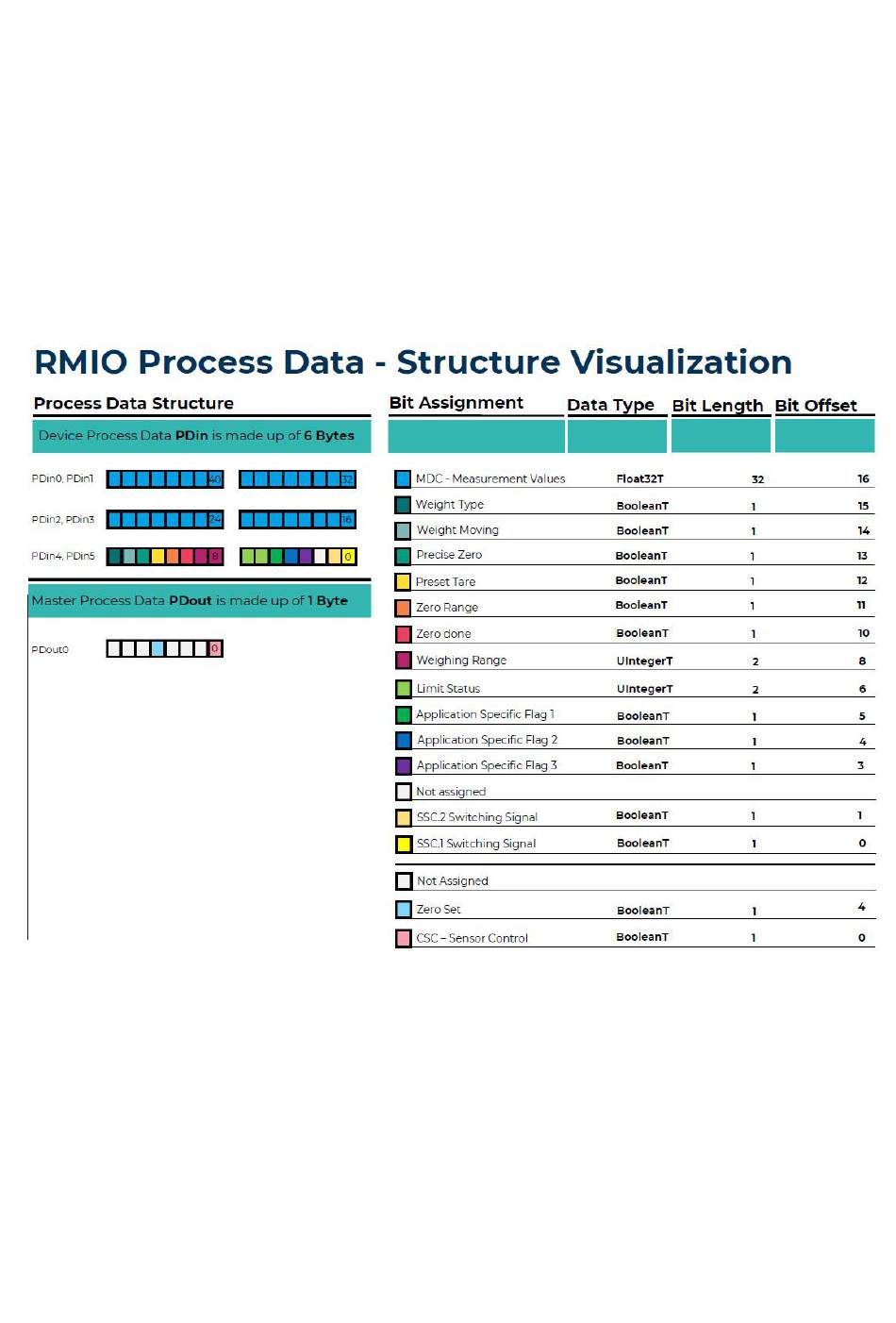

5.2
Process data
The process data is transmitted in accordance with the IO-Link Smart Sensor profile,
2nd edition, version 1.1.
The exact format corresponds to the coding PDI48.MSDCF_1. Measured values are
encoded accordingly as floats, and supplemented with additional status information.
SP4M, SP4Mi
IO-LINK OPTION (SP4Mi)
13
