Drive RV 10 basic/digtal

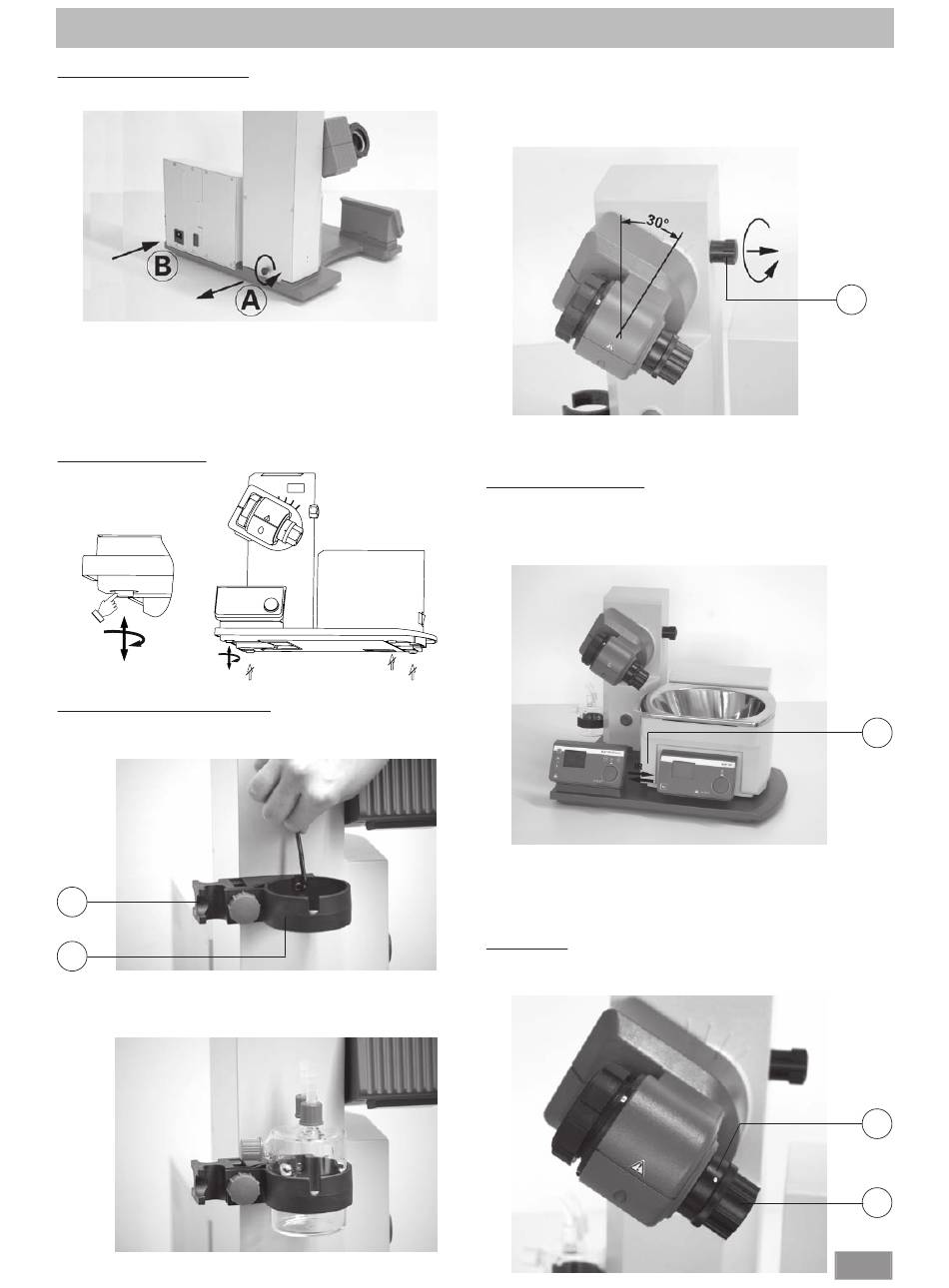

Caution! Loosen transportation lock (Fig. 4a)!
 Hold the lift with your hand and remove the thumb screw on the back
of the appliance (A).
 Once the transportation lock has been removed, the lift moves slowly
to its upper end position. The distance is approx. 140 mm.
 Connect the device to the power supply (B) using the supplied power
cord (B).
Adjustable base (Fig. 4b)
Mounting the Woulff bottle (Fig. 5)
 Fit the hose connecting piece (C) on the left side of the lift.
 Mount the holder (D) onto the hose connecting piece (C).
C
D
 Insert the bottle and attach the supplied hose connectors to the bottle
(Fig. 6).

Setting up

 Remove the clamping device for the angle setting of the rotation drive
on the right side of the lift by rotating the knurled screw counter clock-
wise (by lightly pressing and turning at the same time, the knurled
screw comes out farther).
 Set the drive at an angle of approx. 30° (Fig. 7).
Fig. 4a
 Then secure the rotation drive from being accidentally turned by tigh-
tening the knurled screw in a clockwise direction.
Heating bath HB 10
Caution! Refer to the chapter entitled "Commissioning" in the heating
bath instruction manual!
 Place the heating bath on the stand of the rotation drive and push it
into the left position (Fig. 8).
Fig. 4b
Note: Data is exchanged between the drive unit and the heating bath by
means of an infrared link (F). Please note that reliable communication is
only guaranteed when the infrared beam has clear line-of-sight to the
detector.

Glassware

 Open the locking device of the steam pipe by turning it 60° counter
Fig. 5
clockwise (D), (fig. 9).
Fig. 6
E
Fig. 7
F
Fig. 8
G
H
25
